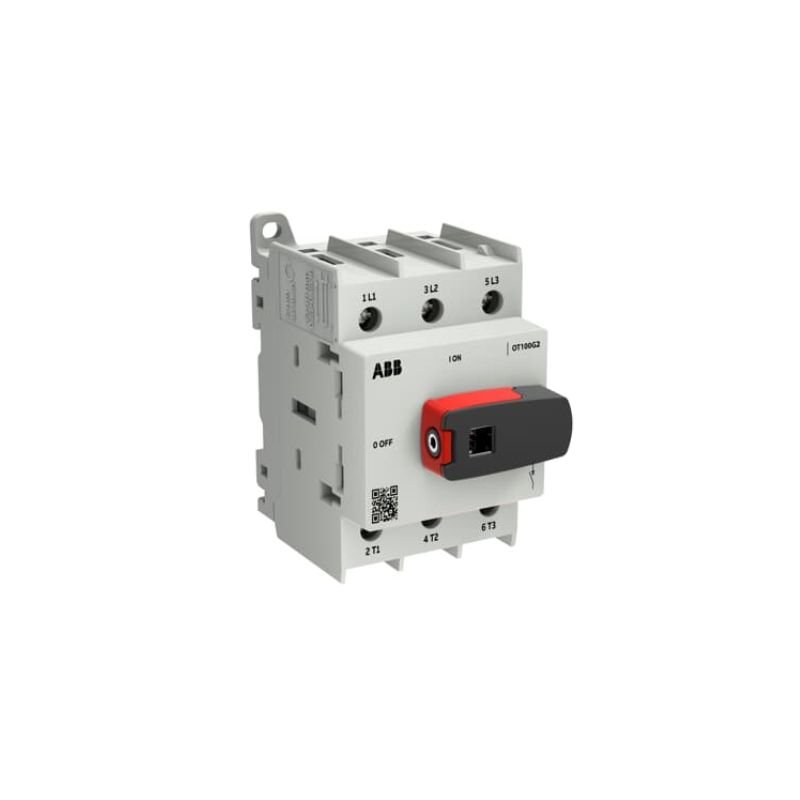

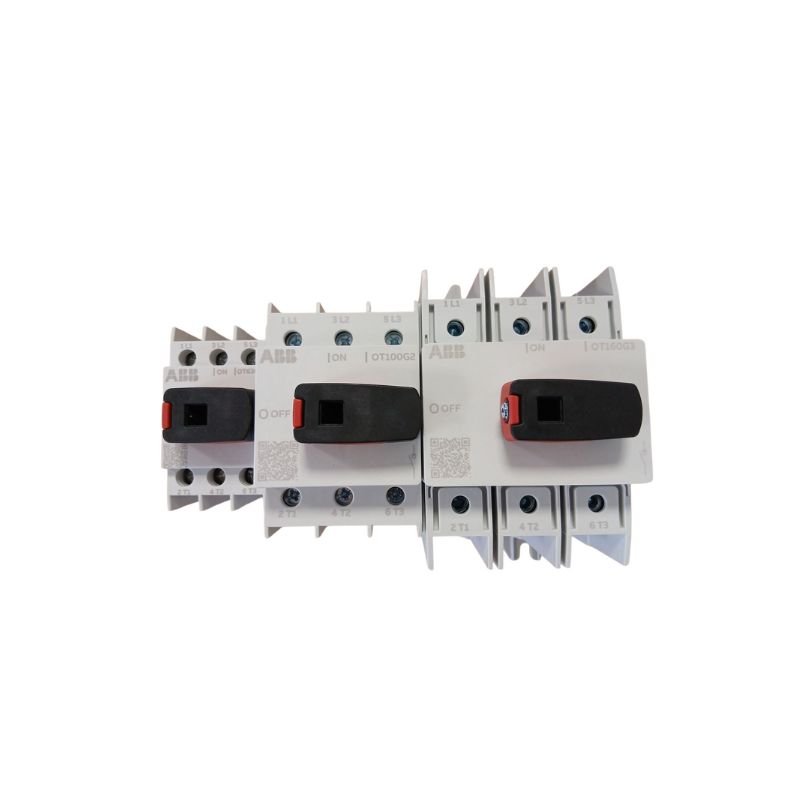

OT100G2-3BS ABB OT Plus Isolator 100A 3 Pole. G2 Frame Size. Screw Terminals IP20 1SCA162547R1001

The OT100G2-3BS from ABB is a 100A three-pole isolator switch disconnector from the OT Plus range, featuring G2 frame size construction with screw terminals and IP20 protection rating.

This ABB isolator switch disconnector provides reliable electrical isolation for industrial and commercial applications, delivering enhanced safety and operational efficiency. The OT Plus range represents ABB's latest generation of compact switching solutions, offering superior performance in a space-saving design. With its 100A current rating and three-pole configuration, this isolator is ideal for controlling and isolating electrical circuits in distribution panels and control systems.

Key Features

• 100A Current Rating: Handles substantial electrical loads up to 100A with 45kW rated power (AC-23A), making it suitable for demanding industrial applications

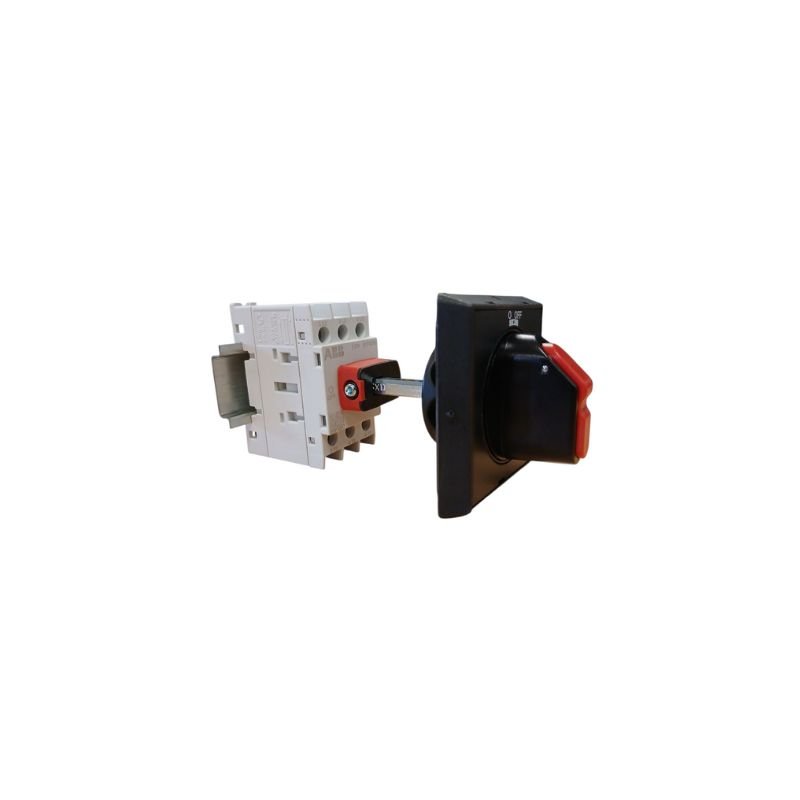

• Padlockable Direct Mounted Handle: Ensures safety compliance with lockout/tagout procedures and offers full compatibility with existing OT shafts and external handles
• Flexible Mounting Options: Base and DIN rail mounting capability provides installation versatility in various panel configurations

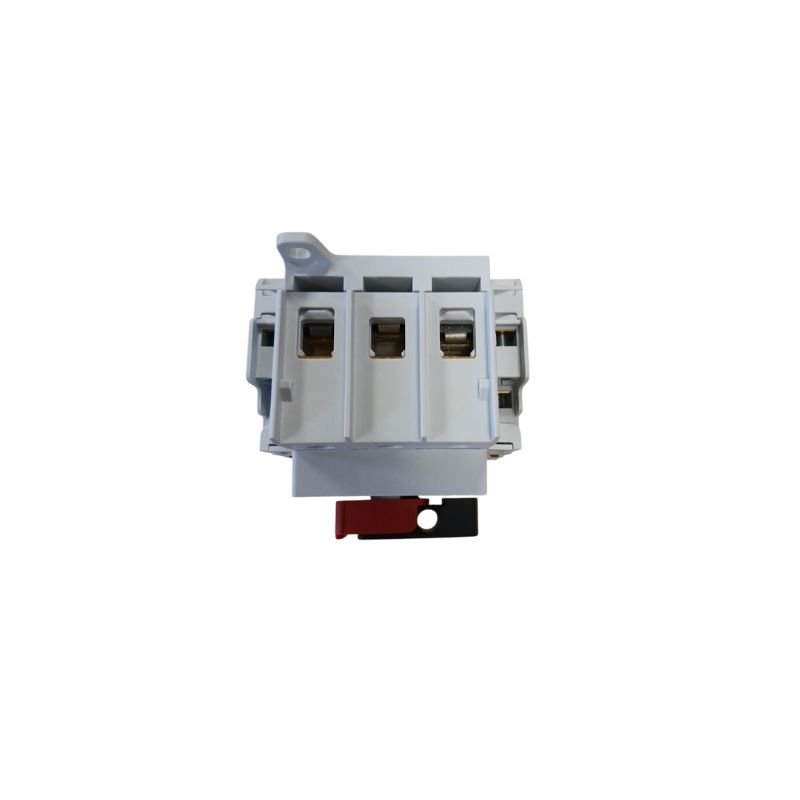

• Comprehensive Cable Compatibility: Accepts flexible copper cables from 1.5-35mm² and solid copper cables 1.5-6mm², accommodating diverse wiring requirements
• Compact G2 Frame: Measures just 91.5 x 52.5 x 73mm, maximising panel space efficiency while maintaining robust performance
• Precise Torque Requirements: 2Nm tightening torque specification ensures optimal electrical connections and prevents over-tightening damage
• Enhanced Protection: IP20 rating protects against finger contact and solid objects larger than 12mm diameter

Applications

The OT100G2-3BS isolator switch disconnector is designed for electrical isolation applications in industrial control panels, distribution boards, and machinery installations. Its three-pole configuration makes it particularly suitable for three-phase motor control circuits, lighting distribution systems, and general power isolation requirements. The compact G2 frame size and dual mounting options make it ideal for space-constrained installations where reliable switching performance is essential. The padlockable handle feature ensures compliance with safety protocols in industrial environments where equipment maintenance requires secure isolation procedures.

Standards and Compliance

This ABB isolator meets IEC 60947-3 international standards for switch-disconnectors and UL 60947-4-1 requirements, ensuring global compatibility and safety compliance. The IP20 protection rating provides appropriate ingress protection for standard electrical enclosure applications. These certifications demonstrate the product's suitability for professional electrical installations requiring verified safety and performance standards.

Manufactured by ABB in Finland. Order code: OT100G2-3BS / 1SCA162547R1001.

Frequently Asked Questions

What cable sizes can I connect to the OT100G2-3BS isolator?

The OT100G2-3BS accepts flexible copper cables ranging from 1.5mm² to 35mm² and solid copper cables from 1.5mm² to 6mm². The screw terminals should be tightened to 2Nm torque for optimal electrical connection and to prevent damage from over-tightening.

Can this isolator be mounted on both DIN rail and base mounting?

Yes, the OT100G2-3BS features dual mounting capability, supporting both base mounting and DIN rail installation. This flexibility allows integration into various panel configurations and existing installations. The compact G2 frame dimensions of 91.5 x 52.5 x 73mm ensure efficient use of panel space regardless of mounting method.

What is the difference between the OT Plus range and previous ABB isolator ranges?

The OT Plus range offers enhanced compatibility with existing OT accessories, including full compatibility with existing OT shafts and external handles. The padlockable direct mounted handle provides improved safety features for lockout/tagout procedures while maintaining the compact design philosophy of previous generations.

What loads can the OT100G2-3BS handle in three-phase applications?

With a 100A current rating and 45kW rated power (AC-23A category), this three-pole isolator can handle substantial three-phase loads including motor circuits, heating systems, and distribution applications. The AC-23A rating specifically indicates its suitability for other loads including resistive and mixed load applications in three-phase systems.

Is the OT100G2-3BS suitable for outdoor installations?

The IP20 protection rating makes this isolator suitable for indoor installations and electrical enclosures but not for direct outdoor exposure. For outdoor applications, the isolator should be housed within an appropriately rated electrical enclosure that provides adequate weather protection and maintains the required ingress protection standards.
