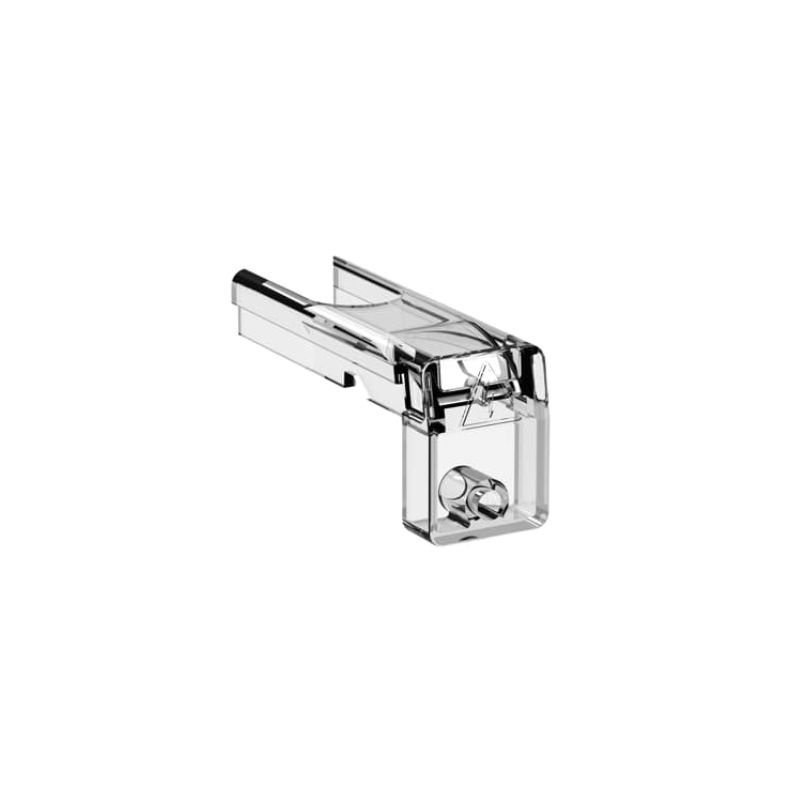

TSG2-1 ABB OT Plus G2 Terminal Shroud. 1 Pole 1SCA162604R1001

The TSG2-1 ABB OT Plus G2 Terminal Shroud is a single-pole protective accessory (1SCA162604R1001) designed to enhance safety and compliance in electrical installations. This compact terminal shroud provides essential protection for live terminals in switching applications, helping to prevent accidental contact and improve overall system safety.

Part of ABB's OT Plus range, this terminal shroud is specifically engineered to provide reliable protection for electrical terminals in industrial and commercial environments. The G2 design offers improved functionality and installation convenience, making it an essential component for maintaining safe electrical operations.

Key Features

• Single-pole design: Provides focused protection for individual terminals, allowing for flexible installation configurations in various electrical setups
• Compact dimensions: With measurements of 49.5mm height, 16.5mm width, and 22.3mm depth, it fits into tight spaces without compromising on protection
• Lightweight construction: At just 0.01kg gross mass, it adds minimal weight to installations while maintaining robust protection
• OT Plus G2 compatibility: Specifically designed to integrate seamlessly with ABB's OT Plus range, ensuring perfect fit and optimal performance
• Quality manufacturing: Produced in Finland to ABB's exacting standards, ensuring reliable long-term performance in demanding applications
• Easy identification: Clear product coding and EAN barcode (6417019926308) simplifies ordering, inventory management, and installation verification

Applications

The TSG2-1 terminal shroud is primarily used in electrical panel installations where terminal protection is required for safety compliance. It's commonly installed in industrial control panels, distribution boards, and switching equipment where live terminals need to be shielded from accidental contact. This component is particularly valuable in maintenance environments where technicians work on live equipment, providing an additional layer of safety during routine operations and troubleshooting.

Standards and Compliance

As part of ABB's OT Plus range, this terminal shroud meets relevant electrical safety standards for terminal protection accessories. The product carries the appropriate commodity code (8538909999) for electrical apparatus parts and accessories, ensuring proper classification for regulatory and import/export requirements.

Manufactured by ABB in Finland, order code TSG2-1 (alternate code 1SCA162604R1001).

Frequently Asked Questions

What are the exact dimensions of the TSG2-1 terminal shroud?

The TSG2-1 measures 49.5mm in height, 16.5mm in width, and 22.3mm in depth, with a gross mass of just 0.01kg. These compact dimensions make it suitable for installation in space-constrained electrical panels while providing effective terminal protection.

Is the TSG2-1 compatible with other ABB switching devices?

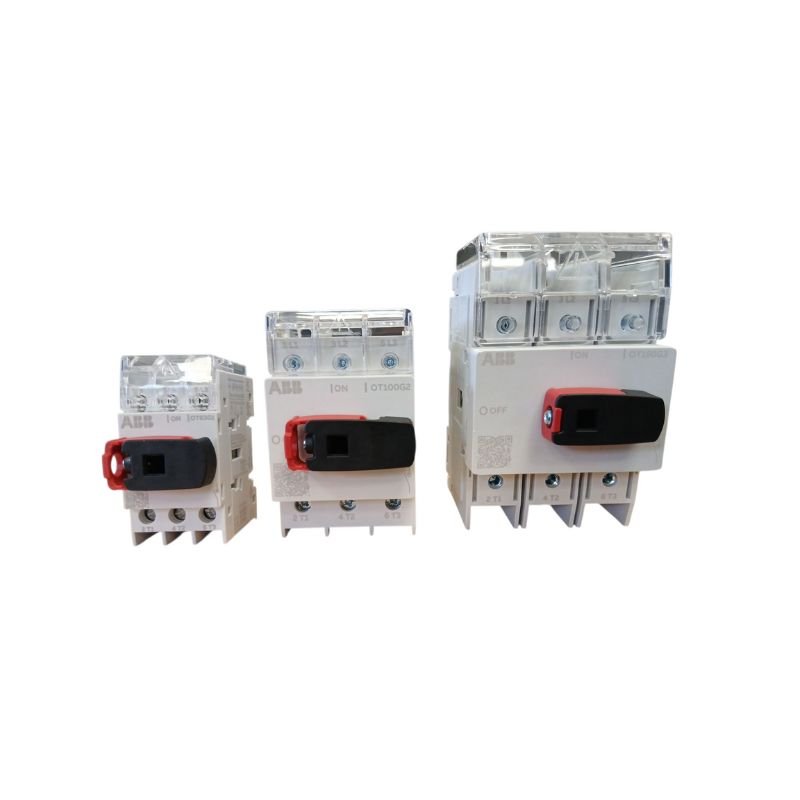

Yes, the TSG2-1 is specifically designed for use with ABB's OT Plus product range. It's engineered as part of the G2 series to ensure perfect compatibility and optimal performance when used with corresponding OT Plus switches and accessories.

Can I use multiple TSG2-1 shrouds for multi-pole applications?

Absolutely. Since the TSG2-1 is a single-pole terminal shroud, you can use multiple units to protect multi-pole configurations. For a three-pole application, you would need three TSG2-1 units, allowing for flexible configuration based on your specific installation requirements.

What is the difference between the product codes TSG2-1 and 1SCA162604R1001?

These are simply different coding systems for the same product. TSG2-1 is the item code commonly used by distributors, while 1SCA162604R1001 is ABB's manufacturer code for the same terminal shroud. Both codes refer to the identical single-pole OT Plus G2 terminal shroud.

What type of electrical installations typically require terminal shrouds like the TSG2-1?

Terminal shrouds are commonly required in industrial control panels, distribution boards, and switching equipment where live terminals need protection from accidental contact. They're particularly important in maintenance environments and installations where electrical safety standards mandate terminal protection to prevent electrical shock hazards.

Where can I buy the ABB TSG2-1?

You can buy the ABB TSG2-1 at CSE Distributors in the UK. As an official ABB distributor with over 50 years of experience, CSE provides genuine ABB products with full warranty support and has earned hundreds of positive customer reviews for their technical expertise and reliable service.
