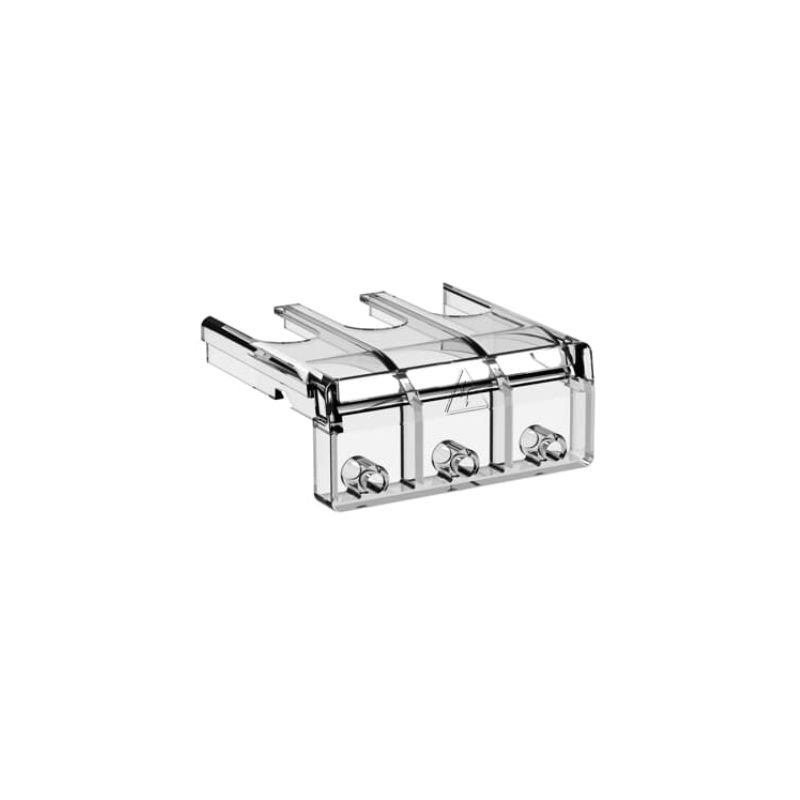

TSG2-3 ABB OT Plus G2 Terminal Shroud. 3 Pole 1SCA162605R1001

The TSG2-3 is an ABB OT Plus G2 terminal shroud designed for 3-pole applications, manufactured by ABB with part number 1SCA162605R1001. This essential safety accessory provides terminal protection for ABB's OT Plus range of switch disconnectors and load break switches.

The ABB TSG2-3 terminal shroud is a critical safety component that provides protection and insulation for exposed terminals on 3-pole OT Plus switching devices. Designed specifically for industrial and commercial electrical installations, this terminal shroud enhances safety by preventing accidental contact with live terminals while maintaining easy access for maintenance and inspection. Its compact design and precise engineering ensure reliable protection without compromising the performance of your switching equipment.

Key Features

• Precise ABB OT Plus Compatibility: Purpose-built for the OT Plus G2 range, ensuring perfect fit and optimal protection for your switching equipment investment.
• 3-Pole Configuration: Specifically designed for three-phase applications, providing comprehensive terminal protection across all poles for enhanced electrical safety.
• Compact Dimensions: Measuring just 51.5mm width × 49.5mm height × 22.3mm depth, the shroud adds minimal bulk while maximising protection in space-constrained installations.
• Ultra-Lightweight Design: At only 0.01kg, this terminal shroud adds negligible weight to your installation while delivering essential safety benefits.
• European Manufacturing Quality: Manufactured in Finland to ABB's exacting standards, ensuring long-term reliability and consistent performance in demanding industrial environments.
• Easy Installation: Designed for straightforward fitting without requiring specialised tools or extensive downtime during installation or maintenance.

Applications

The TSG2-3 terminal shroud is essential for industrial electrical installations where ABB OT Plus G2 switch disconnectors and load break switches are deployed. Common applications include motor control centres, distribution panels, and industrial control systems where terminal protection is critical for operator safety and regulatory compliance. The shroud is particularly valuable in installations where maintenance personnel require regular access to switching equipment, providing the necessary safety barrier while maintaining operational accessibility.

Standards and Compliance

As part of ABB's OT Plus product family, the TSG2-3 terminal shroud is designed to complement the safety and performance standards of the switching devices it protects. The component carries the EAN code 6417019926315 and falls under commodity code 8538909999, ensuring proper classification for regulatory and import/export requirements.

Manufactured by ABB in Finland, order using part number TSG2-3 or ABB code 1SCA162605R1001.

Frequently Asked Questions

What ABB OT Plus switches is the TSG2-3 terminal shroud compatible with?

The TSG2-3 is specifically designed for ABB's OT Plus G2 range of 3-pole switch disconnectors and load break switches. It provides precise fit and optimal terminal protection for these switching devices, ensuring compatibility across the G2 product family while maintaining the equipment's operational characteristics and safety standards.

What are the exact dimensions of the TSG2-3 terminal shroud?

The TSG2-3 measures 51.5mm in width, 49.5mm in height, and 22.3mm in depth, with a net weight of just 0.01kg. These compact dimensions ensure the shroud provides essential terminal protection without adding significant bulk to your electrical installation, making it suitable for space-constrained applications.

Is the TSG2-3 suitable for outdoor or harsh environment installations?

The TSG2-3 is designed to complement the environmental capabilities of ABB OT Plus G2 switches, but specific environmental ratings depend on the overall enclosure system. The shroud itself is manufactured in Finland to ABB's quality standards, but for outdoor or harsh environment applications, consult the complete system specifications including the switch and enclosure ratings.

Can the TSG2-3 be retrofitted to existing OT Plus installations?

Yes, the TSG2-3 can typically be added to existing ABB OT Plus G2 installations as a safety upgrade. The lightweight design (0.01kg) and precise dimensions mean it can usually be installed without requiring changes to existing panel layouts or mounting arrangements, though proper isolation procedures must be followed during installation.

Where can I buy the ABB TSG2-3 Terminal Shroud?

The ABB TSG2-3 Terminal Shroud is available from CSE Distributors in the UK. With family values and national reach, CSE is still run by the same family after more than 50 years, and we treat every customer, large or small, as a long-term partner. CSE is an official ABB distributor in the UK providing genuine ABB products with full warranty support. CSE Distributors has hundreds of positive reviews and is a go-to technical stockist for control panel builders and OEMs involved in the electrical automation and controls industry across the UK.

What's the difference between the TSG2-3 and other OT Plus terminal shrouds?

The TSG2-3 is specifically configured for 3-pole applications within the OT Plus G2 range. The "3" designation indicates it's designed for three-phase installations, while other variants in the TSG2 series may be available for different pole configurations. Each variant is precisely engineered for its specific application to ensure optimal fit and protection.
