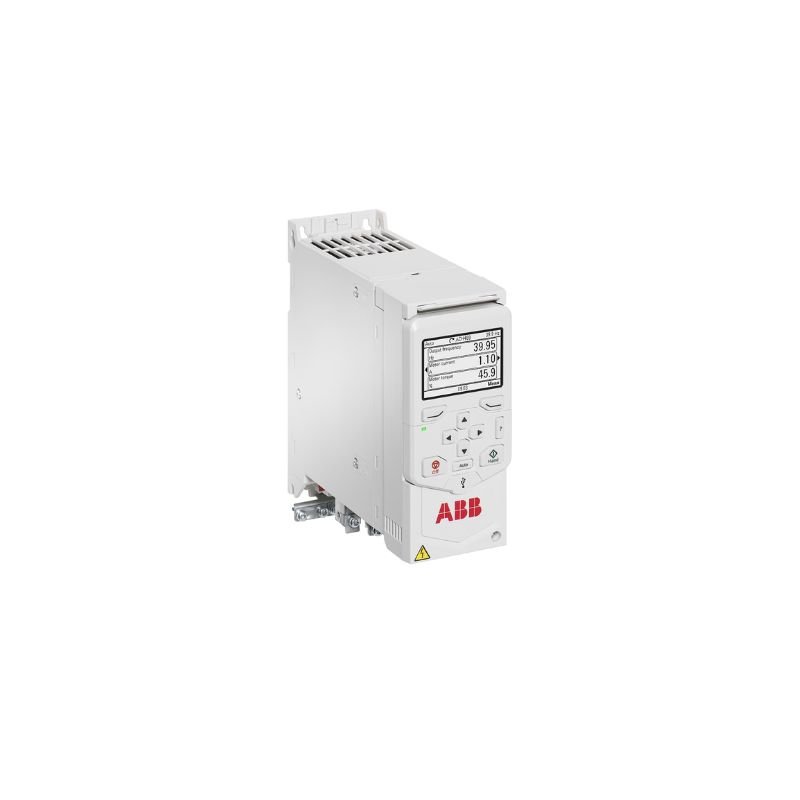

Buy ACH480-04-07A3-4 380/415V 3 phase 3.0kW 6.8A IP20 R1 ABB Drive | Order By 1pm For Same Day Shipping |
The ACH480-04-07A3-4 (alternate code 3AXD50000275472) is a high-performance 3.0kW variable frequency drive from ABB, rated at 6.8A input current and designed for precise motor control in industrial and commercial applications.
This ABB ACH480 drive delivers exceptional motor control performance for three-phase applications requiring reliable speed and torque regulation. Engineered for wall-mounted installations, this compact drive combines advanced control algorithms with user-friendly operation, making it ideal for demanding industrial environments where consistent motor performance is critical.
Key Features
- 3.0kW Power Rating with 7.2A Output Current: Provides robust motor control capability for medium-duty applications while maintaining high efficiency and precise speed regulation
- Wide Input Voltage Range (380-480V): Accommodates various international power supply standards, ensuring flexible installation across different electrical systems and reducing inventory complexity
- Compact R1 Frame Design: Space-efficient wall-mounting configuration (223mm H x 73mm W x 208mm D) maximises panel space utilisation while simplifying installation in confined areas
- IE2 Efficiency Level: Delivers energy-efficient operation that reduces operating costs and supports sustainability initiatives while meeting modern energy regulations
- Extended Operating Temperature Range (-10 to +60°C): Ensures reliable performance in challenging environmental conditions, from cold storage facilities to warm industrial environments
- Low Acoustic Emissions (63dB): Minimises noise pollution in workplace environments, supporting comfortable working conditions and compliance with occupational health standards
- Basic Keypad Included: Provides essential programming and monitoring capabilities out of the box, enabling quick commissioning and operational adjustments
- Broad Frequency Range (48-63Hz): Compatible with both 50Hz and 60Hz power systems, ensuring global applicability and system integration flexibility
Applications
The ACH480-04-07A3-4 drive excels in HVACR applications including ventilation fans, pumps, and compressors where precise speed control and energy efficiency are paramount. Its robust design makes it suitable for manufacturing automation, material handling systems, and process control applications. The drive's compact footprint and wall-mounting capability make it particularly well-suited for retrofit projects and space-constrained installations in commercial buildings, industrial facilities, and infrastructure applications.
Standards and Compliance
This drive features IP20 protection rating for standard industrial environments and operates reliably within 5-95% relative humidity conditions, ensuring consistent performance across varied installation environments.
Manufactured by ABB in Finland, order code ACH480-04-07A3-4.
Frequently Asked Questions
What are the dimensions and weight specifications for the ACH480-04-07A3-4?
The drive measures 223mm in height, 73mm in width, and 208mm in depth, with both net and gross weight of 1.7kg. Its compact R1 frame size makes it suitable for wall mounting in space-constrained installations.
What is the difference between the input current (6.8A) and output current (7.2A) ratings?
The 6.8A input current represents the maximum current drawn from the supply, while the 7.2A output current is the maximum current the drive can deliver to the motor. This difference reflects the drive's internal power conversion efficiency and control circuitry requirements.
Can this drive operate in both 50Hz and 60Hz power systems?
Yes, the ACH480-04-07A3-4 supports a frequency range of 48-63Hz, making it compatible with both European 50Hz and North American 60Hz power systems. The input voltage range of 380-480V also accommodates various international voltage standards.
What environmental conditions can this drive withstand?
The drive operates reliably in temperatures from -10°C to +60°C and humidity levels from 5% to 95% relative humidity. With IP20 protection, it's designed for indoor industrial environments with standard dust and moisture protection requirements.
Where can I buy ACH480-04-07A3-4 380/415V 3 phase 3.0kW 6.8A IP20 R1 ABB Drive in the UK?
CSE Distributors is an official ABB franchised distributor with over 50 years of experience, operating from locations in Wooburn Green and Southampton. As a family-run business with hundreds of positive reviews, CSE offers genuine ABB products with full warranty, technical support, and nationwide next-day delivery from their 10,000+ sq.ft warehouse facilities.
| Temperature Rating | -10 to +60 °C |
|---|---|
| Frame Size | R1 |
| Mounting Type | Wall Mounting |
| IP Rating | IP20 |
| Noise | 63 dB |
| Rated Power | 3 kW |
| Output Current | 7.2 A |
| Power, Light Duty | 3 hp |
| Number of Phases | 3 Phase |
| Input Voltage | 380-480V |
| Keypad Included | Basic |
| Efficiency Level | IE2 |
| Operating Humidity | 5 to 95% Rhamb |
| Frequency | 48 to 63 Hz |
| Item Code | ACH480-04-07A3-4 |
|---|---|
| Alternate Code | 3AXD50000275472 |
| Manufacturer | ABB |
| Unit of Measure | Each |
| Pack QTY | 1 |
| Net Weight | 1.7 kg |
| Gross Weight | 1.7 kg |
| Height | 223 |
| Width | 73 |
| Depth | 208 |
| EAN | 6438177541776 |
| Commodity Code | 85044087 |
| Country of Origin | Finland |
