Code: HO7RN-F-3C-6
Buy H07RN-F Rubber Cable - 3 Core 6mm2 / HO7RN-F-3C-6 | Order By 1pm For Same Day Shipping | Free Delivery Over £150 *Conditions Apply |
per Metre
£3.41 ex VAT 342 Available
QtyAdd to Cart

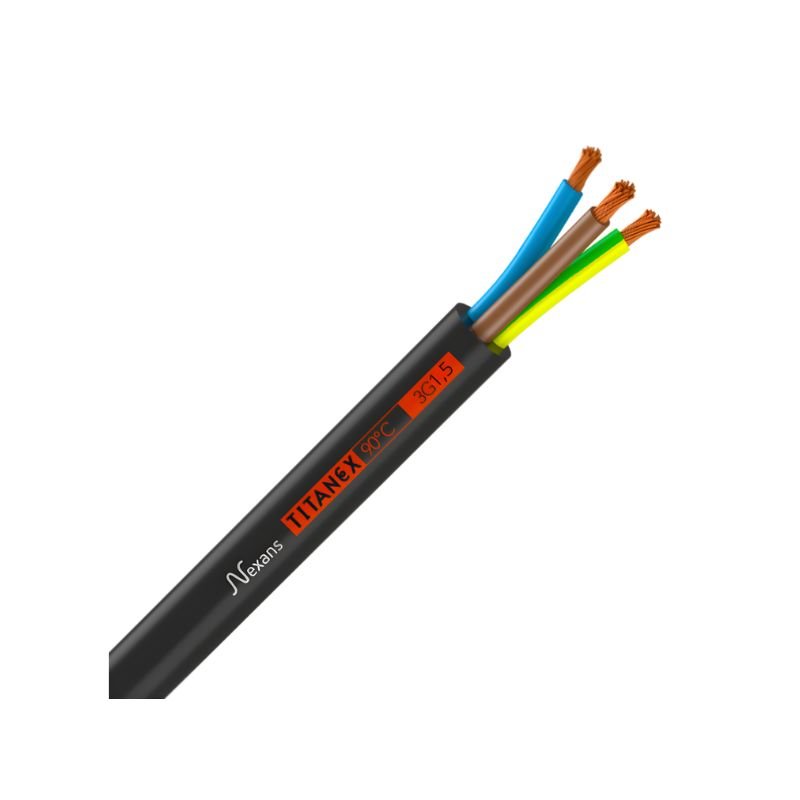

H07RN-F Flexible Rubber Cable - 3 Core 6mm²
h07rn-f 3g 6mm2
In addition to this design remit, the H07RN-F cable is also made from PCP neoprene, which means it is both oil, chemical and flame retardant. making it a sound choice for a range of equipment such as and including transformers, pumps, welders, grinders, temporary lighting cable, and feed cables to heavy mobile equipment that may be placed in low hazardous areas.
Along with a dispatch time of just 1-2 days and with it priced per meter, it's easy to get exactly the amount you need without the waste. Don't settle for less - choose the H07RN-F Rubber Cable for all your heavy-duty cable needs. your next project.
Technical Information
- Number of cores: 3
- Conductor CSA: 6.0mm²
- Conductor material: Bare copper
- Insulation material: Cross-linked Elastomer
- Core colours: Green/Yellow, Brown and Blue
- Jacket material: Cross-linked Elastomer
- Approx. Overall diameter: 15.5mm
- Jacket colour: Black
- Voltage rating: 450/750V
- Cable weight: 0.371kg per metre
- CPR Euroclass: Eca
| Oil Resistant | Yes |
|---|---|
| Sheath Colour | Black |
| Conductor Size | 6mm² |
| Harmonised Code | H07RN-F |
| Voltage | 450/750V |
| Stranding | 84/0.3 |
| Sheath Material | Cross-linked Elastomer |
| Thickness of Insulation | 1mm |
| Conductor Material | Bare Copper |
| Max. Amps | 63A |
| Number of Cores | 3 |
| Min. Diameter | 14.1 mm |
| Max. Diameter | 18 mm |
| UV Resistance | Yes |
| CPR Rating | Eca |
| Bending Radius (Dynamic) | 6 To 8 x Outer Diameter Of The Cable |
| Bending Radius (Static) | 4 x Outer Diameter Of The Cable |
| Item Code | HO7RN-F-3C-6 |
|---|---|
| Alternate Code | H07RN-F-3C-6 |
| MPN | 3X6TITANEX90 |
| Manufacturer | Titanex |
| Unit of Measure | Metre |
| Pack QTY | 1 |
| Net Weight | 0.35 kg |
| Gross Weight | 0.35 kg |
| EAN | 3427680014733 |
| Commodity Code | 85444991 |
| Country of Origin | France |
