H07RN-F Rubber Cable - 4 Core 6mm2 / HO7RN-F-4C-6

Code: HO7RN-F-4C-6

Buy H07RN-F Rubber Cable - 4 Core 6mm2 / HO7RN-F-4C-6 | Order By 1pm For Same Day Shipping | Free Delivery Over £150 *Conditions Apply |

per Metre
£3.99 ex VAT

651 Available


QtyAdd to Cart

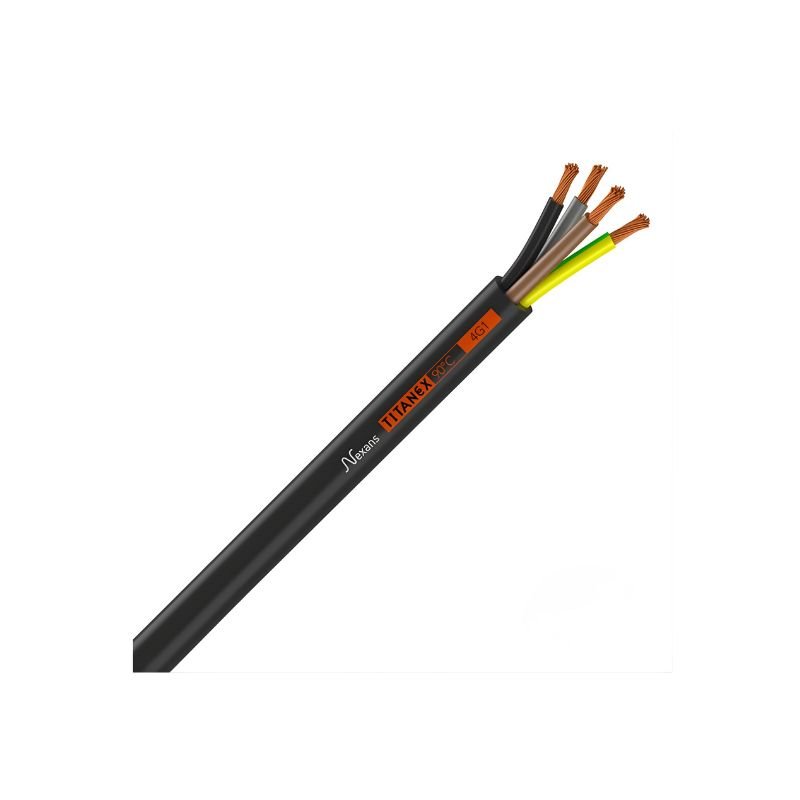

H07RN-F Flexible Rubber Cable - 4 Core 6mm2

h07rn f 4g 6


If you're looking for a dependable cable that can handle your portable or mobile equipment, the H07RN-F Rubber Cable - 4 Core 6mm2 is the perfect choice. This durable cable is not only robust, but also highly flexible, allowing it to be used in a variety of applications.


Primarily designed as a harmonised trailing cable for energy supply, the H07RN-F cable is ideal for use with transformers, pumps, welders, grinders, temporary lighting, and more. Its PCP neoprene construction makes it oil, chemical and flame retardant, ensuring long-lasting durability even in the event of an accident or low level hazard.


Offered price per meter, and with a dispatch time of just 1-2 days, this H07RN-F cable is an excellent option for anyone in need of a reliable cable with flexibility. So why wait? Simply order the number of meters needed and get your project on the way.

Technical Information

  • Number of cores: 4
  • Conductor CSA: 6.0mm²
  • Conductor material: Bare copper
  • Insulation material: Cross-linked Elastomer
  • Core colours: Green/Yellow, Brown, Black and Grey
  • Jacket material: Cross-linked Elastomer
  • Approx. Overall diameter: 17.9mm
  • Jacket colour: Black
  • Voltage rating: 450/750V
  • Cable weight: 0.443kg per metre
  • CPR Euroclass: Eca
Oil Resistant Yes
Sheath Colour Black
Conductor Size 6mm²
Harmonised Code H07RN-F
Voltage 450/750V
Stranding 84/0.3
Sheath Material Cross-linked Elastomer
Thickness of Insulation 1mm
Conductor Material Bare Copper
Max. Amps 54A
Number of Cores 4
Min. Diameter 15.7 mm
Max. Diameter 20 mm
UV Resistance Yes
CPR Rating Eca
Bending Radius (Dynamic) 6 To 8 x Outer Diameter Of The Cable
Bending Radius (Static) 4 x Outer Diameter Of The Cable
Item Code HO7RN-F-4C-6
Alternate Code H07RN-F-4C-6
MPN 4X6TITANEX90
Manufacturer Titanex
Unit of Measure Metre
Pack QTY 1
Net Weight 0.49 kg
Gross Weight 0.49 kg
EAN 3427680015259
Commodity Code 85444991
Country of Origin France

Titanex H07RN-F Datasheet
