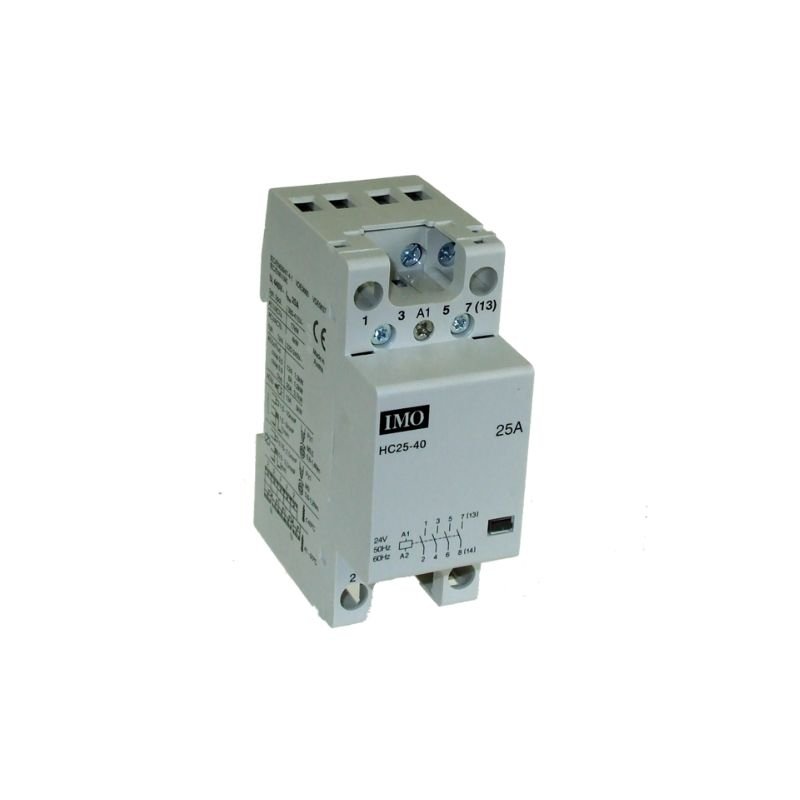

HC25-04230 IMO Modular Contactor 25A 4 Pole NC 230V AC Coil

The HC25-04230 is a 25A, 4-pole normally closed IMO modular contactor with a 230V AC coil, designed for reliable electrical switching applications. Also known as a lighting contactor, heating contactor, or installation contactor, this versatile device provides dependable control for various electrical loads in commercial and industrial installations.

This IMO modular contactor delivers precise switching control for lamps, heating systems, air conditioning units, and motor control applications. With its compact DIN rail mounting design and low power consumption, it offers an efficient solution for modern electrical control panels while maintaining exceptional reliability in demanding environments.

Key Features

• 25A Current Rating: Handles substantial electrical loads safely, making it suitable for commercial lighting circuits, heating elements, and motor control applications up to 25 amps
• 4-Pole Normally Closed Configuration: Provides comprehensive switching control across four circuits simultaneously, with contacts open during normal operation for enhanced safety
• Low Switching Noise (8dB): Operates quietly to minimize acoustic disturbance in office buildings, hospitals, and noise-sensitive environments
• Compact DIN Rail Design: Space-efficient 35mm width allows maximum utilization of control panel space while simplifying installation and maintenance
• Wide Temperature Range (-40°C to +40°C): Reliable operation in extreme conditions, from cold storage facilities to warm industrial environments
• 6mm² Flexible Cable Capacity: Accommodates substantial cable sizes for high-current applications while ensuring secure electrical connections
• 3kA Short Circuit Protection: Built-in protection safeguards against electrical faults, reducing downtime and maintenance costs
• Low Power Consumption: Energy-efficient coil operation reduces running costs and heat generation in control panels

Applications

The HC25-04230 modular contactor is ideal for lighting control systems in commercial buildings, heating element switching in industrial processes, air conditioning unit control, and motor starting applications. Its normally closed configuration makes it particularly suitable for safety circuits, emergency lighting systems, and applications requiring fail-safe operation. The compact design is perfect for modern control panels where space optimization is crucial.

Standards and Sustainability

This contactor meets UKCA, CE, and UL certification standards, ensuring compliance with international electrical safety regulations and suitability for global installations.

Manufactured by IMO in Austria, this modular contactor is available with order code HC25-04230.

Frequently Asked Questions

What cable sizes can be used with the HC25-04230 modular contactor?

The HC25-04230 accepts flexible cables up to 6mm² cross-sectional area, providing ample capacity for most 25A applications while ensuring secure, reliable electrical connections.

What are the physical dimensions for control panel layout planning?

The contactor measures 85mm high × 35mm wide × 65mm deep and weighs 0.36kg. Its compact 35mm width makes it ideal for space-efficient DIN rail installations in crowded control panels.

What types of loads can the HC25-04230 control effectively?

This 25A modular contactor is specifically designed for controlling lamps, heating elements, air conditioning systems, and motor loads. Its normally closed configuration makes it particularly suitable for safety circuits and emergency systems requiring fail-safe operation.

How does this contactor perform in extreme temperature environments?

The HC25-04230 operates reliably across a temperature range of -40°C to +40°C, making it suitable for outdoor installations, cold storage facilities, and warm industrial environments without performance degradation.

Where can I buy HC25-04230 IMO Modular Contractor 25A 4 Pole NC 230V AC Coil in the UK?

CSE Distributors supplies the HC25-04230 from locations in Wooburn Green and Southampton, offering same-day dispatch and next-day delivery nationwide. As an official IMO distributor with over 50 years of experience and hundreds of positive reviews, CSE provides genuine products with full warranty support.
