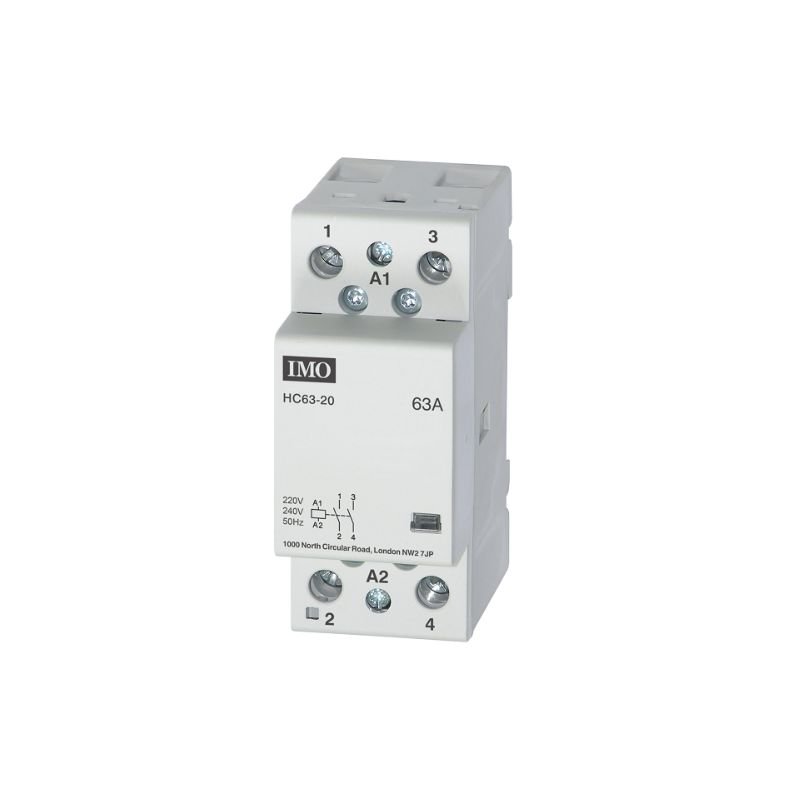

HC63-20230 IMO Modular Contactor 63A 2 Pole NO 230V AC Coil

The HC63-20230 is a high-performance 63A modular contactor manufactured by IMO, featuring 2-pole normally open (NO) configuration with a 230V AC coil. This modular contactor, also known as a lighting contactor, heating contactor, or installation contactor, is engineered for reliable switching and control applications in industrial and commercial environments.

This 63A modular contactor delivers dependable electrical switching for demanding applications including lamp control, heating systems, air conditioning units, and motor control circuits. With its compact DIN rail mounting design and low power consumption characteristics, the HC63-20230 provides an efficient solution for modern electrical installations where space and energy efficiency are critical considerations.

Key Features

• 63A Current Rating: Handles substantial electrical loads safely and reliably, making it suitable for high-power applications including industrial heating and large motor control circuits.
• Low Switching Noise (8dB): Minimal acoustic disturbance during operation ensures quiet performance in noise-sensitive environments such as offices and residential buildings.
• Compact DIN Rail Design: Space-efficient mounting on standard 35mm DIN rails maximises panel real estate while simplifying installation and maintenance procedures.
• Low Power Consumption: Energy-efficient coil operation reduces running costs and heat generation within control panels, improving overall system efficiency.
• 16mm² Cable Capacity: Accommodates flexible cables up to 16mm², providing versatility for various installation requirements and conductor sizes.
• 3kA Short Circuit Protection: Built-in protection capability safeguards the contactor and connected equipment against fault conditions, reducing downtime and maintenance costs.
• Wide Temperature Range (-40°C to +40°C): Operates reliably across extreme temperature conditions, suitable for both indoor and outdoor applications.

Applications

The IMO HC63-20230 modular contactor is ideal for controlling lighting circuits in commercial buildings, heating elements in industrial processes, air conditioning systems, and motor control applications. Its 63A rating makes it particularly suitable for switching substantial loads in manufacturing facilities, HVAC systems, and large-scale lighting installations. The compact design and DIN rail mounting capability make it perfect for modern control panels where space optimisation is essential.

Standards and Sustainability

This modular contactor meets stringent international safety and performance standards with UKCA, CE, and UL certifications, ensuring compliance with European and North American electrical regulations for safe installation and operation.

Manufactured by IMO in Austria, order code HC63-20230.

Frequently Asked Questions

What cable sizes can be connected to the HC63-20230 modular contactor?

The HC63-20230 accommodates flexible cables up to 16mm² maximum size, providing excellent versatility for various installation requirements. The terminal design ensures secure connections for both stranded and solid conductors within this range.

What is the physical size of this 63A modular contactor?

The IMO HC63-20230 measures 85mm height x 35mm width x 65mm depth, with a net mass of 0.36kg. Its compact profile allows multiple units to be mounted efficiently on standard DIN rails within control panels.

Can the HC63-20230 be used for motor control applications?

Yes, this 63A modular contactor is specifically designed for motor control applications alongside lighting, heating, and air conditioning control. Its 63A current rating and 3kA short circuit protection capability make it suitable for controlling substantial motor loads safely and reliably.

What makes this contactor suitable for noise-sensitive environments?

The HC63-20230 features exceptionally low switching noise at just 8dB, making it ideal for installations in offices, hospitals, schools, and residential buildings where acoustic disturbance must be minimised during switching operations.
