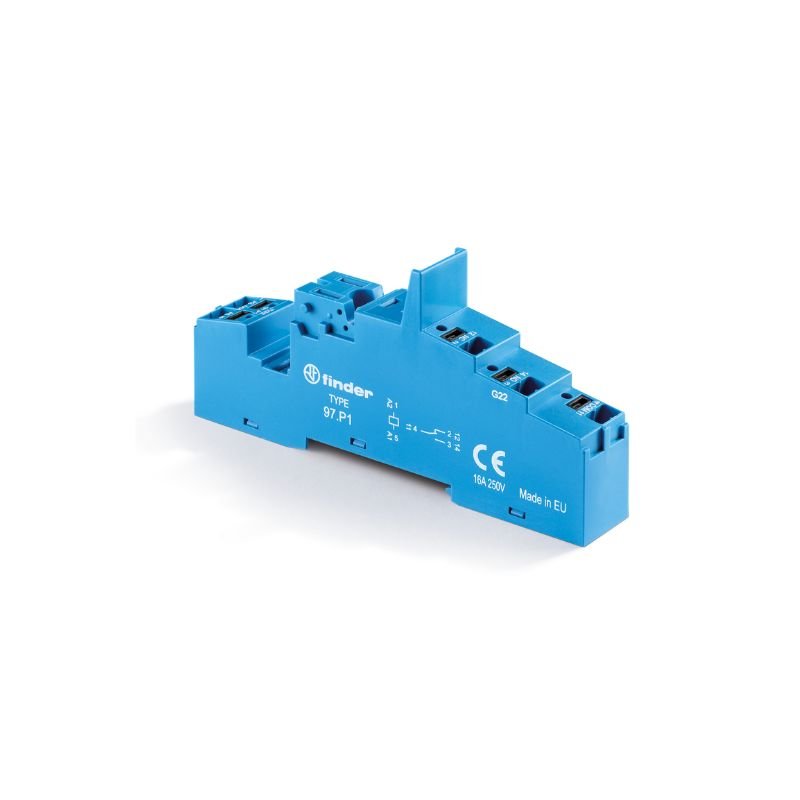

97.P1SPA Finder 97 Series 1P Blue Din Rail Socket Push In Terminals

The Finder 97.P1SPA is a blue single-pole DIN rail socket designed for 46 series relays, featuring convenient push-in terminals for quick and secure connections in industrial control applications.

This 97 series relay socket provides a reliable mounting and connection solution for Finder 46.61 relays in control panels and automation systems. The push-in terminal design eliminates the need for tools during installation, significantly reducing wiring time while ensuring secure electrical connections. Its compact single-pole configuration makes it ideal for space-constrained applications where efficient relay interfacing is essential.

Key Features

• Push-In Terminal Technology: Tool-free wire insertion and removal speeds up installation and maintenance, reducing labour costs and minimising downtime during panel wiring
• Flexible Cable Accommodation: Accepts 2 x 1.5mm² or 1 x 2.5mm² stranded cables, providing versatility for different control circuit requirements and wire gauge preferences
• Dual Mounting Options: Compatible with both panel mounting and standard 35mm DIN rail (EN 60715), offering installation flexibility across various enclosure types and configurations
• Extended Temperature Range: Operates reliably from -40°C to +70°C, ensuring consistent performance in harsh industrial environments and extreme climate conditions
• Integrated Retention System: Plastic retaining and release clip secures the relay firmly in place while allowing easy removal for maintenance or replacement
• Visual Identification: Blue colour coding aids in circuit identification and organisation within control panels, reducing wiring errors and simplifying troubleshooting
• Compact Design: Single-pole configuration with minimal footprint maximises panel space utilisation while maintaining full electrical functionality

Applications

The 97.P1SPA socket is specifically engineered for industrial automation and control applications requiring reliable relay interfacing. It's commonly used in manufacturing control panels, building automation systems, and process control installations where Finder 46.61 relays provide switching functions. The DIN rail mounting capability makes it particularly suitable for modular control system designs, while the panel mounting option accommodates custom enclosure configurations. Its push-in terminals are especially beneficial in applications requiring frequent maintenance access or where installation speed is critical.

Standards and Compliance

This socket complies with EN 60715 standards for 35mm DIN rail mounting, ensuring compatibility with standard industrial enclosure systems and maintaining consistent mechanical specifications across installations.

Manufactured by Finder with product code 97.P1SPA (alternate: 97P1SPA), net weight 0.03kg, EAN: 8012823401522.

Frequently Asked Questions

What cable sizes can be used with the 97.P1SPA push-in terminals?

The socket accommodates either 2 x 1.5mm² stranded cables or 1 x 2.5mm² stranded cable per terminal. This flexibility allows you to use multiple smaller control wires or a single larger wire depending on your circuit requirements and current ratings.

Which relays are compatible with this 97 series socket?

The 97.P1SPA socket is specifically designed for Finder 46.61 relays. This ensures proper pin alignment, secure mechanical connection, and reliable electrical contact between the relay and socket terminals.

Can this socket be mounted on both DIN rail and directly to panels?

Yes, the 97.P1SPA offers dual mounting flexibility. It can be mounted on standard 35mm DIN rail conforming to EN 60715, or directly mounted to control panels. This versatility allows it to be used in both modular DIN rail systems and custom panel layouts.

What is the operating temperature range for this relay socket?

The socket operates reliably across an ambient temperature range of -40°C to +70°C. This wide temperature tolerance makes it suitable for both indoor control panels and outdoor or harsh environment applications where temperature extremes may occur.

How do the push-in terminals work and what are their advantages?

Push-in terminals allow direct insertion of stripped wire ends without requiring screwdrivers or other tools. Simply insert the prepared wire into the terminal opening where it's automatically gripped securely. This design reduces installation time, eliminates torque requirements, and provides consistent connection quality while allowing easy wire removal using the integrated release mechanism.
