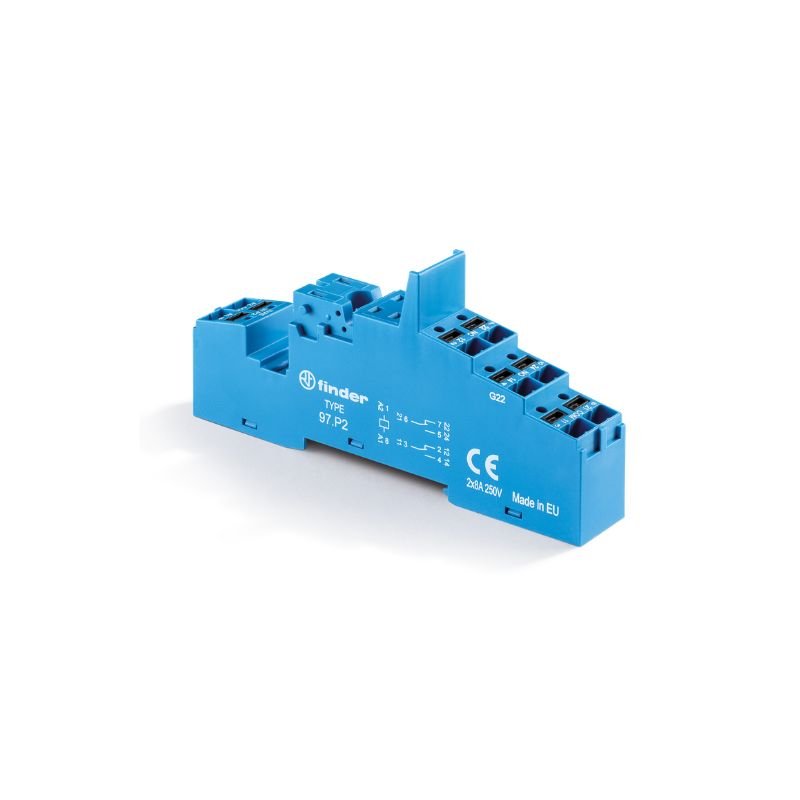

97.P2SPA Finder 97 Series 2P Blue Din Rail Socket Push In Terminals

The Finder 97.P2SPA is a 2-pole blue DIN rail socket with push-in terminals from the renowned 97 Series, specifically designed for mounting 46.52 series relays in industrial control panels and automation systems.

This versatile relay socket provides a secure and reliable connection interface for 46 Series relays, offering flexible mounting options for both panel and 35mm DIN rail installation. The push-in terminal design significantly reduces installation time while ensuring consistent electrical connections in demanding industrial environments.

Key Features

• Push-In Terminal Technology: Eliminates the need for screwdrivers during installation, reducing wiring time by up to 50% while providing vibration-resistant connections ideal for industrial machinery applications
• Dual Mounting Capability: Compatible with both panel mounting and standard 35mm DIN rail (EN 60715), providing installation flexibility across different control cabinet configurations
• Wide Temperature Range (-40°C to +70°C): Suitable for harsh industrial environments including outdoor installations, cold storage facilities, and high-temperature manufacturing processes
• Generous Cable Capacity: Accommodates up to 2 x 1.5mm² or 1 x 2.5mm² stranded cables, supporting substantial current loads for motor control and power switching applications
• Integrated Retention System: Features plastic retaining and release clips that secure relays firmly while allowing quick removal for maintenance without tools
• Blue Coding System: Colour-coded blue housing enables quick identification of neutral or specific circuit functions in complex control panels, reducing wiring errors
• Compact 2-Pole Design: Minimises panel space requirements while maintaining full electrical performance for single-phase switching applications

Applications

The 97.P2SPA socket is extensively used in industrial automation systems, motor control centres, and building management systems where reliable relay interfacing is critical. Common applications include HVAC control systems, conveyor belt controls, lighting contactors, and process automation equipment. The push-in terminals make it particularly suitable for high-volume panel building operations where installation speed and consistency are paramount.

Standards and Compliance

This socket complies with EN 60715 standards for DIN rail mounting systems, ensuring compatibility with standard industrial enclosures and control panels across European and international markets.

Manufactured by Finder in accordance with international quality standards, this relay socket carries product code 97.P2SPA with EAN 8012823401546.

Frequently Asked Questions

What cable sizes can the 97.P2SPA push-in terminals accommodate?

The push-in terminals accept either 2 x 1.5mm² stranded cables or 1 x 2.5mm² stranded cable per terminal. This flexibility allows for different wiring configurations depending on your current requirements and installation preferences.

Which relay models are compatible with this socket?

The 97.P2SPA is specifically designed for Finder 46.52 series relays. This ensures proper pin alignment, secure mechanical retention, and optimal electrical performance when used with the designated relay range.

Can this socket be mounted on both DIN rail and panels?

Yes, the 97.P2SPA offers dual mounting capability. It can be mounted directly onto panels or clipped onto standard 35mm DIN rail conforming to EN 60715 standards, providing flexibility for different control cabinet designs and installation requirements.

What is the operating temperature range for this relay socket?

The Finder 97.P2SPA operates reliably across an ambient temperature range of -40°C to +70°C, making it suitable for both indoor and outdoor industrial applications, including cold storage facilities and high-temperature manufacturing environments.

How do the push-in terminals work and what are their advantages?

Push-in terminals allow direct insertion of stripped cable ends without requiring screwdrivers or tools. This technology provides faster installation, consistent connection quality, and improved vibration resistance compared to traditional screw terminals, making them ideal for high-volume panel building and maintenance operations.
