CXT Gland Pack

Brass for internal or external use with metal braided cable, with outer seal giving moisture proof protection, to BS6121

Read More

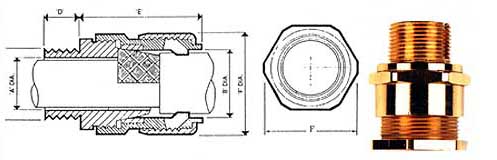

CXT Dimensions



ISO Metric Thread entry size MM Dimensions Diameter over thread MM Equivalent imperial thread size inches Minimum entry thread length 'D' mm Hexagon Size
Bore 'A' Cable 'B' Across corners 'F' MM
MM Min MM Max MM
20S 11.5 5.9 11.5 20 3/4 15 26.5
20 13.8 6.4 13.5 20 3/4 15 30.0
25 20.0 10.0 19.5 25 1 15 39.9
32 26.0 19.0 25.5 32 1 15 45.5
40 32.0 25.0 32.0 40 1 15 55.4
50S 29.5 38.1
50 35.6 44.0
S denotes small cable entry size Brass and aluminium are not compatible metals and contact between them can result in electrolysis action, therefore precautions must be taken when connecting Brass Glands to Aluminium enclosures or to the Aluminium armouring of cables.

Gland Chart for SY Type Braided Cable

Cable Size CXT Gland
mm 20s 20 25 32 40 50s 50
Up to Up to Up to Up to Up to Up to Up to
0.5 70 120 300 600
0.75 70 120 300 500 600
1 70 250 500 600
1.5 40 70 160 350 600
2.5 30 50 120 180 350 600
4 20 70 70
6 50 70
10 20 50 70
16 40
25 30 40
35 40
40
