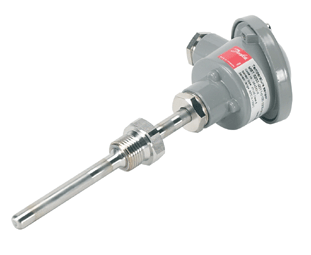

MBT 5252
    MBT 5252

    The MBT 5252 is a heavy-duty temperature sensor that can be used for controlling cooling water, lubrication oil, hydraulic oil and refrigeration plants within general industry and marine applications. This temperature sensor is based on a standardized Pt100 or Pt1000 element, which gives a reliable and accurate measurement. The MBT 5252 can be delivered with NTC/PTC elements on request.
    If needed, a transmitter (MBT 9110) can be ordered as an integrated part of the sensor. In the low temperature version (-50 °C to +200 °C) the measuring insert is based on a silicone cable, which makes the sensor very resistant towards vibrations. All parts in contact with the media are made of stainless steel AISI 316 Ti. The MBT 5252 is equipped with a B-head as standard, but can be delivered with B-mini or B-head with screw cap on request.

    * For gaseous or liquid media, e.g. air, gas, vapour, water or oil
    * Up to +400° C media temperatures
    * Available with built-in transmitter
    * Available with all relevant marine approvals

    Temperature range -50 > 200°C
    Order Code Type Insertion L (mm) Connection Transmitter Output Transmitter Input
    084Z8210 MBT 5252-0011-0050-0200-0000 50 G 1/2 A 2-wire 3 Terminals None
    084Z6140 MBT 5252-0011-0080-0200-0000 80 G 1/2 A 2-wire 3 Terminals None
    084Z8211 MBT 5252-0011-0100-0200-0000 100 G 1/2 A 2-wire 3 Terminals None
    084Z8212 MBT 5252-0011-0150-0200-0000 150 G 1/2 A 2-wire 3 Terminals None
    084Z8213 MBT 5252-0011-0200-0200-0000 200 G 1/2 A 2-wire 3 Terminals None
    084Z6139 MBT 5252-0011-0250-0200-0000 250 G 1/2 A 2-wire 3 Terminals None
    084Z8214 MBT 5252-0011-0050-0200-G110 50 G 1/2 A 2-wire 0 > +100°C
    084Z6142 MBT 5252-0011-0080-0200-G110 80 G 1/2 A 2-wire 0 > +100°C
    084Z8215 MBT 5252-0011-0100-0200-G110 100 G 1/2 A 2-wire 0 > +100°C
    084Z8216 MBT 5252-0011-0150-0200-G110 150 G 1/2 A 2-wire 0 > +100°C
    084Z8217 MBT 5252-0011-0200-0200-G110 200 G 1/2 A 2-wire 0 > +100°C
    084Z6143 MBT 5252-0011-0250-0200-G110 250 G 1/2 A 2-wire 0 > +100°C
    084Z8230 MBT 5252-0011-0050-0300-0000 50 G 3/4 A 2-wire 3 Terminals None
    084Z6164 MBT 5252-0011-0080-0300-0000 80 G 3/4 A 2-wire 3 Terminals None
    084Z8231 MBT 5252-0011-0100-0300-0000 100 G 3/4 A 2-wire 3 Terminals None
    084Z8232 MBT 5252-0011-0150-0300-0000 150 G 3/4 A 2-wire 3 Terminals None
    084Z8233 MBT 5252-0011-0200-0300-0000 200 G 3/4 A 2-wire 3 Terminals None
    084Z6141 MBT 5252-0011-0250-0300-0000 250 G 3/4 A 2-wire 3 Terminals None
    084Z8234 MBT 5252-0011-0050-0300-G110 50 G 3/4 A 2-wire 0 > +100°C
    084Z6144 MBT 5252-0011-0080-0300-G110 80 G 3/4 A 2-wire 0 > +100°C
    084Z8235 MBT 5252-0011-0100-0300-G110 100 G 3/4 A 2-wire 0 > +100°C
    084Z8236 MBT 5252-0011-0150-0300-G110 150 G 3/4 A 2-wire 0 > +100°C
    084Z8237 MBT 5252-0011-0200-0300-G110 200 G 3/4 A 2-wire 0 > +100°C
    MBT-5252
