Code: 017-5155
Buy 017-515566 - Danfoss Thermostat Type RT103 | Order By 1pm For Same Day Shipping |
QtyAdd to Cart

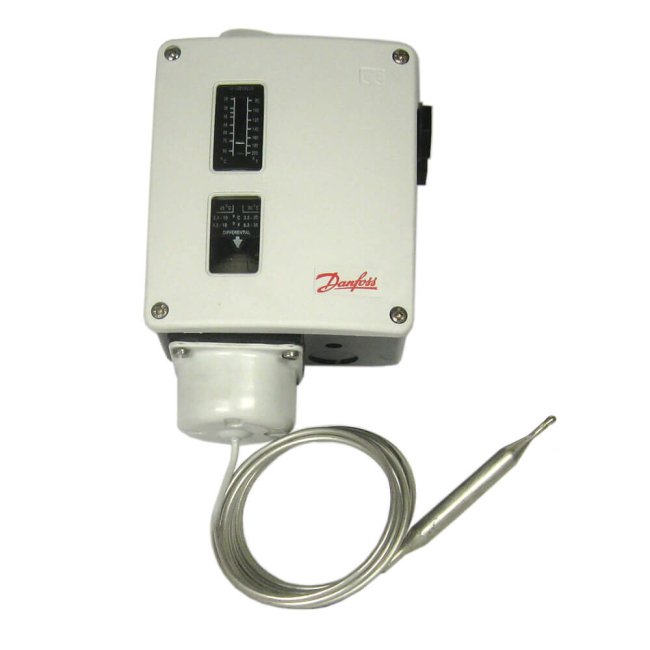

017-515566 - Danfoss Thermostat Type RT103 | Thermostat with room sensor
| Characteristic | Value |
| Type | RT103 |
| Weight | 0.790 Kg |
| Ambient temperature [oC] | -50 - 70oC |
| Ambient temperature [oF] | -58 - 158oF |
| Ambient temperature [oC] | -50 - 70 oC |
| Ambient temperature range [oF] | -58 - 158oF |
| Approval | CE, EAC, RINA, RMRS |
| Charge type | State Vapour |
| Contact function | SPDT |
| Contact rating | AC1=10 A, 400 V |
| Contact rating | AC15=3 A, 400 V |
| Contact rating | AC3=4 A, 400 V |
| Contact rating | DC13=12 W, 220 V |
| Contact rating | LR=28 A, 400 V |
| Diff. @ Max. range setting[oC] | 1.0 - 5.0 oC |
| Diff. @ Min. range setting[oC] | 1.3 - 7.0oC |
| Differential type | Adjustable |
| Electrical connection size | 2xPg 13.5 |
| Electrical specification standard | EN 60947-4/-5 |
| Enclosure rating | IP66 |
| Glow lamp | No |
| Max. sensor temperature [oC] | 100oC |
| Max. sensor temperature [oF] | 212 oF |
| Product description | Temperature Control |
| Product group | Switches and thermostats |
| Product name | Thermostat |
| Reset function | AUTO |
| Sensor type | Room sensor (B) |
| Temperature Range [oC] | 10 - 45oC |
| Temperature range [oF] | 50 - 113oF |
| Item Code | 017-5155 |
|---|---|
| Alternate Code | 017-515566 |
| Manufacturer | Danfoss |
| Unit of Measure | Each |
| Pack QTY | 1 |
| Net Weight | 0.79 kg |
| Gross Weight | 0.92 kg |
| EAN | 5702423120420 |
| Commodity Code | 90321080 |
| Country of Origin | PL |
