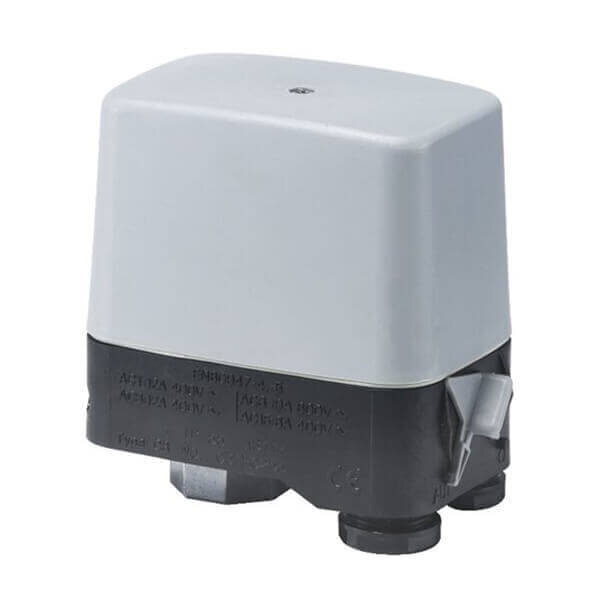

031E023566 Danfoss CS Pressure Switch Setting range 4 to 12.0 G1/2A

Code: 031E0235

Buy 031E023566 Danfoss CS Pressure Switch Setting range 4 to 12.0 G1/2A | Order By 2pm For Same Day Shipping | Free Delivery Over £150 | Log In For Better Pricing

per Each
Was £71.66
£68.07 ex VAT

5 Available

Min Qty: 1

031E023566 Danfoss CS Pressure Switch Setting range 4 to 12.0 G1/2A

PLEASE NOTE: Due to production issues this product may be on a lead time. Please contact us on 023 8025 5757 to confirm the latest availability. | Danfoss CS pressure switches have a three-pole switch and adjustable differential.

The pressure switches are fitted with a manual switch that will lock the contact system in the open position independently of the pressure in the system.
Characteristic Value
Type CS
Weight 0.438 Kg
Ambient temperature [oC] -20 - 70oC
Ambient temperature [oF] -4 - 158 oF
Ambient temperature [oC] -20 - 70oC
Ambient temperature range [oF] -4 - 158oF
Approval CE, EAC
Contact function TPST
Contact rating AC3=12 A, 220 - 415 V
Contact rating AC3=9 A, 600 V
Contact rating DC13=2 A, 220 V
Contact rating DC14=2 A, 220 V
Diff.@Max. range setting 2.00 - 4.00 bar
Diff.@Min. range setting 1.00 - 1.50 bar
Electrical conn. Male/Female Female
Electrical connection size Pg 16
Electrical specification standard EN 60947-4/-5
Enclosure rating IP55
Max. Working Pressure 12.0 bar
Max. Working Pressure 174 psig
Max. working pressure Pe 12.0 bar
Max. working pressure Pe 174.0 psig
Pressure connection standard ISO 228-1
Pressure connection type G - 1/2 Female
Pressure range category Medium pressure
Product description Pressure Control
Product group Switches and thermostats
Product name Pressure switch
Regulation range Pe 4.00 - 12.00 bar
Regulation range Pe 58.00 - 174.00 psig
Item Code 031E0235
Alternate Code 031E023566
Make Danfoss
Unit of Measure Each
Commodity Code 90322000
Country of Origin PL
EAN 5702423208708
Pack QTY 1
Net Mass (Kg) 0.44
Gross Mass (Kg) 0.51
