Code: 032U1255
Buy 032U1255 Danfoss EV220B 12mm orifice | Order By 1pm For Same Day Shipping |
QtyAdd to Cart

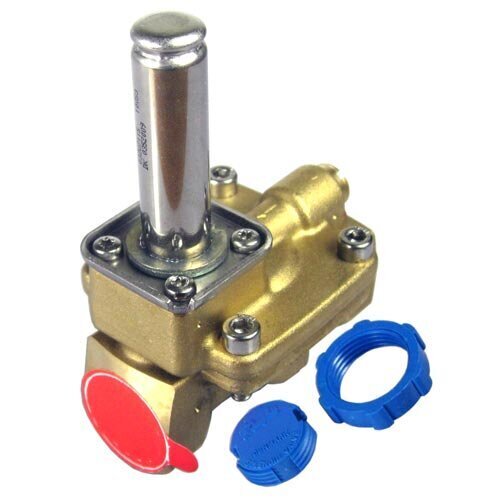

032U1255 Danfoss EV220B Solenoid valve body 12mm orifice | Delivered as separate valve bodies with pilot unit, flange gaskets, flange bolts and nuts. Separate flange sets.
Media: Fresh water and neutral brine.
Temperature of medium: -25 - +90?C
Opening differential pressure, min.: 0.25 bar, max. 10 bar
Max. working pressure = 10 bar
Max. test pressure = 15 bar
End connection - G 1/2
Kv Value (m3/h) - 2.5
Seal material - EPDM
Main type - EV220B12B
Min differential pressure (bar) - 0.1
Max a.c. differential pressure - 20
D.C. differential pressure - 10
Media: Fresh water and neutral brine.
Temperature of medium: -25 - +90?C
Opening differential pressure, min.: 0.25 bar, max. 10 bar
Max. working pressure = 10 bar
Max. test pressure = 15 bar
End connection - G 1/2
Kv Value (m3/h) - 2.5
Seal material - EPDM
Main type - EV220B12B
Min differential pressure (bar) - 0.1
Max a.c. differential pressure - 20
D.C. differential pressure - 10
| Gross Mass (Kg) | 0.34 |
|---|---|
| Net Mass (Kg) | 0.32 |
| Pack QTY | 1 |
| EAN | 5702423009619 |
| Country of Origin | DK |
| Commodity Code | 84818079 |
| Unit of Measure | Each |
| Make | Danfoss |
| Alternate Code | 032U1255 |
| Item Code | 032U1255 |
