Code: HO7RN-F-3C-10
Buy H07RN-F Rubber Cable - 3 Core 10mm2 / HO7RN-F-3C-10 | Order By 1pm For Same Day Shipping | Free Delivery Over £150 *Conditions Apply |
per Metre
£6.23 ex VAT 519 Available
QtyAdd to Cart

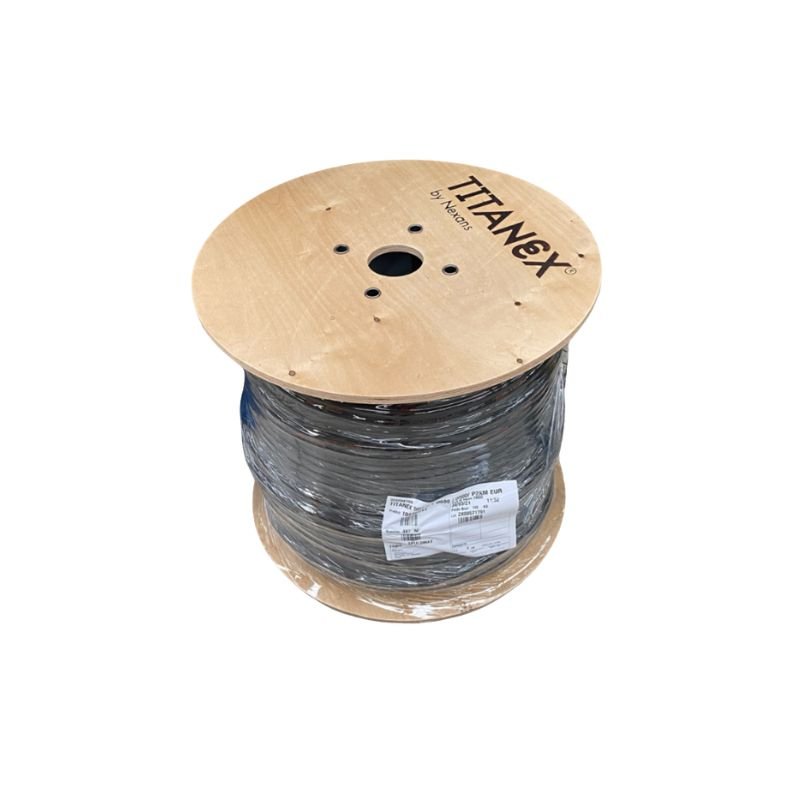

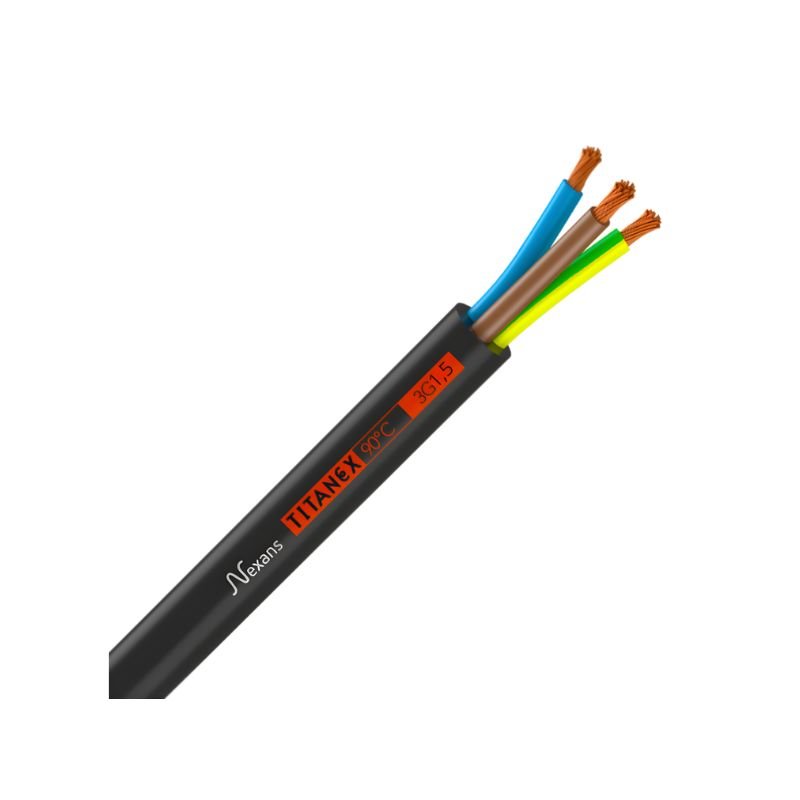

H07RN-F Rubber Cable - 3 Core 10mm2
h07rn f 3g10
h07rn f 3g10
Portable and mobile equipment need a tough, durable cable to power the application needed in sometimes hazardous areas. So to cater for this we stock H07RN-F flexible rubber cable, with oil, chemical and fire resistant properties, to make sure your application is safely carried out.
Installation of this cable is simple and easy, thanks to its harmonised core colours which come as standard with our H07RN-F.
The H07RN-F cable is not limited to specific applications; it's suitable for transformers, pumps, welders, grinders, temporary lighting, and feed cables to heavy mobile equipment. It boasts a voltage rating of 450/750V and CPR Euroclass Eca for safety and reliability.
Offered at a competitive price per meter, the H07RN-F cable is an excellent investment for those seeking a heavy-duty, flexible, and reliable cable solution. Don't wait; order yours today!
Technical Information
Installation of this cable is simple and easy, thanks to its harmonised core colours which come as standard with our H07RN-F.
The H07RN-F cable is not limited to specific applications; it's suitable for transformers, pumps, welders, grinders, temporary lighting, and feed cables to heavy mobile equipment. It boasts a voltage rating of 450/750V and CPR Euroclass Eca for safety and reliability.
Offered at a competitive price per meter, the H07RN-F cable is an excellent investment for those seeking a heavy-duty, flexible, and reliable cable solution. Don't wait; order yours today!
Technical Information
- Number of cores: 3
- Conductor CSA: 10mm²
- Conductor material: Bare copper
- Insulation material: Cross-linked Elastomer
- Core colours: Green/Yellow, Brown and Blue
- Jacket material: Cross-linked Elastomer
- Approx. Overall diameter: 20.92mm
- Jacket colour: Black
- Voltage rating: 450/750V
- Cable weight: 0.712kg per metre
- CPR Euroclass: Eca
| Oil Resistant | Yes |
|---|---|
| Sheath Colour | Black |
| Conductor Size | 10mm² |
| Harmonised Code | H07RN-F |
| Voltage | 450/750V |
| Stranding | 80/0.4 |
| Sheath Material | Cross-linked Elastomer |
| Thickness of Insulation | 1.2mm |
| Conductor Material | Bare Copper |
| Max. Amps | 86A |
| Number of Cores | 3 |
| Min. Diameter | 19.1 mm |
| Max. Diameter | 24.2 mm |
| UV Resistance | Yes |
| CPR Rating | Eca |
| Bending Radius (Dynamic) | 6 To 8 x Outer Diameter Of The Cable |
| Bending Radius (Static) | 4 x Outer Diameter Of The Cable |
| Item Code | HO7RN-F-3C-10 |
|---|---|
| Alternate Code | H07RN-F-3C-10 |
| MPN | 3X10TITANEX90 |
| Manufacturer | Titanex |
| Unit of Measure | Metre |
| Pack QTY | 1 |
| Net Weight | 0.73 kg |
| Gross Weight | 0.73 kg |
| EAN | 3427680014573 |
| Commodity Code | 85444991 |
| Country of Origin | France |
Titanex H07RN-F Datasheet
