H07RN-F Rubber Cable - 5 Core 4mm2 / HO7RN-F-5C-4

Code: HO7RN-F-5C-4

Buy H07RN-F Rubber Cable - 5 Core 4mm2 / HO7RN-F-5C-4 | Order By 1pm For Same Day Shipping | Free Delivery Over £150 *Conditions Apply |

per Metre
£4.12 ex VAT

937 Available


QtyAdd to Cart

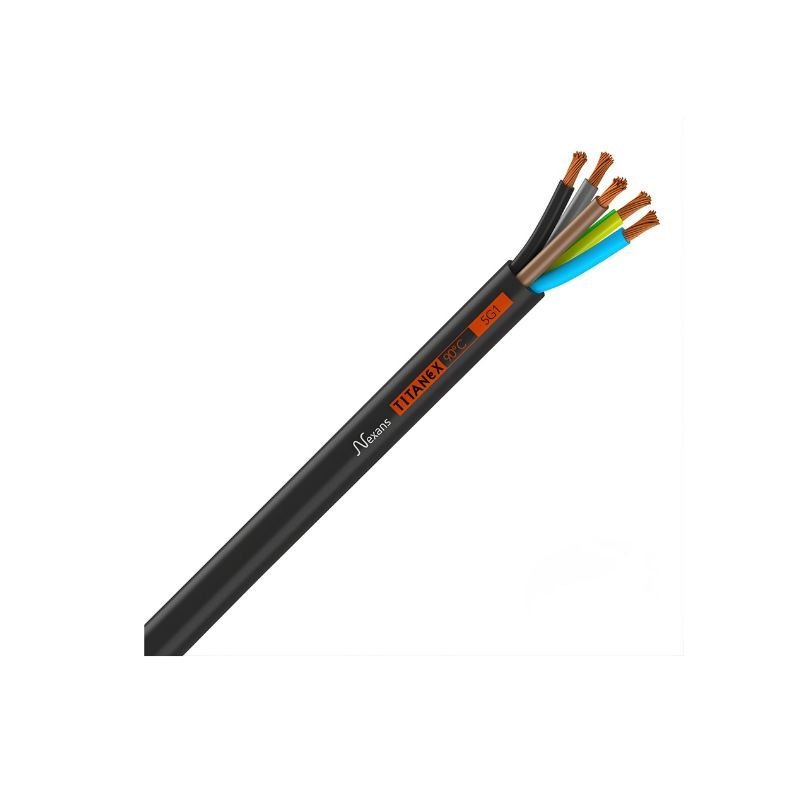

H07RN-F Flexible Rubber Cable 5 core 4mm²
H07RN-F 5G 4MM2

Introducing the H07RN-F Rubber Cable - 5 Core 4mm2; a heavy-duty harmonized cable that's both robust and flexible. Designed primarily as a trailing cable for portable or mobile equipment, this cable is your go-to for supplying energy. The PCP neoprene material is oil and flame-retardant, ensuring maximum safety and longevity.


This cable is suitable for a wide range of applications including transformers, pumps, welders, grinders, temporary lighting cable, and feed cables for heavy mobile equipment. Plus, with a dispatch time of just 1-2 days, you won't have to wait long to get your hands on it and as it is priced per meter so you can get the lengths you need, when you need them.


Don’t hesitate and order the lengths you need
TODAY!

Technical Information

  • Number of cores: 5
  • Conductor CSA: 4.0mm²
  • Conductor material: Bare copper
  • Insulation material: Cross-linked Elastomer
  • Core colours: Green/Yellow, Blue, Brown Black and Grey
  • Jacket material: Cross-linked Elastomer
  • Approx. Overall diameter: 17.8mm
  • Jacket colour: Black
  • Voltage rating: 450/750V
  • Cable weight: 0.453kg per metre
  • CPR Euroclass: Eca
Oil Resistant Yes
Sheath Colour Black
Conductor Size 4mm²
Harmonised Code H07RN-F
Voltage 450/750V
Stranding 56/0.3
Sheath Material Cross-linked Elastomer
Thickness of Insulation 1mm
Conductor Material Bare Copper
Max. Amps 42A
Number of Cores 5
Min. Diameter 15.6 mm
Max. Diameter 19.9 mm
UV Resistance Yes
CPR Rating Eca
Bending Radius (Dynamic) 6 To 8 x Outer Diameter Of The Cable
Bending Radius (Static) 4 x Outer Diameter Of The Cable
Item Code HO7RN-F-5C-4
Alternate Code H07RN-F-5C-4
MPN 5X4TITANEX90
Manufacturer Titanex
Unit of Measure Metre
Pack QTY 1
Net Weight 0.46 kg
Gross Weight 0.46 kg
EAN 3427680015679
Commodity Code 85444991
Country of Origin France

Titanex H07RN-F Datasheet
