Code: TRI-0.5-YELLOW-1
Buy Tri Rated Flexible Panel Cable - 0.5mm2 Yellow / TRI-0.5-YELLOW | Order By 1pm For Same Day Shipping |
per 100m Reel
£13.86 ex VAT 7 Available
QtyAdd to Cart

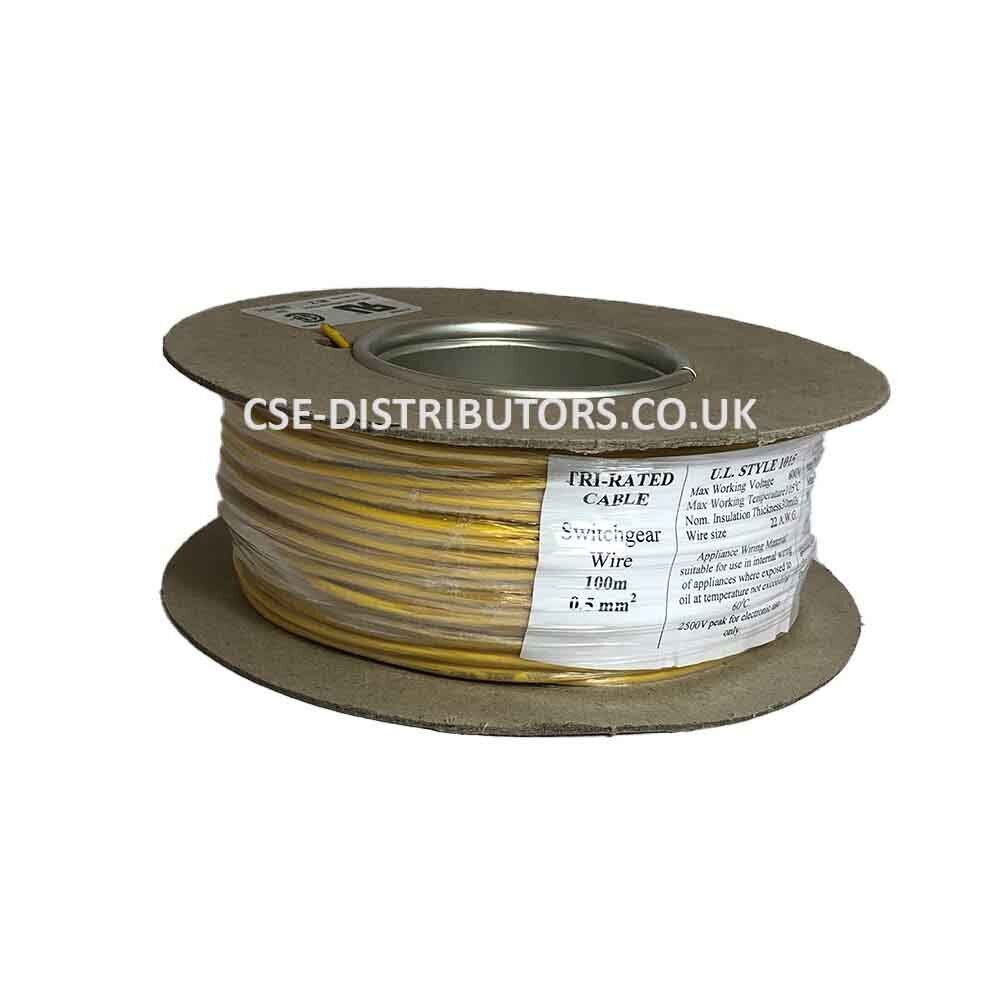

Tri Rated Flexible Panel Cable - 0.5mm2 Yellow
Lead Time: 3-4 Days | CSE holds a large range of high quality Tri Rated cables in stock, ideal for use as a flexible panel wire.. Our Tri Rated cables are manufactured to industry recognised / certified standards.
Colour : Yellow
Core Size : 0.5mm2
Cable Length : 100m
Size AWG: 22
Max Amps: 11.5
Conductors : Plain annealed copper, class 5 to BS EN 6022B
Insulation : Heat resisting PVC
Max, Conductor Temperature : 105°C in air, 60°C in Oil
Min, Bending Radius : 6 x O/D
Click for more information
Lead Time: 3-4 Days | CSE holds a large range of high quality Tri Rated cables in stock, ideal for use as a flexible panel wire.. Our Tri Rated cables are manufactured to industry recognised / certified standards.
Colour : Yellow
Core Size : 0.5mm2
Cable Length : 100m
Size AWG: 22
Max Amps: 11.5
Conductors : Plain annealed copper, class 5 to BS EN 6022B
Insulation : Heat resisting PVC
Max, Conductor Temperature : 105°C in air, 60°C in Oil
Min, Bending Radius : 6 x O/D
Click for more information
| Max. Amps | 11 |
|---|---|
| Sheath Colour | Yellow |
| Conductor Size | 0.5mm² |
| Voltage | 600/1000V |
| Stranding | 16/0.2 |
| Approx. Diameter | 2.6mm |
| AWG | 22 |
| RAL Code (approx.) | RAL 1021 |
| Sheath Material | PVC |
| Thickness of Insulation | 0.8mm |
| Conductor Material | Plain Annealed Copper |
| Item Code | TRI-0.5-YELLOW-1 |
|---|---|
| Alternate Code | TRI/0.5-YELLOW-1 |
| Manufacturer | Clynder / Permanoid |
| Unit of Measure | 100m Reel |
| Pack QTY | 1 |
| Net Mass (kg) | 1.1 |
| Gross Mass (kg) | 1.1 |
| EAN | - |
| Commodity Code | 85444991 |
| Country of Origin | UK |
