Code: TRI-0.75-VIOLET-1
Buy Tri Rated Flexible Panel Cable - 0.75mm2 Violet / TRI-0.75-VIOLET | Order By 1pm For Same Day Shipping |
per 100m Reel
£18.92 ex VAT 57 Available
QtyAdd to Cart

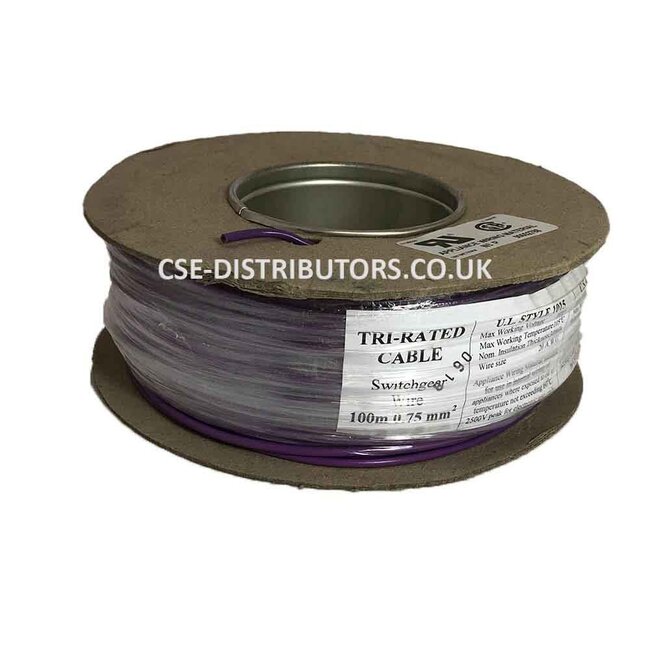

Tri Rated Flexible Panel Cable - 0.75mm2 Violet
Lead Time: 1-2 Days | CSE holds a large range of high quality Tri Rated cables in stock, ideal for use as a flexible panel wire.. Our Tri Rated cables are manufactured to industry recognised / certified standards.
Colour : Violet
Core Size : 0.75mm2
Cable Length : 100m
Size AWG: 20
Max Amps: 16
Conductors : Plain annealed copper, class 5 to BS EN 6022B
Insulation : Heat resisting PVC
Max, Conductor Temperature : 105°C in air, 60°C in Oil
Min, Bending Radius : 6 x O/D
Click for more information
Lead Time: 1-2 Days | CSE holds a large range of high quality Tri Rated cables in stock, ideal for use as a flexible panel wire.. Our Tri Rated cables are manufactured to industry recognised / certified standards.
Colour : Violet
Core Size : 0.75mm2
Cable Length : 100m
Size AWG: 20
Max Amps: 16
Conductors : Plain annealed copper, class 5 to BS EN 6022B
Insulation : Heat resisting PVC
Max, Conductor Temperature : 105°C in air, 60°C in Oil
Min, Bending Radius : 6 x O/D
Click for more information
| Max. Amps | 14 |
|---|---|
| Sheath Colour | Violet |
| Conductor Size | 0.75mm² |
| Voltage | 600/1000V |
| Stranding | 24/0.2 |
| Approx. Diameter | 2.8mm |
| AWG | 20 |
| RAL Code (approx.) | RAL 4005 |
| Sheath Material | PVC |
| Thickness of Insulation | 0.8mm |
| Conductor Material | Plain Annealed Copper |
| Item Code | TRI-0.75-VIOLET-1 |
|---|---|
| Alternate Code | TRI/0.75-VIOLET-1 |
| Manufacturer | Clynder / Permanoid |
| Unit of Measure | 100m Reel |
| Pack QTY | 1 |
| Net Mass (kg) | 1.4 |
| Gross Mass (kg) | 1.4 |
| EAN | - |
| Commodity Code | 85444991 |
| Country of Origin | UK |
