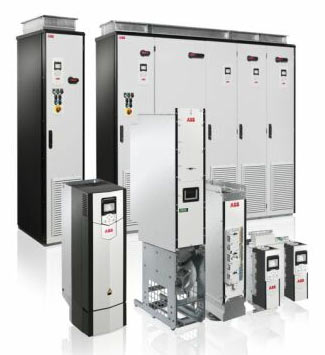

ABB’s ACS880-07 cabinet-built single drives are built to order, meeting customer needs despite any technical challenges. Designed on ABB’s common drives architecture, this compact drive comes in different sizes for simple assembly and commissioning.
These single drives are customized to the precise needs of industries such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, woodworking and marine. Typical applications include cranes, extruders, winches, conveyors, mixers, compressors, pumps and fans. The drive configuration contains a rectifier, DC link,inverter, fuses and a main switch, all built into a compact cabinet. The features and options include extended inputs and outputs, fieldbus options, du/dt filtering, EMC filtering and a brake resistor.
Induction motors, synchronous motors and induction servo motors are all supported as standard without the need for additional software. The drive can control the motors in either open loop or closed loop, through its high precision motor control platform, direct torque control (DTC). Built-in safety features reduce the need for external safety components.
Main features of the ABB ACS880-07 are:
- Compact design for easy cabinet assembly and maintenance
- Main switch and fuses
- Cabling solutions include bottom and top entry and exit
- Enclosure classes IP22, IP42 and IP54 for different environments, with option for air intake through bottom of the cabinet and channeled air outlet on the top of the cabinet
- Integrated safety including safe torque off (STO) as standard and the optional safety functions module, FSO-11 (TV Nord certificate)
- Supports various motor types including synchronous reluctance motors
- Drive composer PC tool for commissioning and configuration
- Intuitive and easy to operate control panel with USB connection
- Device panel for optional switches and pilot light
- Primary control program common software used throughout the ACS880 drive series
- Control unit supporting a wide range of fieldbuses, feedback devices and input/output options
- Removable memory unit for easy maintenance
- Coated boards as standard
- Extensive, programmable digital and analog inputs and outputs
- Long lifetime capacitors
- Cooling fans with speed control or on-off control
- Braking option inside the module or cabinet
- EMC filter option
- du/dt and common mode filter options for motor protection
- Cabinet light and heater option
Ordering Information
UN = 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (45 to 1400 kW) | |||||||||||
Nominal ratings | Light-overload use | Heavy-duty use | Noise level | Heat dissipation | Air flow | Type designation | Frame size | ||||
IN A | Imax A | PN kW | ILd A | PLd kW | IHd A | PHd kW | dBA | W | m³/h | ||
6-pulse diode | |||||||||||
105 | 148 | 55 | 100 | 55 | 87 | 45 | 67 | 1795 | 435 | ACS880-07-0105A-3 | R6 |
145 | 178 | 75 | 138 | 75 | 105 | 55 | 67 | 1940 | 435 | ACS880-07-0145A-3 | R6 |
169 | 247 | 90 | 161 | 90 | 145 | 75 | 67 | 2440 | 450 | ACS880-07-0169A-3 | R7 |
206 | 287 | 110 | 196 | 110 | 169 | 90 | 67 | 2810 | 450 | ACS880-07-0206A-3 | R7 |
246 | 350 | 132 | 234 | 132 | 206 | 110 | 65 | 3800 | 550 | ACS880-07-0246A-3 | R8 |
293 | 418 | 160 | 278 | 160 | 246 1 | 132 | 65 | 4400 | 550 | ACS880-07-0293A-3 | R8 |
363 | 498 | 200 | 345 | 200 | 293 | 160 | 68 | 5300 | 1150 | ACS880-07-0363A-3 | R9 |
430 | 545 | 250 | 400 | 200 | 363 2 | 200 | 68 | 6500 | 1150 | ACS880-07-0430A-3 | R9 |
505 | 560 | 250 | 485 | 250 | 361 | 200 | 72 | 5602 | 1200 | ACS880-07-0505A-3 | R10 |
585 | 730 | 315 | 575 | 315 | 429 | 250 | 72 | 6409 | 1200 | ACS880-07-0585A-3 | R10 |
650 | 730 | 355 | 634 | 355 | 477 | 250 | 72 | 8122 | 1200 | ACS880-07-0650A-3 | R10 |
725 | 1020 | 400 | 715 | 400 | 566 | 315 | 72 | 8764 | 1200 | ACS880-07-0725A-3 | R11 |
820 | 1020 | 450 | 810 | 450 | 625 | 355 | 72 | 9862 | 1200 | ACS880-07-0820A-3 | R11 |
880 | 1100 | 500 | 865 | 500 | 725 1 | 400 | 71 | 10578 | 1420 | ACS880-07-0880A-3 | R11 |
1140 | 1482 | 630 | 1072 | 560 | 786 | 400 | 73 | 18000 | 4290 | ACS880-07-1140A-3 | 1—D8T+2—R8i |
1480 | 1930 | 800 | 1421 | 800 | 1107 | 630 | 74 | 25000 | 5720 | ACS880-07-1480A-3 | 2—D8T+2—R8i |
1760 | 2120 | 1000 | 1690 | 900 | 1316 | 710 | 74 | 29000 | 5720 | ACS880-07-1760A-3 | 2—D8T+2—R8i |
2610 | 3140 | 1400 | 2506 | 1400 | 1952 | 1000 | 76 | 44000 | 8580 | ACS880-07-2610A-3 | 3—D8T+3—R8i |
12-pulse diode | |||||||||||
990 | 1287 | 560 | 950 | 500 | 741 | 400 | 73 | 15000 | 5720 | ACS880-07-0990A-3+A004 | 2—D7T+2—R8i |
1480 | 1930 | 800 | 1421 | 800 | 1107 | 630 | 74 | 25000 | 5720 | ACS880-07-1480A-3+A004 | 2—D8T+2—R8i |
1760 | 2120 | 1000 | 1690 | 900 | 1316 | 710 | 74 | 29000 | 5720 | ACS880-07-1760A-3+A004 | 2—D8T+2—R8i |
2610 | 3140 | 1400 | 2506 | 1400 | 1952 | 1000 | 76 | 44000 | 10010 | ACS880-07-2610A-3+A004 | 4—D8T+3—R8i |
UN = 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V (45 to 1400 kW) | |||||||||||
Nominal ratings | Light-overload use | Heavy-duty use | Noise level | Heat dissipation | Air flow | Type designation | Frame size | ||||
IN A | Imax A | PN kW | ILd A | PLd kW | IHd A | PHd kW | dBA | W | m³/h | ||
6-pulse diode | |||||||||||
96 | 148 | 55 | 91 | 55 | 77 | 45 | 67 | 1795 | 435 | ACS880-07-0096A-5 | R6 |
124 | 178 | 75 | 118 | 75 | 96 | 55 | 67 | 1940 | 435 | ACS880-07-0124A-5 | R6 |
156 | 247 | 90 | 148 | 90 | 124 | 75 | 67 | 2440 | 450 | ACS880-07-0156A-5 | R7 |
180 | 287 | 110 | 171 | 110 | 156 | 90 | 67 | 2810 | 450 | ACS880-07-0180A-5 | R7 |
240 | 350 | 132 | 228 | 132 | 180 | 110 | 65 | 3800 | 550 | ACS880-07-0240A-5 | R8 |
260 | 418 | 160 | 247 | 160 | 240 1 | 132 | 65 | 4400 | 550 | ACS880-07-0260A-5 | R8 |
361 | 542 | 200 | 343 | 200 | 302 | 200 | 68 | 5300 | 1150 | ACS880-07-0361A-5 | R9 |
414 | 542 | 250 | 393 | 250 | 361 2 | 200 | 68 | 6500 | 1150 | ACS880-07-0414A-5 | R9 |
460 | 560 | 315 | 450 | 315 | 330 | 200 | 72 | 4403 | 1200 | ACS880-07-0460A-5 | R10 |
503 | 560 | 355 | 483 | 315 | 361 | 250 | 72 | 5602 | 1200 | ACS880-07-0503A-5 | R10 |
583 | 730 | 400 | 573 | 400 | 414 | 250 | 72 | 6409 | 1200 | ACS880-07-0583A-5 | R10 |
635 | 730 | 450 | 623 | 450 | 477 | 315 | 72 | 8122 | 1200 | ACS880-07-0635A-5 | R10 |
715 | 850 | 500 | 705 | 500 | 566 | 400 | 72 | 8764 | 1200 | ACS880-07-0715A-5 | R11 |
820 | 1020 | 560 | 807 | 560 | 625 | 450 | 71 | 9862 | 1200 | ACS880-07-0820A-5 | R11 |
1070 | 1391 | 710 | 1027 | 710 | 800 | 560 | 73 | 18000 | 4290 | ACS880-07-1070A-5 | 1—D8T+2—R8i |
1320 | 1716 | 900 | 1267 | 900 | 987 | 710 | 74 | 22000 | 5720 | ACS880-07-1320A-5 | 2—D8T+2—R8i |
1580 | 2060 | 1100 | 1517 | 1000 | 1182 | 800 | 74 | 27000 | 5720 | ACS880-07-1580A-5 | 2—D8T+2—R8i |
1980 | 2574 | 1400 | 1901 | 1300 | 1481 | 1000 | 75 | 36000 | 7150 | ACS880-07-1980A-5 | 2—D8T+3—R8i |
12-pulse diode | |||||||||||
990 | 1287 | 710 | 950 | 630 | 741 | 500 | 73 | 16000 | 5720 | ACS880-07-0990A-5+A004 | 2—D7T+2—R8i |
1320 | 1716 | 900 | 1267 | 900 | 987 | 710 | 74 | 22000 | 5720 | ACS880-07-1320A-5+A004 | 2—D8T+2—R8i |
1580 | 2060 | 1100 | 1517 | 1000 | 1182 | 800 | 74 | 27000 | 5720 | ACS880-07-1580A-5+A004 | 2—D8T+2—R8i |
1980 | 2574 | 1400 | 1901 | 1300 | 1481 | 1000 | 75 | 36000 | 7150 | ACS880-07-1980A-5+A004 | 2—D8T+3—R8i |
1) 130% overload
2) 125% overload
UN = 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (45 to 2800 kW) | |||||||||||
Nominal ratings | Light-overload use | Heavy-duty use | Noise level | Heat dissipation | Air flow | Type designation | Frame size | ||||
IN A | Imax A | PN kW | ILd A | PLd kW | IHd A | PHd kW | dBA | W | m³/h | ||
6-pulse diode | |||||||||||
61 | 104 | 55 | 58 | 55 | 49 | 45 | 67 | 1795 | 1750 | ACS880-07-0061A-7 | R6 |
84 | 124 | 75 | 80 | 75 | 61 | 55 | 67 | 1940 | 1750 | ACS880-07-0084A-7 | R6 |
98 | 168 | 90 | 93 | 90 | 84 | 75 | 67 | 2440 | 1750 | ACS880-07-0098A-7 | R7 |
119 | 198 | 110 | 113 | 110 | 98 | 90 | 67 | 2810 | 1750 | ACS880-07-0119A-7 | R7 |
142 | 250 | 132 | 135 | 132 | 119 | 110 | 65 | 3800 | 1750 | ACS880-07-0142A-7 | R8 |
174 | 274 | 160 | 165 | 160 | 142 | 132 | 65 | 4400 | 1750 | ACS880-07-0174A-7 | R8 |
210 | 384 | 200 | 200 | 200 | 174 | 160 | 68 | 4700 | 1150 | ACS880-07-0210A-7 | R9 |
271 | 411 | 250 | 257 | 250 | 210 | 200 | 68 | 5300 | 1150 | ACS880-07-0271A-7 | R9 |
330 | 480 | 315 | 320 | 315 | 255 | 250 | 72 | 4903 | 2950 | ACS880-07-0330A-7 | R10 |
370 | 520 | 355 | 360 | 355 | 325 | 315 | 72 | 6102 | 2950 | ACS880-07-0370A-7 | R10 |
425 | 520 | 400 | 415 | 400 | 360 | 355 | 72 | 6909 | 2950 | ACS880-07-0425A-7 | R11 |
470 | 655 | 450 | 455 | 450 | 415 | 400 | 72 | 8622 | 2950 | ACS880-07-0470A-7 | R11 |
522 | 655 | 500 | 505 | 500 | 455 | 450 | 72 | 9264 | 2950 | ACS880-07-0522A-7 | R11 |
590 | 800 | 560 | 571 | 560 | 505 | 500 | 71 | 10362 | 2950 | ACS880-07-0590A-7 | R11 |
650 | 820 | 630 | 630 | 630 | 571 | 560 | 71 | 11078 | 3170 | ACS880-07-0650A-7 | R11 |
800 | 1200 | 800 | 768 | 710 | 598 | 560 | 73 | 16000 | 4290 | ACS880-07-0800A-7 | 1—D8T+2—R8i |
1160 | 1740 | 1100 | 1114 | 1100 | 868 | 800 | 74 | 26000 | 5720 | ACS880-07-1160A-7 | 2—D8T+2—R8i |
1650 | 2475 | 1600 | 1584 | 1500 | 1234 | 1200 | 75 | 36500 | 7150 | ACS880-07-1650A-7 | 2—D8T+3—R8i |
2300 | 3450 | 2200 | 2208 | 2000 | 1720 | 1600 | 76 | 52000 | 10010 | ACS880-07-2300A-7 | 3—D8T+4—R8i |
2860 | 4290 | 2800 | 2746 | 2400 | 2139 | 2000 | 78 | 65000 | 12870 | ACS880-07-2860A-7 | 4—D8T+5—R8i |
12-pulse diode | |||||||||||
800 | 1200 | 800 | 768 | 710 | 598 | 560 | 73 | 16000 | 5720 | ACS880-07-0800A-7+A004 | 2—D7T+2—R8i |
1160 | 1740 | 1100 | 1114 | 1100 | 868 | 800 | 74 | 26000 | 5720 | ACS880-07-1160A-7+A004 | 2—D8T+2—R8i |
1650 | 2475 | 1600 | 1584 | 1500 | 1234 | 1200 | 75 | 36500 | 7150 | ACS880-07-1650A-7+A004 | 2—D8T+3—R8i |
2300 | 3450 | 2200 | 2208 | 2000 | 1720 | 1600 | 77 | 52000 | 11440 | ACS880-07-2300A-7+A004 | 4—D8T+4—R8i |
2860 | 4290 | 2800 | 2746 | 2400 | 2139 | 2000 | 78 | 65000 | 12870 | ACS880-07-2860A-7+A004 | 4—D8T+5—R8i |
Nominal ratings
- IN Rated current available continuously without overloadability at 40 °C.
- PN Typical motor power in no-overload use.
- Imax Maximum output current. Available for 10 seconds at start, then as long as allowed by drive temperature.
Light-overload use
- ILd Continuous current allowing 110% ILd for 1 min/5 min at 40 °C.
- PLd Typical motor power in light-overload use.
Heavy-duty use
- IHd Continuous current allowing 150% IHd for 1 min/5 min at 40 °C.
- PHd Typical motor power in heavy-duty use.
- The ratings apply at 40 °C ambient temperature. At higher temperatures (up to 50 °C) the derating is 1%/1 °C.
- Operation above 150 Hz might require type specific derating.
