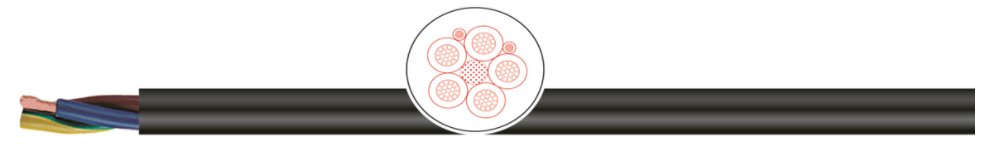

H07BZ5-F KAWEFLEX® CHARGE EVC

Cable Application

As a vital connection between the external power supply and the battery within the electric vehicle, H07BZ5-F, KAWEFLEX® is produced using high quality PUR sheath material and these cables are designed for rough everyday use and offer high requirements for mechanical strength and electrical safety.

In parallel with the power wires for the power supply, pilot wires ensure correct communication between the electric vehicle and the charging electronics in addition to Automobiles, Bikes are increasingly being powered by electricity and therefore must also be charged.

Technical Information

Conductor: Bare copper strands
Ladder class according to DIN 13602 and EN 60228 (VDE 0295 cl. 6)
Core Insulation: TPE or EPR according to EN 50620
Core recognition s.table
Stranding Cores stranded in layers
Outer jacket material PUR according to EN 50620
Sheath color Black, Yellow or Orange
imprint according to HAR and VDE
nominal voltage 450/750 V
Test voltage 2,500 V
Conductor resistance at +20 ° C according to DIN VDE 0295 class 5 or IEC 60228 class 5
smallest bending radius fixed 5 xd
smallest bending radius moved 15 xd
Operating temp.
rated min / max
-40 ° C / + 90 ° C
Halogen-free according to EN 50525-1, appendix B.
Fire behavior Self-extinguishing and flame retardant according to EN 60332-1-2
Approvals HAR, VDE



Charging Cable for Electric Vehicles Order Details

Item Number Dimension
n x mm²
Sheath Colour outer-Ø
mm
Cu index
kg/km
weight
kg/km
core identification
H07BZ5-F KAWEFLEX CHARGE EVC Yellow





H07BZ5-F-5G2.5+1X0.5-Y 5 G 2.5 + 1 X 0.5 Yellow 12.8 125.0 233.0 BU, BN, BK-WH, BK, GY, GNYE
H07BZ5-F-5G6+1X0.5-Y 5 G 6 + 1 X 0.5 Yellow 16.5 293.0 460.0 BU, BN, BK-WH, BK, GY, GNYE






H07BZ5-F KAWEFLEX CHARGE EVC black





H07BZ5-F-3G1.5+1X0.5-B 3 G 1.5 + 1 X 0.5 Black 9.2 48.0 105.0 GNYE, BK-WH, BU, BN
H07BZ5-F-3G2.5+1X0.5-B 3 G 2.5 + 1 X 0.5 Black 10.2 77.0 150.0 GNYE, BK-WH, BU, BN
H07BZ5-F-3G6+1X0.5-B 3 G 6 + 1 X 0.5 Black 12.5 178.0 274.0 GNYE, BK-WH, BU, BN
H07BZ5-F-3G16+1X0.5-B 3 G 16 + 1 X 0.5 Black 20.1 467.0 636.0 GNYE, BK-WH, BU, BN






H07BZ5-F-3G1.5+2X0.5-B 3 G 1.5 + 2 X 0.5 black 9.7 53.0 114.0 GNYE, WH, BU, BN, RD
H07BZ5-F-3G2.5+2X0.5-B 3 G 2.5 + 2 X 0.5 Black 10.7 82.0 152.0 GNYE, WH, BU, BN, RD
H07BZ5-F-3G6+2X0.5-B 3 G 6 + 2 X 0.5 Black 12.8 183.0 290.0 GNYE, WH, BU, BN, RD






H07BZ5-F-5G2.5+1X0.5-B 5 G 2.5 + 1 X 0.5 Black 12.8 125.0 233.0 BU, BN, BK-WH, BK, GY, GNYE
5G6+1X0.5-B 5 G 6 + 1 X 0.5 Black 16.5 293.0 460.0 BU, BN, BK-WH, BK, GY, GNYE






5G2.5+2X0.5-B 5 G 2.5 + 2 X 0.5 Black 12.8 130.0 241.0 BK, WH, GY, GNYE, RD, BU, BN
5G6+2X0.5-B 5 G 6 + 2 X 0.5 Black 16.0 298.0 435.0 BK, WH, GY, GNYE, RD, BU, BN
5G16+2X0.5-B 5 G 16 + 2 X 0.5 Black 23.1 778.0 972.0 BK, WH, GY, GNYE, RD, BU, BN
H07BZ5-F KAWEFLEX CHARGE EVC orange





5G2.5+1X0.5-O 5 G 2.5 + 1 X 0.5 Orange 13.0 125.0 233.0 BU, BN, BK-WH, BK, GY, GNYE
5G6+1X0.5-O 5 G 6 + 1 X 0.5 Orange 16.5 293.0 460.0 BU, BN, BK-WH, BK, GY, GNYE
