PVC Battery / Welding Cable

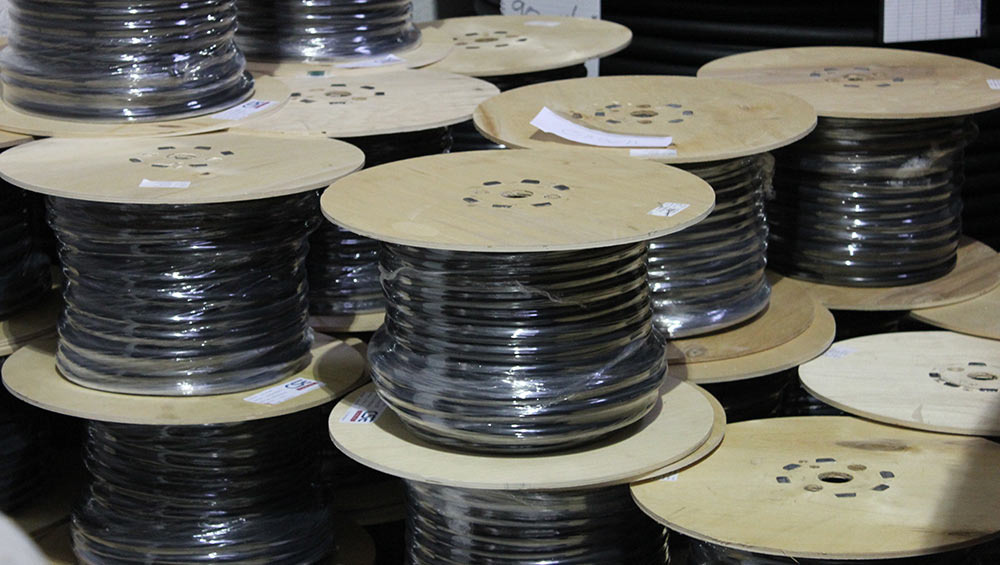

Black Battery Cable

We supply three different types of PVC battery / welding cable:

Semi Rigid PVC Battery Cable

The semi-rigid PVC battery cable has denser and less flexible plain copper conductor stranding with a PVC outer sheath.

  • Resistance : abrasion, moisture, petrol / diesel, oil, diluted acids
  • Working Temperature Range : -15°C to +70°C
  • Sheath Colour : Black or red
Nominal Conductor Area Conductor Stranding (No. of Wires / Diameter Maximum Overall Cable Dimensions Conductor Nominal Current Rating
mm2 mm mm Amps
25 196/0.40 9.8 170
40 315/0.40 12.2 300
50 396/0.40 13.3 345
60 475/0.40 14.6 415

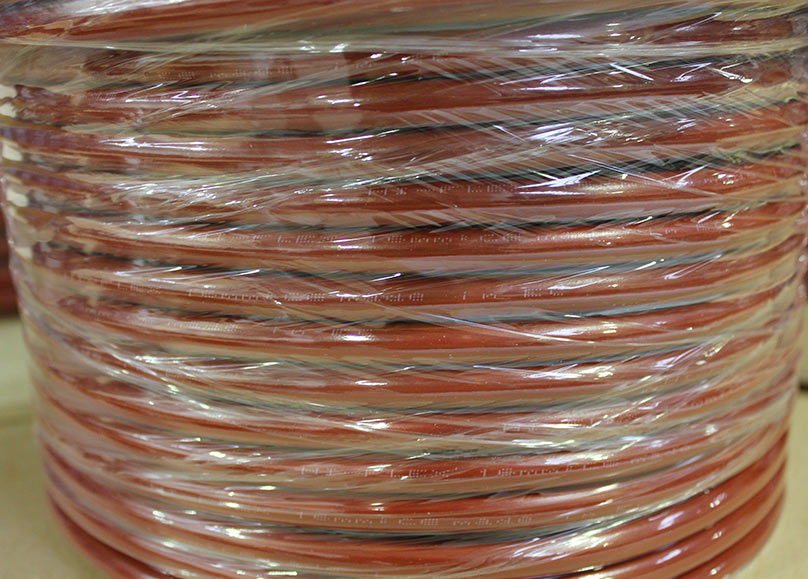

Red Battery Cable

The cable is available on a choice of different reel sizes.

Extra Flexible PVC Battery / Welding Cable

The extra flexible battery cable is ideal for battery or welding cable use. It is made from fine stranded copper conductors with a PVC outer sheath.

  • Resistance : Abrasion, moisture, petrol / diesel, oil, diluted acids
  • Working Temperature Range : -15°C to +70°C
  • Sheath Colour : Black or red
Nominal Conductor Area Conductor Stranding (No. of Wires / Diameter Maximum Overall Cable Dimensions Conductor Nominal Current Rating
mm2 mm mm Amps
25 196/0.40 9.8 170
40 315/0.40 12.2 300
50 396/0.40 13.3 345
60 475/0.40 14.6 415

The cable is available on a choice of different reel sizes.

Extra Flexible PVC Battery / Welding Cable

The high flex, extra flexible battery cables is ideal for battery or welding cable use. The cable construction is of fine stranded copper conductors with a PVC outer sheath.

  • Resistance : Abrasion, moisture, petrol / diesel, oil, diluted acids
  • Working Temperature Range : -15°C to +70°C
  • Sheath Colour : Black or red
Nominal Conductor Area Conductor Stranding (No. of Wires / Diameter Maximum Overall Cable Dimensions Conductor Nominal Current Rating
mm2 mm mm Amps
16 206/0.30 8.7 110
20 266/0.30 9.2 135
25 322/0.30 10.5 170
35 451/0.30 12.0 240
40 539/0.30 12.6 300
50 640/0.30 13.8 345
60 805/0.30 14.8 415
70 905/0.30 15.9 485
95 1285/0.30 18.2 500
120 1695/0.30 20.1 600

The cable is available on a choice of different reel sizes.
