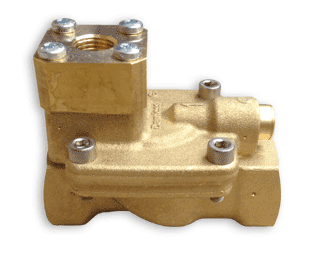

EV220X Externally operated valve |
|
EV220X Valves, contains no armature tube or coil, externally operated valves.
Originally designed as water operated relief valves for fire sprinkler system manufacturers. Brass body, stainless steel internal parts, EPDM valve palte /O-ring. M Max temp +140°c min -30°c |
| Order Code | Connection (“) |
Kv
m³/h |
Orifice (mm) | Seal Material | Type Code | Diff.Press. Min(bar) | Diff.Press. Max(bar) | |
| 032U7190 | G 1/2 | 4.0 | 15 | EPDM | EV220X15B | G12EUN000 | 0.3 | 10 |
| 032U7191 | G 3/4 | 8.0 | 20 | EPDM | EV220X20B | G34EUN000 | 0.3 | 10 |
| 032U7192 | G 1 | 11 | 25 | EPDM | EV220X25B | G1EUN000 | 0.3 | 10 |
