ABB ACH550 Dimensions & Weights

ABB ACH550 DimensionsWall Mounted Units

Frame Size IP21 / UL Type 1 IP54/UL type 12
H1
mm
H2
mm
W
mm
D
mm
Weight
kg
H
mm
W
mm
D
mm
Weight
kg
R1 369 330 125 212 6.5 449 213 234 8.2
R2 469 430 125 222 9 549 213 245 11.2
R3 583 490 203 231 16 611 257 253 18.5
R4 689 596 203 262 24 742 257 284 26.5
R5 739 602 265 286 34 776 369 309 38.5
R6 880 700 302 400 69 924 410 423 80
R6* 986 700 302 400 73 1119 410 423 84

Free Standing Units

Frame size H1 H2 W D Weight
mm mm mm mm kg
R8 2024 N/A 347 617 230

N/A = not applicable

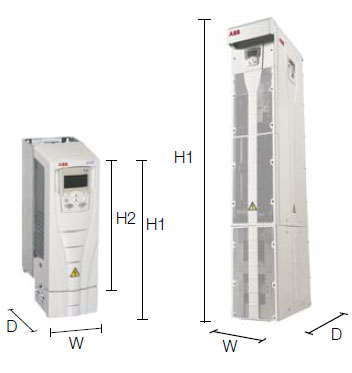

H1 = Height with cable connection box
H2 = Height without cable connection box
W = Width
D = Depth

Click for the ABB ACH550 Technical PDF
