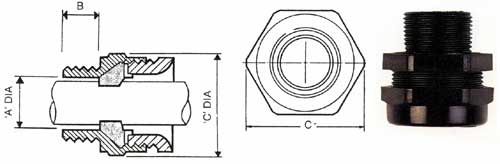

Nylon cable glad for internal or external use with cable where an armour clamp is not required, with a single seal giving moisture proof protection, to BS6121 (where applicable). Can be supplied with Shroud and Locknut if required. Not B.A.S.E.E.F.A. approved. For flameproof refer to A2F.
| ISO Metric Thread entry size MM | Dimensions | Equivalent imperial thread size inches | Minimum entry thread length ‘B’ MM | Hexagon size : Across corners ‘C’ MM | |
| ‘A’ | |||||
| Min MM | Max MM | ||||
| 16 | 3.0 | 8.0 | 5/8 | 15 | 26.0 |
| 20S | 5.0 | 10.0 | 3/4 | 15 | 30.6 |
| 20 | 6.0 | 13.2 | 3/4 | 15 | 35.4 |
| 25 | 12.0 | 18.0 | 1 | 15 | 39.9 |
S denotes small cable entry size A2P gland with outer seal
