Special Purpose Cable Ties

Screw mountable marker and push mount cable tiesScrew mountable marker and push mount cable ties

Screw Mountable Cable Ties

  • Material Nylon 6.6
  • Continuous working temperature -40°c to +85°c

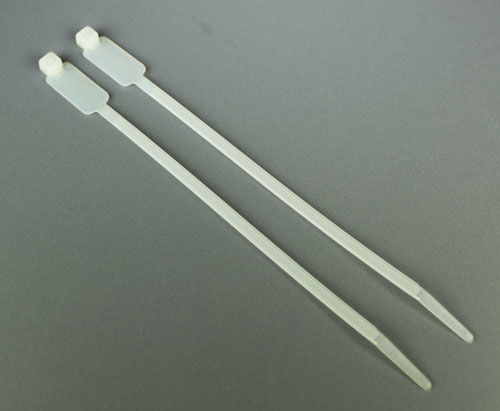

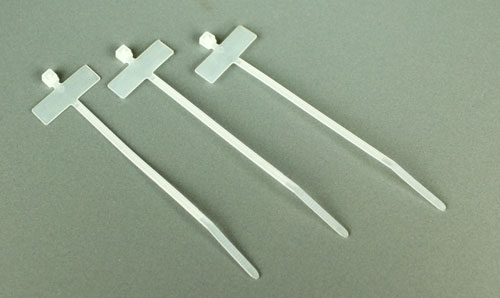

Marker Ties

Partex Marker Ties provide a quick and effective method of securing and marking bundles of cables. They can also be used for component marking and pipe identification. Markings can be made with the Partex Marker Pen. Marker ties are available, in natural colour only.

Part no. Length mm Width mm Max Bundle
Diameter mm
Min. tensile
strength KG
Marking Area
MAR 100F 100 2.5 18 8 25 x 8
MAR 200W 200 4.6 50 22 28 x 13

Push Mount Cable Ties

Partex Push Mount Cable Ties have an integral mounting device which enable cable to be secured to a panel or chassis without the need for any additional fixing. Two sizes are available, ex-stock, in natural colour only.

Part No. Length mm Width mm Max bundle
Diameter mm
Min tensile
strength Kg
Max Panel
Thickness mm
Nominal Hole
Diameter
PM150 155 3.3 32 13 2.4 4.7
PM200 200 4.6 46 22 3.2 6.4
