Spiral Bounding

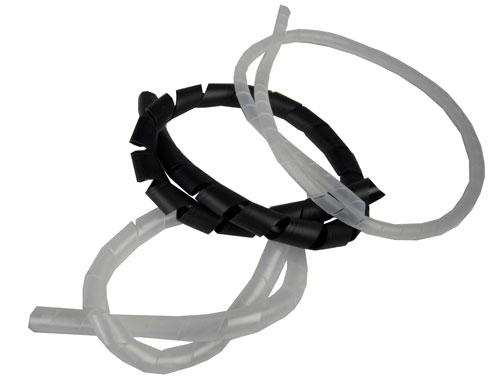

Spiral BindingSpiral binding provides a fast, simple method of binding and protecting cable looms both before and after installation. It enables cable to be led out of any point. Thanks to its flexibility, it will follow any route taken by the cable.

Applications

Used to bind cables that need high mechanical protection in the automotive industry as well as electrical installation.

Material: Low density polyethylene (LDPE)
Colour Options Black and Natural
Service Temperature Range: -50°C to +50°C



Order Code Range of Loom Diameter
(mm2)
Internal Diameter
(mm2)
Colour Length
(m)
CSB1B 7 – 40 6.5 Black 25
CSB1N 7 – 40 6.5 Natural 25
CSB2 12 – 50 8.2 Natural 25
CSB2B 12 – 50 8.2 Black 25
CSB3 15 – 80 12 Natural 20
CSB3B 15 – 80 12 Black 20
