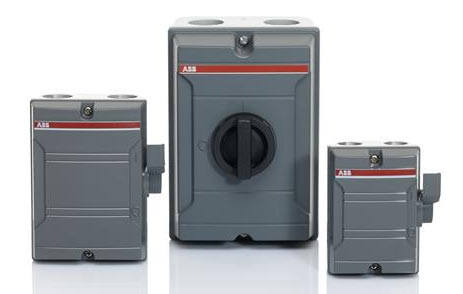

ABB Enclosed Change-Over Switches



ABB Enclosed Change-Over Switches 3-Pole Front Operated Change Over Switches

Steel sheet enclosed, IP54*

Rated operational
current [A]

Enclosure Size


AC22A AC23A
mm

Weight
≤690V ≤415V Cable outlets /
side
W H D Type Order Number kg
16 16 2xø25+ø16 233 350 140 OT16ELMM3C 1SCA022473R1070 1.9
16 16 2xø28,3+ø18,6 233 350 140 OT16ELPP3C 1SCA022473R1310 1.9
25 20 2xø25+ø16 233 350 140 OT25ELMM3C 1SCA022473R1580 1.9
25 20 2xø28,3+ø18,6 233 350 140 OT25ELPP3C 1SCA022473R1740 1.9
40 23 2xø25+ø16 233 350 140 OT32ELMM3C 1SCA022473R1910 1.9
40 23 2xø28,3+ø18,6 233 350 140 OT32ELPP3C 1SCA022473R2120 1.9
63 45 2xø32+ø16 233 350 140 OT45ELMM3C 1SCA022473R2390 4.0
63 45 2xø37+ø18,6 233 350 140 OT45ELPP3C 1SCA022473R2550 4.0
80 63 2xø32+ø16 233 350 140 OT63ELMM3C 1SCA022473R2710 4.0
80 63 2xø37+ø18,6 233 350 140 OT63ELPP3C 1SCA022473R2980 4.0

Delivery without cable entries, top and bottom sides are open. Cable entries for C-flanges or for ring-flanges have to be ordered separately, see accessories. These entries are used also for fixing the enclosed switches. Flanges and connection bars for parallel connection have to be ordered separately too. Includes pistol type black handle.

(I-O-II indication), N- and PE-terminals.

Rated operational
current [A]

Enclosure Size


AC22A AC23A
mm

Weight
≤690V ≤415V Cable outlets /
side
W H D Type Order Number kg
160 135 Open 400 600 230 OT160KLAA3C 1SCA120678R1001 20.0
200 200 Open 400 600 230 OT200KLAA3C 1SCA022280R2360 31.0
250 250 Open 400 600 230 OT250KLAA3C 1SCA022280R2520 36.0
315 315 Open 400 800 330 OT315KLAA3C 1SCA022280R2790 36.0
400 400 Open 400 800 330 OT400DLAA3C 1SCA022280R2950 39.0
570 570 Open 800 1000 330 OT630KLAA3C 1SCA022280R3170 48.0
720 720 Open 800 1000 330 OT800KLAA3C 1SCA022389R8310 48.0

*IP65 available upon request

4-pole front operated change-over switches

Steel sheet enclosed, IP54*

Delivery without cable entries, top and bottom sides are open. Cable entries for C-flanges or for ring-flanges have to be ordered separately, see accessories. These entries are used also for fixing the enclosed switches. Flanges
and connection bars for parallel connection have to be ordered separately too. Includes pistol type black handle (I-O-II indication), PE-terminals.

Rated operational
current [A]

Enclosure Size


AC22A AC23A
mm

Weight
≤690V ≤415V Cable outlets /
side
W H D Type Order Number kg
160 135 Open 400 600 230 OT160KLAA4C 1SCA120697R1001 21.0
200 200 Open 400 600 230 OT200KLAA4C 1SCA022474R6930 31.0
250 250 Open 400 600 230 OT250KLAA4C 1SCA022474R7070 36.0
315 315 Open 400 800 330 OT315KLAA4C 1SCA022474R7150 36.0
400 400 Open 400 800 330 OT400DLAA4C 1SCA022292R6680 39.0
570 570 Open 800 1000 330 OT630KLAA4C 1SCA022475R1180 48.0
720 720 Open 800 1000 330 OT800KLAA4C 1SCA022580R4340 48.0

* IP65 available on request
