ABB Pistol Grip Handles



Optional plastic handles for the PowerLine switch fuses range.  These are handles for front operation switches IP 65.

Padlockable with three padlocks in OFF-position, door interlock in ON position.  (defeatable to allow authorised personnel access for inspection).  Door drilling ø 53mm. The shaft has to be ordered separately.  Screw fixing from back side of handle, no screws on front ensures double protection.

For OS MINI

Black and Yellow – Red : I-O / On – Off. Handle length 65mm, suitable for shaft diameter 5mm.

Colour Weight Shaft Diameter (mm) Type Order Code
Black 0.12 5 OHB65J5
Yellow – red 0.12 5 OHY65J5

Black and yellow – Red : test / I-O/On-Off. Handle length 65mm, suitable for shaft diameter 5mm.

Colour Weight Shaft Diameter (mm) Type Order Code
Black 0.12 5 OHB65J5T
Yellow – red 0.12 5 OHY65J5T

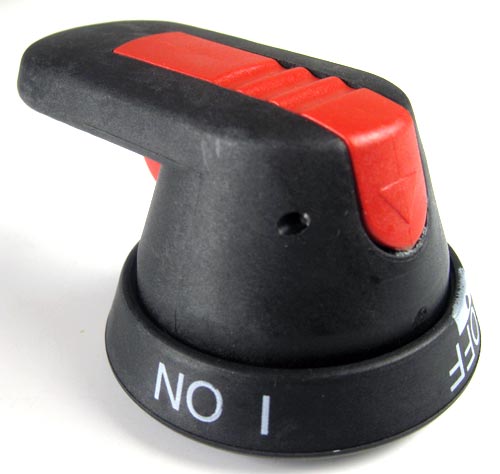

ABB Pistol Grip Handle for OS32 - 200

For OS 32 … 200

Black and Yellow – Red : I-O  On – Off. Handle length 65mm, suitable for shaft diameter 6mm.

Colour Weight Shaft Diameter (mm) Type Order Code
Black 0.12 6 OHB65J6
Yellow – red 0.12 6 OHY65J6

Black and Yellow – Red : Test / I-O / On-Off. Handle length 65mm, suitable for shaft diameter 6mm.

Colour Weight Shaft Diameter (mm) Type Order Code
Black 0.12 6 OHB65J6T
Yellow – red 0.12 6 OHY65J6T

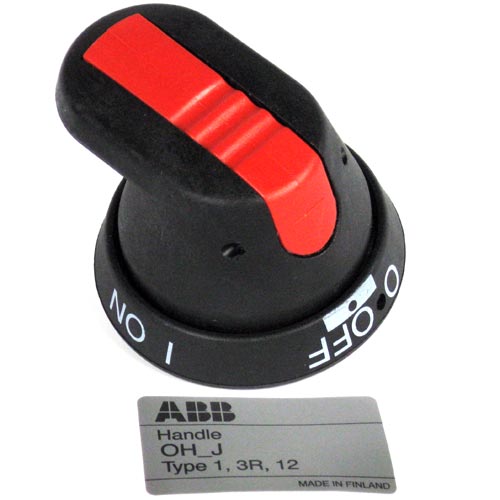

ABB Pistol Type Handle for OT16E - OT125E

Pistol Type Handles for OT16E to 125E

Padlockable with max. 3 padlocks with bail diameter 5 …. 10mm in OFF position, door interlock in ON position, defeatable.  indication in types OHB_ and OHY_: I-O / ON / OFF.

Description Shaft Diameter (mm) Handle Length Type Order Code
Black 5 45mm OHB45J5 1SCA022380R8180
Yellow – Red 5 45mm OHY45J5 1SCA022380R8340
