ABB OT 16 to 125 SwitchLine



Base and DIN rail mounting switch disconnectors

OT 32F, OT 45F and OT 63F switch disconnectors with improved ratings including protected terminal clamps, IP20. Handle and shaft have to be ordered separately. Click to buy on-line.

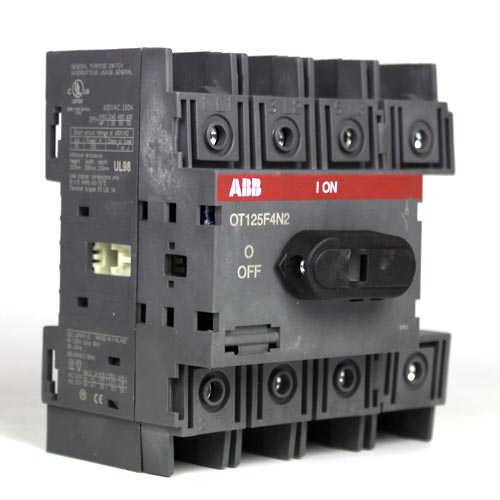

ABB OT16F - ABB OT125F Switches
No. of Poles Ith (open) (A) Cable cross section mm2 Operational currents AC22 / AC23 415V (A/A) Order Number Weight Kg Type
3 25 0.75 ... 10 16 / 16 1SCA104811R1001 0.11 OT16F3
4 25 0.72 ... 10 16 / 16 1SCA104831R1001 0.31 OT16F4C
3 32 0.75 ... 10 25 / 20 1SCA104857R1001 0.11 OT25F3
4 32 0.75 ... 10 25 / 20 1SCA104886R1001 0.14 OT25F4N2
3 40 0.75 ... 10 40 / 23 1SCA104902R1001 0.11 OT40F3
4 40 0.75 ... 10 40 / 23 1SCA104932R1001 0.14 OT40F4N2
3 63 1.5 ... 35 63 / 45 1SCA105332R1001 0.27 OT63F3
4 63 1.5 ... 35 63 / 45 1SCA105365R1001 0.30 OT63F4N2
3 80 1.5 ... 35 80 / 75 1SCA105798R1001 0.27 OT80F3
4 80 1.5 ... 35 80 / 75 1SCA105413R1001 0.30 OT80F4N2
3 115 10 ... 70 100 / 80 1SCA105004R1001 0.36 OT100F3
4 115 10 ... 70 100 / 80 1SCA105018R1001 0.50 OT100F4N2
3 125 10 ... 70 125 / 90 1SCA105033R1001 0.36 OT125F3
4 125 10 ... 70 125 / 90 1SCA105051R1001 0.50 OT125F4N2

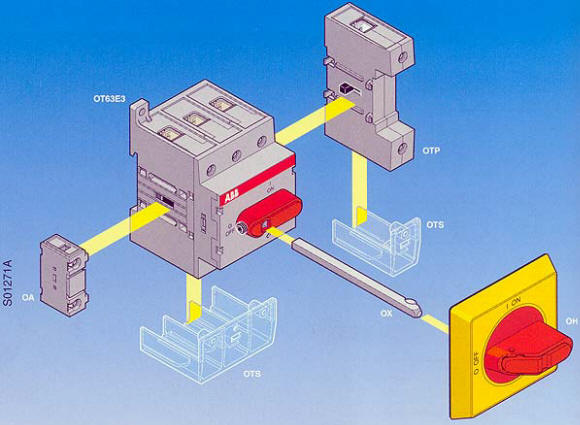

ABB Base Din Rail Switch Diagram

Fourth Pole - Click to buy on-line

Suitable for switches Type Order Number Order Quantity Weight
OT16 .. 32F3 OTPS40FPN1 1SCA105001R1001 10 0.03
OT 45 .. 63F3 OTPS80FP 1SCA105461R1001 10 0.06
OT 100 .. 1253 OTPS125FP 1SCA105099R1001 10 0.14
OT 16 .. 32FT3 OTPS40FDN1 1SCA104999R1001 10 0.03
OT 45 .. 63FT3 OTPS80FD 1SCA105458R1001 10 0.06
OT 100 .. 125FT3 OTPS125FD 1SCA105096R1001 10 0.14

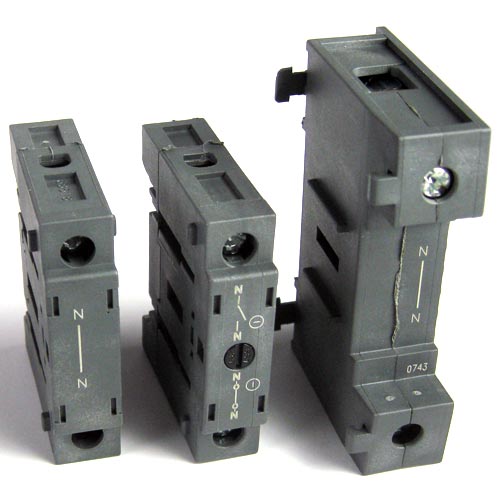

ABB Neutral and Earth Terminals

Neutral and Earth Terminals

Suitable for switches Type Order Number Order Quantity Weight
Fixed neutral
OT 16 .. 32F3 OTPN 32FP 1SCA022353R5780 10 0.03
OT 45 .. 63F3 OTPN 63FP 1SCA022353R5940 10 0.06
OT 80F3 OTPN 80FP 1SCA022379R8950 10 0.08
OT 100 .. 125F3 OTPN 125FP 1SCA022379R9090 10 0.14
OT 16 .. 32F3 OTPN 32FD 1SCA022353R6080 10 0.03
OT 45 .. 63FT3 OTPN 63FD 1SCA022371R5760 10 0.06
OT 100 .. 125FT3 OTPN 125FD 1SCA022379R870 10 0.14
Detachable neutral
OT 16 .. 32F3 OTPD40FP 1SCA104994R1001 10 0.03
OT 45 .. 63E3 OTPD80FP 1SCA105445R1001 10 0.06
OT 100 .. 125F3 OTPD125FP 1SCA105083R1001 10 0.14
