ABB ACS550 Dimensions

ABB ACS550 Dimensions

Wall Mounted Units

Frame Size

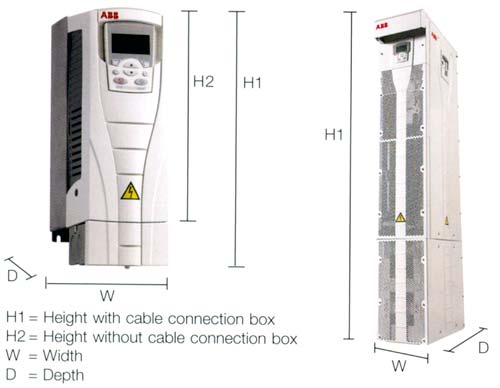

Dimensions and Weights

IP 21 / UL type 1 IP 54 / UL type 12
H1 mm H2 mm W mm D mm Weight kg H mm W mm D mm Weight kg
R1 369 330 125 212 6.5 441 215 238 8.2
R2 469 430 125 222 9 541 215 245 11.2
R3 583 490 203 231 16 604 257 276 18.5
R4 689 596 203 262 24 723 257 306 26.5
R5 739 602 265 286 34 776 369 309 38.5
R6 880 700 300 400 69 924 410 423 80

Free standing Units

R7 1507 n/a 250 *) 520*) 115
R8 2024 n/a 347*) 617*) 230

*) The dimensions apply to bookshelf mounting. In flat type mounting the width and depth change places.

n/a = not applicable

ABB ACS550 Construction

ACS550 – 01 – 03A3 – 4 + B055

’01’ within the type code (as above) varies depending on the drive mounting arrangement, and power rating.  Choose the correct one for requirements from the table below:

01 02 for IP 54 units …
  • Wall mounted, fame size R1-R6
  • 0.75 to 110 kW
  • IP 21
  • Built-in EMC filter
  • Standard software
  • Built-in Modbus interface
  • Cable connection box
  • Brake chopper in frame sizes R1-R2
  • Assistant control panel
  • Free standing, frame size R7-R8
  • 110 to 355 kW
  • IP 21
  • Built-in EMC filter
  • Standard software
  • Built-in Modbus interface
  • Pedestal unit
  • Assistant control panel
If IP 54 is required, simply select ‘o1’ and then see options – free standing (O2) units are not available in IP 54.

Click for the ABB ACS550 PDF
