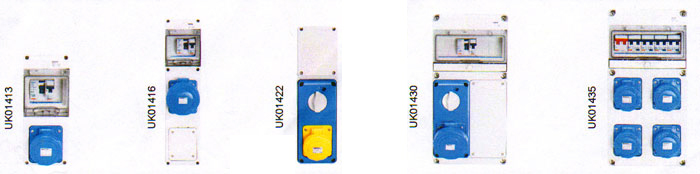

Gewiss IP65 Pre-Wired Combination Units



The Gewiss UK range of pre-wired combination units offers various levels of circuit protection, meeting a multitude of requirements regularly encountered in site and commercial installations.

The development of this range follows ongoing demand and feedback direct from the market.

Gewiss IP65 Pre-Wired Combination Units

Broad Range

The range comprises 25 different configurations, with a mix of 5 and 10 module units. This enables a wide range of installation requirements to be satisfied.

Protection

IP65 ingress protection across the entire range. RCD or RCBO protection as appropriate, with individual segregation of outlets.

Simple to Install

These units require no additional wiring, allowing quick, efficient installations. Cable entry can be from top or bottom.

Versatile and Secure

A selection of the units have been manufactured with space to allow future modifications. Units can be installed as fixed or portable, and relevant units can be adapted to facilitate a lockable front cover.

Socket Outlet Units with RCD & MCB

Part No. Sockets Voltage Rating Configuration Protection Front Cover Dim. Table
UK01411 1 110V 16A 2P+E MCB per socket
1
UK01412 2 110V 16A 2P+E MCB per socket
2
UK01413 1 230V 16A 2P+E RCD main switch + MCB per socket
1
UK01414 2 230V 16A 2P+E RCD main switch + MCB per socket
2
UK01415 4 230V 16A 2P+E RCD main switch + MCB per socket
3
UK01416 1 230V 32A 2P+E RCD main switch + MCB per socket Lockable 4
UK01417 2 230V 32A 2P+E RCD main switch + MCB per socket
4
UK01418 1 400V 16A 3P+N+E RCD main switch + MCB per socket Lockable 3
UK01419 2 400V 16A 3P+N+E RCD main switch + MCB per socket Lockable 3
UK01420 1 400V 32A 3P+N+E RCD main switch + MCB per socket Lockable 3
UK01421 2 400V 32A 3P+N+E RCD main switch + MCB per socket Lockable 3



Interlocked Switched Outlet

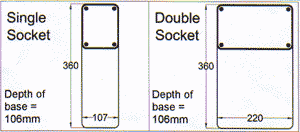

Part No. Sockets Voltage Rating Configuration Single Socket and Double Socket Dimensions
UK01422 1 110V 16A 2P+E
UK01423 2 110V 16A 2P+E
UK01424 1 230V 16A 2P+E
UK01425 1 230V 32A 2P+E
UK01426 1 400V 16A 3P+N+E
UK01427 1 400V 32A 3P+N+E

Interlocked Switched Outlet with RCD and MCB

Part No. Sockets Voltage Rating Configuration Protection Front Cover Dim. Table
UK01428 1 230V 16A 2P+E RCD main switch + MCB per socket Lockable 3
UK01429 2 230V 16A 2P+E RCD main switch + MCB per socket Lockable 3
UK01430 1 230V 32A 2P+E RCD main switch + MCB per socket Lockable 3
UK01431 2 230V 32A 2P+E RCD main switch + MCB per socket Lockable 3
UK01432 1 400V 16A 3P+N+E RCD main switch + MCB per socket Lockable 3
UK01433 1 400V 32A 3P+N+E RCD main switch + MCB per socket Lockable 3

Socket Outlets with RCBO

Part No. Sockets Voltage Rating Configuration Protection Front Cover Dim. Table
UK01434 2 230V 16A 2P+E RCBO per outlet Lockable 3
UK01435 4 230V 16A 2P+E RCBO per outlet Lockable 3

Dimensions Table

Pre-Wired Dimensions
