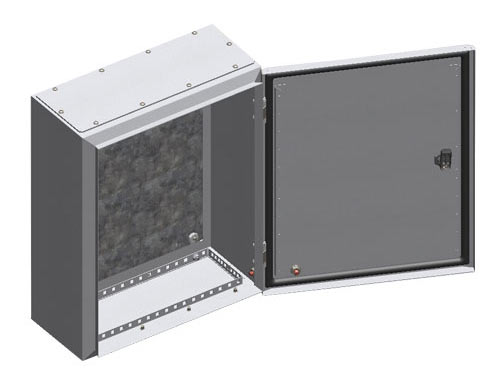

Tempa Pano EKO Wall Mounted Enclosures



Tempa Pano EKO Range

The EKO range of wall mounted enclosures is a cost effective wall mounted enclosure..

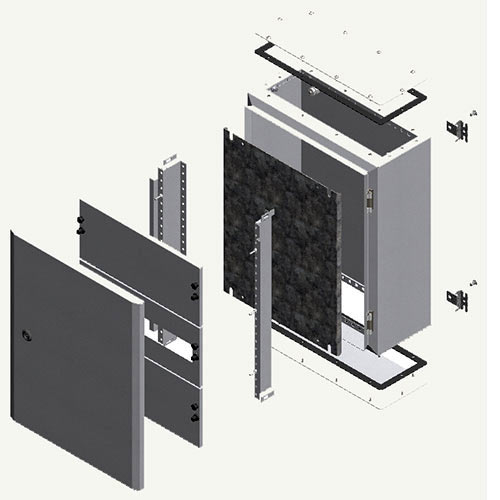

EKO Enclosure Features

  • Sheet steel enclosure : 1.2 – 1.5 mm
    • door : 1.2 – 1.5 mm
    • mounting plate : 2 mm
  • Foamed-in door sealing gasket.
  • Top and bottom gland plates.
  • Concealed hinges.
  • 170° door opening.
  • IP 65 protection (TS 3033, EN 60529).
  • Powder coating (RAL 7032w).
  • Galvanized mounting plate.

Technical Characteristics

Material Enclosure : DIN EN 10130 DC01 CCRS

Mounting Plate : DIN EN 10327 DX51D+Z, Galvanized
Thickness Enclosure : 1.2 / 1.5 mm Acc. to Ext. Dim.

Door : 1.2 / 1.5 mm Acc. to Ext. Dim.

Mounting Plate : 2 mm
Surface Finishing RAL7035w Powder Coating
IP Rating IP65 (TS 3033, EN 60529)
Others Plain Door

Foamed-in Door Sealing Gasket

155° Concealed Hinges

5 mm Double-bit Insert Polyamide Lock

Quarter-Turn or Escutcheon Rod Latch Type (Acc. To Ext. Dim.)

Top and Bottom Gland Plates

One Piece PE Gasket for Gland Plates
Package Includes Box

Door (Acc. to Implementary Code)

Mounting Plate (If stated in Implementary Code)

2 pcs Gland Plates

Standard Cover Plate Profile Set (If stated in Implementary Code)

4/6 pcs Wall Brackets (Acc. to Ext. Dim.)



Ordering Information

Wall Mounted Tempa Pano Enclosures

Width Height Depth Part No.
200 300 150 EKO.110.02 03 15
300 300 150 EKO.110.03 03 15


200 EKO.110.03 03 20

400 150 EKO.110.03 04 15


200 EKO.110.03 04 20
400 300 150 EKO.110.04 03 15

400 200 EKO.110.04 04 20

500 150 EKO.110.04 05 15


200 EKO.110.04 05 20

600 200 EKO.110.04 06 20


300 EKO.110.04 06 30
500 500 200 EKO.110.05 05 20

600 200 EKO.110.05 06 20

700 200 EKO.110.05 07 20


300 EKO.110.05 07 30
600 400 200 EKO.110.06 04 20

600 200 EKO.110.06 06 20


300 EKO.110.06 06 30

800 200 EKO.110.06 08 20


300 EKO.110.06 08 30

1000 200 EKO.110.06 10 20


300 EKO.110.06 10 30

1150 300 EKO.110.06 11 30
800 600 200 EKO.110.08 06 20
800 800 300 EKO.110.08 08 30

1000 300 EKO.110.08 10 30

1200 300 EKO.110.08 12 30

1200 400 EKO.110.08 12 40
1000 1000 300 EKO.110.10 10 30*

1200 300 EKO.110.10 12 30*

1200 400 EKO.110.10 12 40*

*Double Door
