Erico Copper Busbars

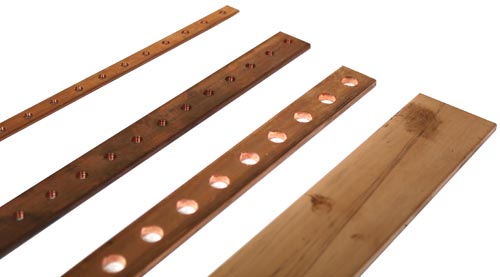

Erico Copper BusbarsThe Erico Eriflex range of copper busbars offers more than 50 types of electrolytic copper bars – plain, punched or threaded. Earthing parts are also offered.

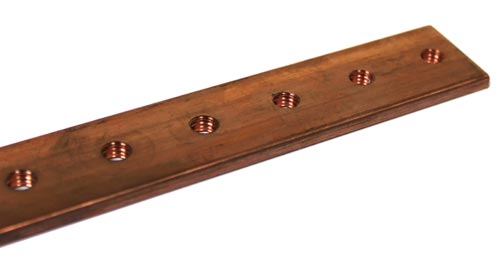

Erico Threaded Busbars

  • Electrolytic copper
  • Rounded corners
  • Thickness – from 2 to 10 mm
  • Length – from 1000 to 2000 mm

Erico Threaded Copper Busbars

ORDER CODE WIDTH (mm) DEPTH (mm) LENGTH (mm) HOLE SIZE
549230 12 2 1000 M5
550200 12 4 1000 M5
549200 18 4 1000 M8
549210 25 4 1000 M6
550190 12 4 2000 M5
549220 12 5 1000 M5
550210 15 5 1000 M6
550220 20 5 1000 M6
550230 32 5 1000 M6
549000 15 5 2000 M6
549010 20 5 2000 M6
549020 30 5 2000 M6
549030 32 5 2000 M6
550290 20 10 1000 M8
550180 30 10 1000 M8
550160 30 10 2000 M8

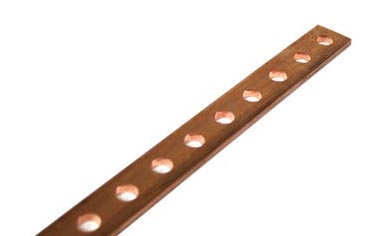

Erico Punched Copper BusbarsPunched & Plain Busbars

  • Design and assembly time-saving
  • Current – up to 7400 A
  • Thickness – from 4 to 40 mm
  • Length – from 1000 to 4000 mm



Erico Punched Copper Busbar

ORDER CODE WIDTH (mm) DEPTH (mm) LENGTH (mm) HOLE SIZE (mm)
550400 25 5 1750 10.5
550410 50 5 1750 10.5
550420 63 5 1750 10.5
550430 80 5 1750 10.5
550440 100 5 1750 10.5
550450 125 5 1750 10.5
550350 50 10 1750 10.5
550360 60 10 1750 10.5
550370 80 10 1750 10.5
550380 100 10 1750 10.5
550390 120 10 1750 10.5

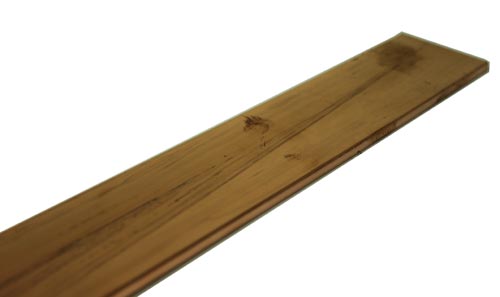

Erico Plain Copper Busbars

Erico Plain Copper Busbar

ORDER CODE WIDTH (mm) DEPTH (mm) LENGTH (mm)
550780 12 4 1000
550790 12 4 2000
550770 12 5 2000
549600 25 5 2000
549610 50 5 2000
549620 63 5 2000
549630 80 5 2000
549640 100 5 2000
549650 125 5 2000
549700 30 10 2000
549710 40 10 2000
549720 50 10 2000
549730 60 10 2000
549740 80 10 2000
549750 100 10 2000
549760 120 10 2000

Earthing Parts

  • Quick and easy connections
  • Large and versatile range
  • Connections – from 2.5 to 35 mm2
