380TQ and 680TQ HOFR Cable

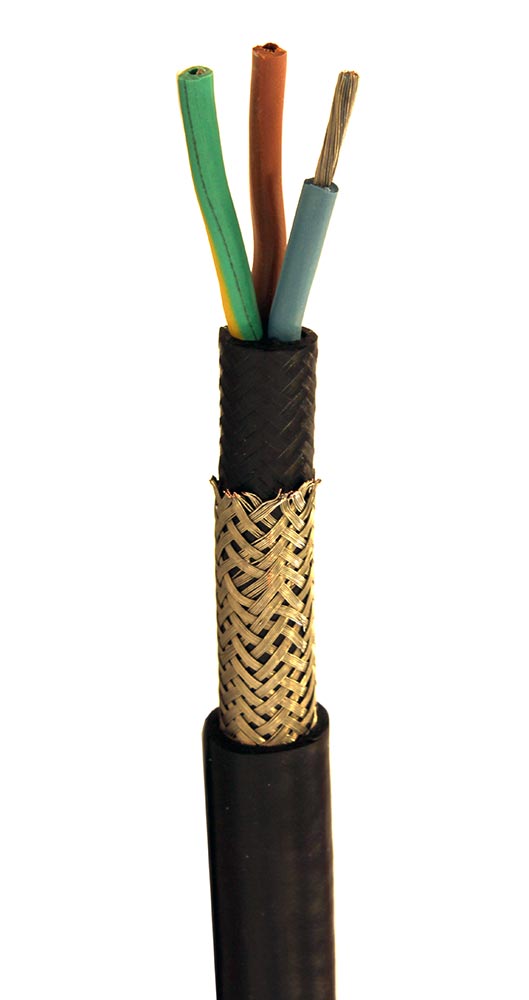

    380TQ Braided Cable

    Flexible tinned annealed copper conductors, Ethylene Propylene (EP). Rubber insulated / chlorosulphonated polyethylene (CSP) bedded / tinned copper wire braid (TCWB) / Chlorosulphonated polyethylene (CSP) sheathed. 300 / 500 volts grade to BS6500 (where applicable) and 450 / 750 volts grade to BS6007 (where applicable).

    Operating temperature: Maximum : 85oC; Minimum flexing : -20oC
    HOFR: Heat and oil resistant, flame retardant
    Standard colour: Black
    Sheath colour Single to five core : black or white

    		Six core and above : black
    Voltage Grade: Sizes up to and including 2.5sq. mm - 300 / 500 volts grade generally in accordance with BS6500. Ref. 380TQ

    		Sizes 4 sq mm and above - 450 / 750 volts grade generally in accordance with BS6007. Ref 680TQ.
    Conductor identification: Two core: brown and blue

    		Three core: brown, blue and green / yellow

    		Four core: brown, blue, black and green / yellow

    		Five core: brown, blue, 2 black and green / yellow

    		Six core and above: white insulation with black numerals
    Minimum bending radius: 8 x overall diameter for cables below 25mm and 10 x overall diameter for cables above 25mm

    Cable Ordering

    Size SQ MM Diameter over conductor MM RT of insulation MM Diameter over core MM Diameter over laid up cores MM RT of bedding MM Diameter over bedding MM Diameter of Braid Wire MM Diameter over braid MM Nominal Overall Diameter MM Weight KG / KM

    2 Core REF. 3802TQ or 6802TQ
    0.75 1.14 0.6 2.4 4.8 0.8 6.4 0.2 7.4 9.7 149
    1.0 1.32 0.6 2.6 5.2 0.9 7.0 0.2 8.0 10.3 169
    1.5 1.60 0.8 3.3 6.6 1.0 8.6 0.2 9.6 12.3 236
    2.5 2.00 0.9 3.9 7.8 1.1 10.0 0.2 11.0 13.9 307
    4 2.60 1.0 4.7 9.4 2.0 13.5 0.2 14.5 19.8 578

    Size Sq. MM Diameter over laid up cores MM RT of bedding MM Diameter over Bedding MM Diameter of braid wire MM Diameter over braid MM Nominal overall Diameter MM Weight KG / KM

    3 Core Ref 3803TQ or 6803TQ
    0.75 5.2 0.9 7.0 0.2 8.0 10.3 170
    1.0 5.7 0.9 7.5 0.2 8.5 11.0 196
    1.5 7.2 1.1 9.4 0.2 10.4 13.1 274
    2.5 8.5 1.2 10.9 0.2 11.9 15.0 366
    4 10.2 2.2 14.6 0.2 15.6 21.3 684
    6 12.3 2.4 17.1 0.3 18.6 24.8 955
    10 15.3 3.1 21.5 0.3 23.0 30.7 1450
    16 17.7 3.3 24.3 0.3 25.8 33.8 1840
    25 21.6 3.6 28.8 0.4 30.8 39.6 2620

    4 Core Ref 3804TQ or 6804TQ
    0.75 5.8 0.9 7.6 0.2 8.6 11.1 198
    1.0 6.3 1.0 8.3 0.2 9.3 11.8 227
    1.5 8.0 1.1 10.2 0.2 11.2 14.1 319
    2.5 9.5 1.3 12.1 0.2 13.1 16.4 441
    4 11.4 2.3 16.0 0.3 17.5 23.6 874
    6 13.8 2.6 19.0 0.3 20.5 27.1 1147
    10 17.2 3.3 23.8 0.3 25.3 33.3 1730
    16 19.8 3.5 26.8 0.4 28.8 37.2 2310
    25 24.2 3.8 31.8 0.4 33.8 43.2 3170
    35 27.7 4.1 35.9 0.4 37.9 47.9 3990
    50 32.9 4.6 42.1 0.4 44.1 55.1 5320

    5 Core Ref 3805TQ
    0.75 6.5 1.0 8.5 0.2 9.5 11.9 233
    1.0 7.1 1.0 9.1 0.2 10.1 12.7 272
    1.5 9.0 1.2 11.4 0.2 12.4 15.4 373
    2.5 10.6 1.3 13.2 0.2 14.2 17.4 502

    6 Core Ref 3806TQ
    0.75 7.3 1.1 9.5 0.2 10.5 13.1 272
    1.5 10.0 1.3 12.6 0.2 13.6 16.8 438
    2.5 11.8 1.4 14.6 0.2 15.6 19.2 593

    8 Core Ref 3808TQ
    0.75 8.8 1.2 11.2 0.2 12.2 15.2 350
    1.5 12.1 1.5 15.1 0.2 16.1 19.7 575
    2.5 14.3 1.7 17.7 0.3 19.2 23.4 856

    12 Core Ref 380 / 12TQ
    0.75 10.0 1.3 12.6 0.2 13.6 16.8 449
    1.5 13.8 1.6 17.0 0.3 18.5 22.5 775
    2.5 16.3 1.8 19.9 0.3 21.4 26.0 1060

    16 Core Ref 380 / 16TQ
    0.75 11.3 1.4 14.1 0.2 15.1 18.5 544
    1.5 15.6 1.8 19.4 0.3 20.9 25.3 1010
    2.5 18.4 2.0 22.4 0.3 23.9 28.9 1330

    20 Core Ref 380 / 20TQ
    0.75 12.9 1.5 15.9 0.3 17.4 21.2 713
    1.5 19.9 2.1 24.1 0.3 25.6 30.8 1430
    2.5 23.5 2.4 28.3 0.4 30.3 36.3 2140

    25 Core Ref 380 / 25TQ
    0.75 14.5 1.7 17.9 0.3 19.4 23.6 866
    1.5 19.9 2.1 24.1 0.3 25.6 30.8 1430
    2.5 23.5 2.4 28.3 0.4 30.3 36.3 2140

    30 Core Ref : 380 / 30TQ
    0.75 15.5 1.8 19.1 0.3 20.6 25.0 986
    1.5 21.2 2.2 25.6 0.4 27.6 33.2 1760
    2.5 25.1 2.6 30.3 0.4 32.3 38.7 2440
