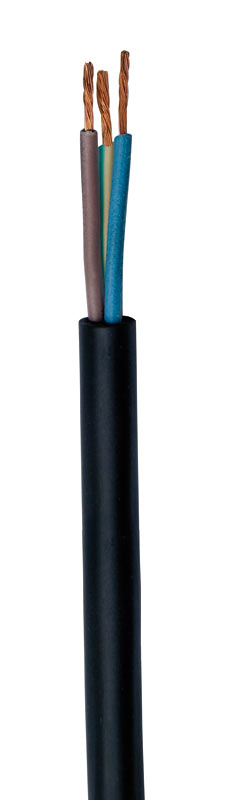

H07RN-F Cable

HO7RN-F Cable

H07RN-F Cable (BS7919:2001)

The H07RN-F is designed primarily as a trailing cable for use in the supply of energy for portable or mobile equipment. Heavy duty Harmonized cables are not only robust but also extremely flexible. PCP neoprene is also oil and flame retardant. Typical applications of the H07RN-F cable include transformers, pumps, welders, grinders, temporary lighting cable and feed cables to heavy mobile equipment.

Technical Information

Stranding: Class 5 - fine copper wire strands manufactured to IEC 60228 (previously BS6360)
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: Black neoprene (PCP) outer sheath to BS7919:2001
Voltage: Working: 450/750V
Test: 3000V
Temperature Range: -25°C to +90°C
Ambient Temperature: 30° C
Operating Temperature: 60°C
Minimum Bending Radius: 6 x Ø for cables not exceeding 25mm

Static: 8 x Ø for cables exceeding 25mm

Flexing: 15 x Ø

Conductor Identification

Use the link on the part number to buy online.

Single Core: Black
Two Core: Brown and Blue
Three Core: Brown, Blue and Green/Yellow
Four Core: Brown, Black, Grey and Green/Yellow
Five Core: Brown, Blue, Black, Grey and Green/Yellow
Core and size mm2 Nominal O/Dia mm Weight kg/km
1 x 1.5 7.0 59
1 x 2.5 8.0 74
1 x 4 9.0 99
1 x 6 9.8 129
1 x 10 11.9 200
1 x 16.0 12.0 260
1 x 25.0 14.0 369
1 x 35.0 15.9 500
1 x 50.0 18.3 689
1 x 70.0 20.7 918
1 x 95.0 23.4 1,202
1 x 120.0 25.8 1,489
1 x 150.0 28.3 1,824
1 x 185.0 31.0 2,202
1 x 240.0 34.5 2,847
1 x 300.0 37.7 3,495
2 x 1.5 9.4 116
2 x 2.5 11.0 164
2 x 4.0 12.8 232
2 x 6.0 14.2 297
2 x 10.0 20.4 573
2 x 16.0 23.0 774
2 x 25.0 27.4 1,110
2 x 35.0 30.8 1,474
3 x 1.5 10.3 141
3 x 2.5 11.8 200
3 x 4.0 13.7 285
3 x 6.0 15.2 371
3 x 10.0 21.9 712
3 x 16.0 24.7 971
3 x 25.0 29.4 1,394
3 x 35.0 32.8 1,850
4 x 1.5 11.2 174
4 x 2.5 12.6 249
4 x 4.0 15.1 361
4 x 6.0 16.9 480
4 x 10.0 24.0 890
4 x 16.0 27.0 1,225
4 x 25.0 32.6 1,792
4 x 35.0 36.5 2,380
4 x 50.0 42.0 3,635
4 x 70.0 49.0 4,830
4 x 95.0 55.0 6,320
5 x 1.5 12.3 218
5 x 2.5 14.5 309
5 x 4.0 16.9 450
5 x 6.0 18.8 595
5 x 10.0 26.5 1100
5 x 16.0 30.0 1528
5 x 25.0 36.0 2200
5 x 35.0 40.0 2925
7 x 1.5 14.6 295
7 x 2.5 16.6 410
12 x 1.5 18.9 500
12 x 2.5 22.0 720
19 x 1.5 22.5 715
19 x 2.5 26.0 1030
24 x 1.5 25.0 900
24 x 2.5 29.0 1,350
27 x 1.5 29.0 1,100
27 x 2.5 33.0 1,521
37 x 1.5 29.8 1,300
37 x 2.5 36.0 1,900

For current ratings refer to IEE Regulations tables 4F1 A and B
