H01N2-D and H01N2-E Welding Cable

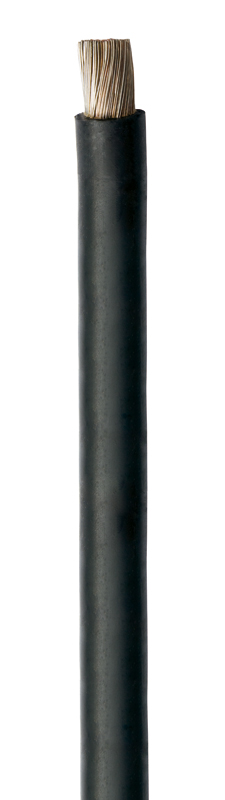

H01N2-E Crane and Welding Cable

Cable Application

Welding cable suitable for connecting cable between the hand electrode and the welding apparatus. Suitable for flexible use under adverse conditions such as automobile and ship manufacturing conveyors welding robots assembly lines etc. This cable maintains its high flexibility even when exposed to inert gas, ozone, light, oil etc. Suitable for use in dry and moist rooms as well as for outdoor installation.

Technical Information

Conductor: Plain copper conductors
Separator: Polyester foil or tape
Outer Sheath: Neoprene black
Stranding H01N2-D: According to VDE 0295 class 5
Voltage: Working: Test: 100V 1000V
Temperature Range: Flexing: Static: -25°C to + 80°C -40°C to +80°C
Bending Radius: H01N2-D: 12 x Ø
H01N2-E: 10 x Ø

Number of cores and cross section mm2 Outer diameter ca. mm Max O.D. Copper weight kg/100m Weight kg/100m

H01N2-D

10.00 10.0 9.60 14.00
16.00 11.5 15.40 21.00
25.00 13.0 24.00 30.00
35.00 14.50 33.60 41.00
50.00 17.0 48.00 56.00
70.00 19.0 67.20 79.00
95.00 21.5 91.20 105
120.00 24.0 115.20 130.00
150.00 26.0 144.00 163.00
185.00 29.0 177.60 191.60

H01N2-E with extreme high flexibility

10.00 8.40 9.60 11.90
16.00 9.50 15.40 18.10
25.00 11.00 24.00 27.00
35.00 12.50 33.60 36.30
50.00 15.00 48.00 52.80
70.00 17.00 67.20 71.60
95.00 19.50 91.20 101.20
120.00 21.50 115.20 109.00

Click to download our Catalogue PDF for H01N2-D and H01N2-E Welding Cable
