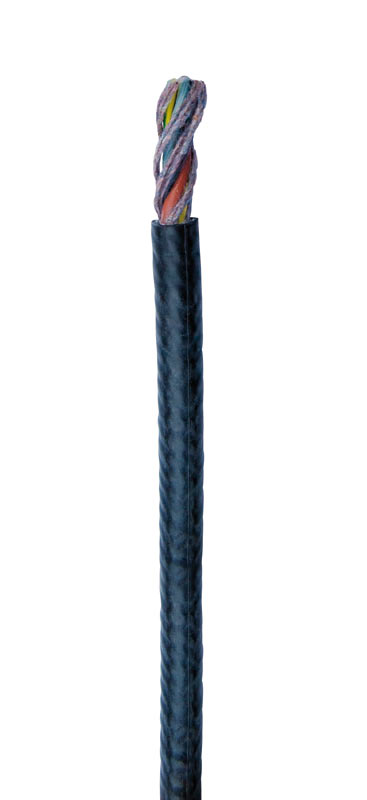

NSHTÖU-J Drum Reeling Cable

NSHTÖU-J Drum Reeling Cable

Cable Application

NSHTOU-J drum reeling cable is suitable for frequent winding and un-winding operations. Designed for use with heavy equipment such as cable reels, hoists, lifts, conveyors and cranes with travelling speeds up to 120 m/min. Suitable for dry, humid and wet rooms, for outdoor use and on construction sites, in commercial and agricultural plants. Used in the roughest conditions the robust cable is resistant to most oils, fats, solvents, acids and is suitable for use in all-weather conditions.

Technical Information

Conductor: Class 5 - flexible tinned copper
Earth Conductor: Green/yellow
Core Insulation: Rubber
Cores: Twisted in layers
Core Marking: Up to 5 cores: colour coded in accordance to VDE 0293

7 cores and over: black with printed consecutive number coding
Outer Sheath: Black made of neoprene with incorporated vulcanised fabric braiding
Strand Structure: According to VDE 0295, class 5 or 6
Voltage: Working:
Test:
1000V
3000V
Temperature Range: -40°C to + 70°C
Bending Radius Drums: 12.5 x Ø
Reversing rolls: 15 x Ø

Cores Cross section mm2 Outer diameter mm (Min - Max) Copper weight kg/100m Weight kg/100m
4 1.5 12.2 - 15.6 5.8 210
5 1.5 13.4 - 16.5 7.2 250
7 1.5 16.2 - 19.0 10.5 38
12 1.5 20.0 - 21.9 19.6 55
18 1.5 22.4 - 25.0 27.1 73
24 1.5 25.4 - 28.6 39.2 950
30 1.5 27.7 - 29.6 45.0 114.5
42 1.5 32.1 - 35.3 64.6 156.0
4 2.5 15.3 - 17.7 9.6 32
5 2.5 16.2 - 18.8 12.3 28
7 2.5 18.5 - 22.1 18 51.0
12 2.5 22.7 - 25.1 30.8 74.0
18 2.5 25.8 - 28.7 45.1 102.0
24 2.5 30.1 - 33.2 61.6 141.0
30 2.5 31.9 - 34.4 77.1 157
45 2.5 42.5 - 47.0 111.4 307.0
50 2.5 43.9 - 49.0 120 320
4 4 17.0 - 19.2 120.0 43
5 4 18.2 - 20.4 20 49
4 6 18.4 - 20.6 24.1 53
5 6 20.4 - 23.2 29.6 65.0
4 10 22.8 - 24.9 40.4 84.0
5 10 24.4 - 26.7 52.8 119
4 16 25.1 - 29.9 64.5 119.0
5 16 27.1 - 31.4 84.4 146.0
4 25 32.2 - 35.5 100.5 194
4 35 34.4 - 38.3 138.2 222
4 50 39.9 - 42.9 202 301
4 70 44.2 - 48.7 283.3 399.0
4 95 50.6 - 57.3 384.5 536.0
4 120 56.5 - 62.0 485.7 679
4 150 62.6 - 67.5 592.3 970.0
