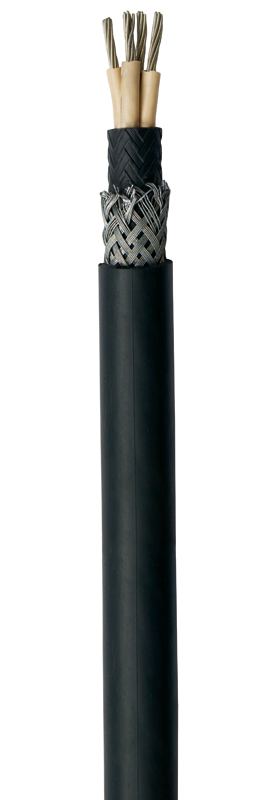

658TQ Cable

658TQ Ship and Oil Rig CableApplication

Designed for use in offshore environments where mechanical protection is required eg. for fixed wing in ships, drilling rigs and oil platforms.

Technical Information

Conductor Stranding: Class 2 - stranded tinned annealed copper IEC 60228/BS 6360
Insulation: EPR (Ethylene Propylene Rubber)
Armour: GSWB (Galvanized steel wire braid)
Sheath/Jacket: Low Smoke Halogen Free (LSHF) Type: SW4
Sheath Colour: Black
Ref: 658TQ
Standard: BS 6883
Voltage: 600/1000V
Operating Temperature: Maximum: 85°C Minimum Bending: -25°

Conductor Identification

White cores with black numbers

Size mm2 Nominal diameter over laid up cores mm Nominal diameter over bedding mm Diameter of braid wire mm Nominal overall diameter mm Weight kg/km

6582TQ Galvanised Steel Wire Braid - Two Core


1.0 5.6 8.0 0.3 12.1 230
1.5 6.2 8.6 0.3 12.7 250
2.5 7.2 9.8 0.3 13.9 305
4 9.2 12.0 0.3 16.3 420
6 10.4 13.1 0.3 17.6 515
10 13.0 16.0 0.3 20.7 725
16 15.0 18.3 0.3 23.4 975
25 19.2 22.9 0.3 28.1 1,340
35 21.0 24.7 0.3 30.1 1,540
50 24.2 28.4 0.45 35.1 2,140
70 27.8 32.3 0.45 39.3 2,820
95 32.2 37.0 0.45 44.4 3,690
120 35.6 40.8 0.45 48.5 4,380
150 39.6 45.1 0.45 53.4 5,360
185 44.0 50.0 0.45 58.8 6,550
240 50.0 56.6 0.45 65.8 8,310
300 55.8 62.7 0.45 72.7 10,200

6583TQ Galvanised Steel Wire Braid - Three Core

1.0 6.2 8.4 0.3 12.5 245
1.5 6.9 9.3 0.3 13.4 280
2.5 7.9 10.4 0.3 14.7 360
4 10.1 12.7 0.3 17.0 475
6 11.4 13.9 0.3 18.4 586
10 14.2 17.2 0.3 22.1 860
16 16.4 19.5 0.3 24.6 1,150
25 20.8 24.4 0.3 29.8 1,640
35 22.8 26.5 0.45 33.1 2,030
50 26.2 30.3 0.45 37.2 2,640
70 30.1 34.7 0.45 41.9 3,480
95 34.8 39.7 0.45 47.6 4,650
120 38.5 43.8 0.45 52.0 5,540
150 42.8 48.4 0.45 57.9 6,770
185 47.5 53.9 0.45 62.9 8,310
240 54.0 61.1 0.45 70.6 10,680
300 60.2 67.6 0.45 77.9 13,100

6584TQ Galvanised Steel Wire Braid - Four Core


1.0 7.0 9.3 0.3 13.4 300
1.5 7.8 10.1 0.3 14.2 320
2.5 9.0 11.4 0.3 15.7 410
4 11.4 13.9 0.3 18.4 570
6 12.9 15.4 0.3 20.1 720
10 16.0 18.9 0.3 24.0 1,050
16 18.4 21.7 0.3 26.9 1,410
25 23.5 25.8 0.45 33.6 2,160
35 25.7 27.8 0.45 36.1 2,510
50 29.5 32.0 0.45 41.0 3,290
70 33.9 36.1 0.45 46.1 4,410
95 39.2 42.1 0.45 52.6 5,880
120 43.4 45.8 0.45 57.4 7,050
150 48.0 50.5 0.45 63.1 8,620
185 53.4 56.1 0.45 69.6 10,620
240 60.7 65.8 0.45 78.3 13,580
300 67.7 73.5 0.45 82.6 16,760

6585TQ Galvanised Steel Wire Braid - Five Core

1.5 8.7 11.0 0.3 15.6 370
2.5 10.0 12.6 0.3 17.4 470
4 12.7 15.3 0.3 20.3 680

6586TQ Galvanised Steel Wire Braid - Six Core

1.5 9.6 12.2 0.3 17.0 420
2.5 11.1 13.7 0.3 18.5 545
4 14.1 16.7 0.3 21.7 765

6588TQ Galvanised Steel Wire Braid - Eight Core


1.5 10.5 13.3 0.3 18.1 545
2.5 12.3 15.5 0.3 20.5 735
4 15.4 18.5 0.3 23.7 1,000

658/12TQ Galvanised Steel Wire Braid - Twelve Core

1.5 13.1 16.7 0.3 21.7 685
2.5 15.2 18.8 0.3 24.0 919
4 19.1 22.6 0.3 28.2 1,240

658/16TQ Galvanised Steel Wire Braid - Sixteen Core


1.5 14.8 17.9 0.3 23.1 791
2.5 17.2 20.5 0.3 25.9 840

658/20TQ Galvanised Steel Wire Braid - Nineteen Core

1.5 15.7 18.7 0.3 23.9 871
2.5 18.3 21.5 0.3 26.9 1,190

658/21TQ Galvanised Steel Wire Braid - Twenty One Core

1.5 16.8 20.0 0.3 25.4 984
2.5 19.5 22.9 0.3 28.5 1.320

658/24TQ Galvanised Steel Wire Braid - Twenty Four Core

1.5 18.8 22.3 0.3 27.9 1,130
2.5 21.9 25.6 0.45 32.2 1,650

658/27TQ Galvanised Steel Wire Braid - Twenty Seven Core

1.5 19.3 22.7 0.3 28.3 1,210
2.5 22.4 26.0 0.45 32.6 1,760

Click to download our Catalogue PDF for 658TQ Cable
