Drakaflex H07RN-F Cable

Draka Drakaflex H07RN-F Cable

The Drakaflex H07RN-F cable is a recognised quality brand within the market place and remains so since Draka was absorbed into the Prysmian Group.

Drakaflex H07RN-F Cable Applications

  • Flexible connection of electrical equipment, like machines, engines, tools and other appliances in factories and workshops, in situations where medium mechanical stress occurs
  • The multicore types are very suitable as control cables for the connection of portable electrical appliances, especially when the cords have to endure rough usage
  • Suitable for use in dry, damp and wet rooms and outdoors; e.g. on farms for large cooking vats, heating plates; hand lamps, electric tools such as drilling machines, circular saws, home-workers´equipment; also for transportable motors or machines on construction sites or farms
  • The Drakaflex can also be suitable for permanent laying e.g. on plaster, in temporary structures and barracks; permissible for direct laying on components of hoists, machines, etc.
  • When permanently laid with protection in conduits or in equipment these cables may be used as rotor connecting cable of motors with a rated voltage up to 1000 V AC or a DC voltage up to 750 V to earth.
Draka Drakaflex H07RN-F Cable

General Cable Properties

  • Very flexible
  • Strong and abrasion-resistant sheath
  • Excellent resistance to oil and greases
  • Good resistance to weather influences (including ozone)
  • Moderate waterproof (for water resistant applications choose NWPK AQUA)

Technical Specifications

Approvals: HD 22.1 and HD 22.4; DIN VDE 0282 P 1 and P 4 NEN-EN 50525; HD 22; NEN-EN-IEC 60332-1
Conductor: Flexible tinned copper (class 5) acc. to HD 383 S2 / DIN VDE 0295
Assembly: Cores cabled together
Insulation: Rubber compound acc. to HD 22.1 / DIN VDE 0282 part 1
Core Colours: 1 core: black 2 cores : brown / blue 3 cores : brown, blue, green-and-yellow 4 cores: brown, black, grey, green-and-yellow 5 cores: brown, black, grey, blue, green-and-yellow Multicores: one core green-and-yellow, one core blue, other cores black
Nominal Voltage: 450/750 V
Fire Performance: Self-extinguishing in accordance with NEN-EN-IEC 60332-1 / acc. to EN 50265-2-1
Oil resistance: acc. to EN 60811-2-1
UV-resistant: Cable is UV-resistant
Sheath Colour: Black

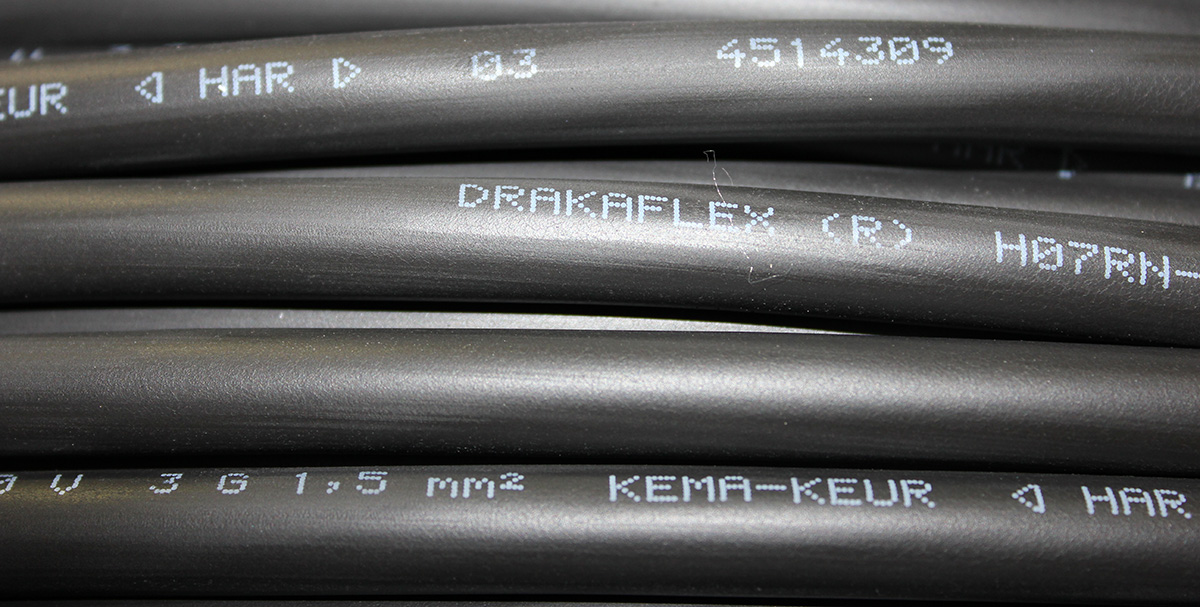

Sheath marking: White
Sheath: Rubber, compound acc. to HD 22.1 / DIN VDE 0282 Part 1
Inner Sheath: Rubber, compound acc. to HD 22.1 / DIN VDE 0282 part 1
Minimum Installation Temperature: -25°C
Maximum conductor temperature: +60°C in normal duty; +85°C maximum
Operating temperature: min. -25°C, max. +50°C

Drakaflex H07RN-F Cable Ordering

Number of cores x nominal cross section Conductor diameter approx Resistance max 20°C* Insulation wall thickness nominal value Core Diameter Approx. Inner sheath wall thickness nom. value Outer sheath wall thickness nom. value Outside diameter min./max. Approx Weight
mm2 mm Ω/km mm mm mm mm mm kg/km
1 x 1.5 1.5 13.3 0.8 3.2 - 1.4 5.7-6.7 60
2 x 1.5 Â 1.5 13.3 0.8 3.2 - 1.5 8.5-10.5 120
3 G 1.5 1.5 13.3 0.8 3.2 - 1.6 9.2-11.2 170
4 G 1.5 1.5 13.3 0.8 3.2 - 1.7 10.2-12.5 210
5 G 1.5 1.5 13.3 0.8 3.2 - 1.8 11.2-13.5 260
7 G 1.5 1.5 13.3 0.8 3.2 1.0 1.6 14.0-17.0 360
12 G 1.5 1.5 13.3 0.8 3.2 1.2 1.7 17.6-20.5 515
19 G 1.5 1.5 13.3 0.8 3.2 1.4 2.1 20.7-26.3 795
24 G 1.5 1.5 13.3 0.8 3.2 1.4 2.1 24.3-28.5 920
1 x 2.5 2.0 7.98 0.9 3.9 - 1.4 6.3-7.5 75
2 x 2.5 2.0 7.98 0.9 3.9 - 1.7 10.2-12.5 170
3 G 2.5 2.0 7.98 0.9 3.9 - 1.8 10.9-13.0 230
4 G 2.5 2.0 7.98 0.9 3.9 - 1.9 12.1-14.5 290
5 G 2.5 2.0 7.98 0.9 3.9 - 2.0 13.3-16.0 360
7 G 2.5 2.0 7.98 0.9 3.9 1.1 1.7 17.0-20.0 510
12 G 2.5 2.0 7.98 0.9 3.9 1.2 1.9 20.6-23.5 740
19 G 2.5 2.0 7.98 0.9 3.9 1.5 2.2 24.4-30.9 1190
24 G 2.5 2.0 7.98 0.9 3.9 1.6 2.3 28.8-33.0 1525
1 x 4 2.5 4.95 1.0 4.6 - 1.5 7.2-8.5 100
2 x 4 2.5 4.95 1.0 4.6 - 1.8 11.8-14.5 195
3 G 4 2.5 4.95 1.0 4.6 - 1.9 12.7-15.0 305
4 G 4 2.5 4.95 1.0 4.6 - 2.0 14.0-17.0 400
5 G 4 2.5 4.95 1.0 4.6 - 2.2 15.6-19.0 505
1 x 6 3.1 3.30 1.0 5.2 - 1.6 7.9-9.5 130
2 x 6 3.1 3.30 1.0 5.2 - 2.0 13.1-16.0 285
3 G 6 3.1 3.30 1.0 5.2 - 2.1 14.1-17.0 380
4 G 4 2.5 4.95 1.0 4.6 - 2.0 14.0-17.0 400
5 G 4 2.5 4.95 1.0 4.6 - 2.2 15.6-19.0 505
1 x 6 3.1 3.30 1.0 5.2 - 1.6 7.9-9.5 130
2 x 6 3.1 3.30 1.0 5.2 - 2.0 13.1-16.0 285
3 G 6 3.1 3.30 1.0 5.2 - 2.1 14.1-17.0 380
4 G 6 3.1 3.30 1.0 5.2 - 2.3 15.7-19.0 550
5 G 6 3.1 3.30 1.0 5.2 - 2.5 17.5-21.0 660
1 x 10 4.1 1.91 1.2 6.6 - 1.8 9.5-11.5 195
2 x 10 4.1 1.91 1.2 6.6 1.2 1.9 17.7-21.5 565
3 G 10 4.1 1.91 1.2 6.6 1.3 2.0 19.1-22.5 715
4 G 10 4.1 1.91 1.2 6.6 1.4 2.0 20.9-24.5 875
5 G 10 4.1 1.91 1.2 6.6 1.4 2.2 22.9-27.0 1095
1 x 16 5.3 1.21 1.2 7.7 - 1.9 10.8-13.0 280
2 x 16 5.3 1.21 1.2 7.7 1.3 2.0 20.2-23.5 795
3 G 16 5.3 1.21 1.2 7.7 1.4 2.1 21.8-25.5 1040
4 G 16 5.3 1.21 1.2 7.7 1.4 2.2 23.8-28.0 1280
5 G 16 5.3 1.21 1.2 7.7 1.5 2.4 26.4-31.0 1610
1 x 25 6.3 0.780 1.4 9.4 - 2.0 12.7-15.0 405
4 G 25 6.3 0.780 1.4 9.4 1.6 2.5 28.9-33.0 1890
5 G 25 6.3 0.780 1.4 9.4 1.7 2.7 32.0-36.0 2335
1 x 35 7.6 0.554 1.4 10.4 - 2.2 14.3-17.0 545
4 G 35 7.6 0.554 1.4 10.4 1.7 2.7 32.5-36.5 2530
1 x 50 9.2 0.386 1.6 12.6 - 2.4 16.5-19.5 730
4 G 50 9.2 0.386 1.6 12.6 1.9 2.9 37.7-42.0 3350
1 x 70 11.2 0.272 1.6 14.6 - 2.6 18.6-22.0 955
4 G 70 11.2 0.272 1.6 14.6 2.0 3.2 42.7-47.0 4785
1 x 120 14.6 0.161 1.8 18.4 - 3.0 22.8-26.5 1560
4 G 120 14.6 0.161 1.8 18.4 2.4 3.6 53.0-59.0 7550
1 x 150 16.2 0.129 2.0 20.4 - 3.2 25.2-29.0 1925
4 G 150 16.2 0.129 2.0 20.4 2.6 3.9 58.0-64.0 8495
1 x 185 17.9 0.106 2.2 22.5 - 3.4 27.6-31.5 2230
1 x 240 20.6 0.0801 2.4 25.6 - 3.5 30.6-35.0 2945
1 x 300 23.0 0.0641 2.6 28.2 - 3.6 33.5-38.0 3495
1 x 400 26.0 0.0476 2.8 31.8 - 3.8 38.0-42.0 4420
1 x 500 23.0 0.0641 3.0 35.4 - 4.0 33.5-38.0 5515
1 x 630 34.0 0.0287 3.0 40.5 - 4.1 45.5-51.0 7020

*valid for untinned conductors
