Nexans Lineax ® H07RN-F Cable

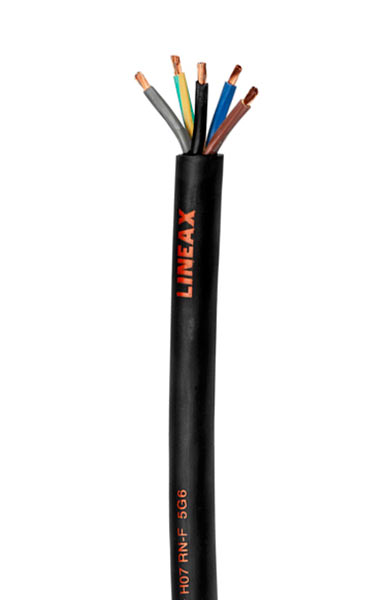

Nexans HO7RN-F Lineax Cable

The HO7RN-F Cable is one of our most popular cables especially for events companies. We supply a number of different branded HO7RN-F cables including the Nexans Lineax ® HO7RN-F. This is a flexible cable and is intended for installations with moving equipment ideal for the events industry and electric appliances for building sites. The cable may be rated 0.6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc. This cable can be used in refrigerating installations. Lineax Cable Installation : This cable can be installed in open air or be buried but with extra mechanical protection.

Cable Characteristics

Conductor material Plain annealed copper
Sheath colour Black
Lead free Yes
Rated Voltage Uo/U (Um) 450 / 750 V
Mechanical resistance to impacts Very good
Cable flexibility Flexible
Chemical resistance Accidental
Water proof Good
Oil resistance Yes
Max. conductor temperature in service 85°C
Operating temperature range : -25 to 55°C
Short-circuit max. conductor temperature +200°C
Rated Voltage (Uo/U (Um) 450 / 750 V

Temperature Range : Max continuous operating conductor temperature in normal use :

  • +60°C ( in every case of mobile installation)
  • +85°C (fixed protected installation)
  • +200°C (in short circuit)

Permissible current rating is measured for an ambient temperature of 30°C and a maximum operating and conductor temperature of 85°C . For other temperature please refer to correction factors.

Cable Standards

  • International : EN 50525-2-21; HD 22.4; HD 516; IEC 60245-4 type 66
  • National : NF C 32-102-4

Nexans Lineax Cables

No. of Cores Cross Section Perm. current rating open air Voltage drop single phase Max. outer diameter Min. outer diameter Approx weight

mm2 A V/A.km mm mm kg/km
1 1.5 23 27.0 7.1 5.7 53
1 2.5 32 16.2 7.9 6.3 69
1 4 43 10.1 9.0 7.2 95
1 6 56 6.7 9.8 7.9 121
1 10 77 3.94 11.9 9.5 182
1 16 102 2.5 13.4 10.8 259
1 25 136 1.68 15.8 12.7 367
1 35 168 1.21 17.9 14.3 485
1 50 203 0.87 20.6 16.5 705
1 70 254 0.64 23.3 18.6 883
1 95 315 0.44 26.0 20.8 1132
1 120 363 0.4 28.6 22.8 1413
1 150 416 0.35 31.4 25.2 1751
1 185 475 0.32 34.4 27.6 2141
1 240 559 0.26 38.3 30.6 2761
1 300 637 0.23 41.9 33.5 3314
1 400 746 0.21 46.8 37.4 4412
1 500 833 0.18 52.0 41.3 5429
1 800 1050 - 59.5 54.1 9061
2 1 18 39.4 10.0 7.7 96
2 1.5 23 27.0 11.0 8.5 118
2 2.5 32 16.2 13.1 10.2 172
2 4 43 10.1 15.1 11.8 235
2 6 56 6.7 16.8 13.1 301
2 10 77 3.94 22.6 17.7 503
2 16 102 2.5 25.7 20.2 761
2 25 136 1.68 30.7 24.3 1067
3 1 18 39.4 10.7 8.3 115
3 2.5 32 16.2 14.0 10.9 208
3 4 43 - 16.2 12.7 284
3 4 43 10.1 16.2 12.7 284
3 6 56 - 18.0 14.1 377
3 6 56 6.7 18.0 14.1 377
3 10 77 - 24.2 19.1 671
3 10 77 3.94 24.2 19.1 671
3 16 102 - 27.6 21.8 929
3 16 102 2.5 27.6 21.8 929
3 25 136 1.68 33.0 26.1 1334
3 35 168 - 37.1 29.3 1790
3 35 168 1.21 37.1 29.3 1790
3 50 203 - 42.9 34.1 2459
3 50 203 0.87 42.9 34.1 2459
3 70 262 0.64 48.3 38.4 3184
3 95 320 0.5 54.0 43.3 4133
3 120 373 0.4 60.0 47.4 5008
3 150 432 0.35 66.0 52.0 6236
3 185 495 0.32 72.0 57.0 7606
3 240 587 0.26 82.0 65.0 9982
4 1 16 - 11.9 9.2 141
4 1.5 21 - 13.1 10.2 175
4 16 92 - 30.1 23.8 1125
4 35 150 - 41.1 32.5 2169
4 120 325 - 66.0 53.0 6342
4 150 373 - 73.0 58.0 7897
4 185 425 - 80.0 64.0 9674
4 240 500 - 91.0 72.0 13143
5 1 16 - 13.1 10.2 182
5 1.5 21 - 14.4 11.2 212
5 35 150 - 45.1 35.8 2675
5 50 182 - 53.0 41.8 3827
5 70 232 - 60.0 47.5 4977
5 95 281 - 67.0 54.0 6440
5 120 325 - 74.0 59.0 7870
7 1.5 15 - 18.7 14.7 337
7 2.5 23 - 22.0 17.3 473
7 4 29 - 25.8 20.3 692
7 10 55 - 34.4 27.3 1397
7 16 74 - 39.8 36.1 1945
12 1.5 11 - 22.4 17.6 499
12 2.5 19 - 26.2 20.6 702
12 2.5 19 - 26.2 20.6 702
12 4 25 - 30.9 24.4 1033
18 1.5 9 - 26.3 20.7 712
18 2.5 14 - 30.9 24.4 1015
24 1.5 8 - 24.3 30.7 960
24 2.5 11 - 28.8 36.4 1355
36 1.5 6 - 27.8 35.2 1290
36 2.5 9 - 33.2 41.8 18835
