2182Y / 2183Y / 3182Y / HO5VV-F / 3183Y / 3192Y / 2192Y Cable

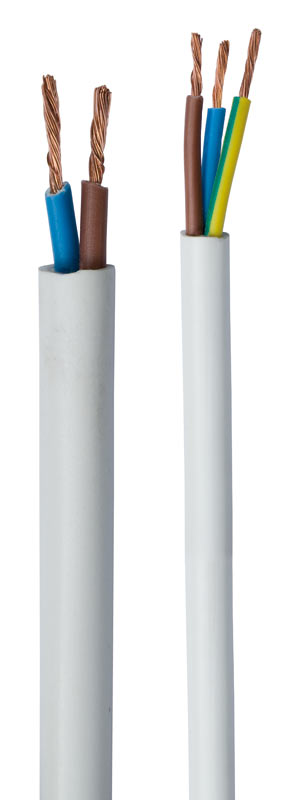

2182Y and 2183Y


For Light Duty Applications

Cable Application

Harmonised 60°C flexible PVC cable designed for night duty applications in the office and on small appliances. Annealed copper conductors PVC insulated, two cores twisted together and oversheathed in PVC type TM2 to form a round cable. Harmonised code number H03VV-F2. 300V rated.


Radial thickness (mm)
CSA (mm2) Construction Current rating Insulation Sheath Nominal diameter (mm) Weight kg/km

2182Y Cable

0.5 16/0.2mm 3 Amps 0.5 0.6 5.4 36
0.75 24/0.2mm 6 Amps 0.5 0.6 5.8 45

Annealed copper conductors PVC insulated, three cores twisted together and oversheathed in PVC type TM2 to form a round cable. Harmonised code number H03VV-F3.



Radial thickness (mm)
CSA (mm2) Construction Current rating Insulation Sheath Nominal diameter (mm) Weight kg/km

2183Y Cable

0.5 16/0.2mm 3 Amps 0.5 0.6 5.6 44
0.75 24/0.2mm 6 Amps 0.5 0.6 6.1 55

Click to download our Catalogue PDF for 2182Y and 2183Y Cable.

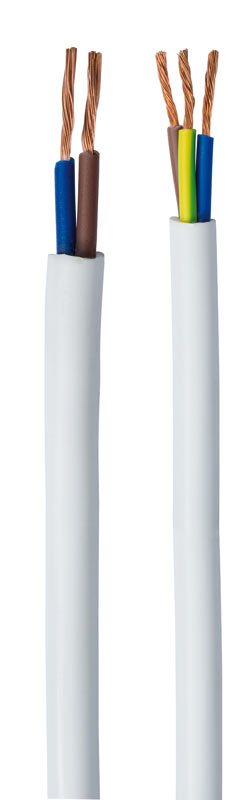

3182Y 3183Y Control Cable

3182Y / H05VV-F Cable Flexible Cord

For Medium Duty Applications

Cable Application

Harmonised 60°C flexible PVC cable designed for medium duty applications in the office and for external connection of portable appliances. Annealed copper conductors PVC insulated, two cores twisted together and oversheathed in PVC type TM2 to form a round cable. Harmonised code number H05VV-F2. 300 - 500V rated.


Radial thickness (mm)
CSA (mm2) Construction Current rating Insulation Sheath Nominal diameter (mm) Weight kg/km

3182Y/H05VV-F Cable

0.5 16/0.2mm 3 Amps 0.6 0.8 6.3 40
0.75 24/0.2mm 6 Amps 0.6 0.8 6.8 63
1.0 32/0.2mm 10 Amps 0.6 0.8 7.2 73
1.25 40/0.2mm 13 Amps 0.7 0.8 7.8 84
1.5 30/0.25mm 15 Amps 0.7 0.8 8.2 95
2.5 50/0.25mm 20 Amps 0.8 1.0 10.0 154

Click to download our Catalogue PDF for 3182Y/H05VV-F and 3183Y Cable.

3183Y Cable

Flexible Cord for Medium Duty Applications

Annealed copper conductors PVC insulated, three cores twisted together and oversheathed in PVC type TM2 to form a round cable. Harmonised code number H05VV-F3 (1.25mm2 National type only).

Use the link on the size to buy online.


Radial thickness (mm)
CSA (mm2) Construction Current rating Insulation Sheath Nominal diameter (mm) Weight kg/km

3183Y Cable






0.75 24/0.2mm 6 Amps 0.6 0.8 6.8 74
1.0 32/0.2mm 10 Amps 0.6 0.8 7.2 86
1.25 40/0.2mm 13 Amps 0.7 0.9 7.8 104
1.5 30/0.25mm 15 Amps 0.7 0.9 8.2 120
2.5 50/0.25mm 20 Amps 0.8 1.1 10.0 180
4.0 56/0.3mm 25 Amps 0.8 1.2 11.9 180

Cable Application

Suitable for domestic use. Annealed copper conductors PVC insulated, two cores twisted together and oversheathed in PVC type flat cable. Harmonised code number H05VVH2-F. 300 - 500V rated


Radial thickness (mm)
CSA (mm2) Construction Current rating Insulation Sheath Nominal diameter (mm) Weight kg/km

3192Y Mains Cable

1.0 32/0.2mm 10 Amps 0.6 0.8 4.6 x 7.2 51

Annealed copper conductors PVC insulated, two cores laid parallel and oversheathed in PVC type flat cable. Harmonised code number H03VVH2-F2. 300V rated.



Radial thickness (mm)
CSA (mm2) Construction Current rating Insulation Sheath Nominal diameter(mm) Weight kg/km

2192Y PVC/PVC 300/300V

0.5 16/0.2mm 3 Amps 0.5 0.6 5.6 44
0.75 24/0.2mm 6 Amps 0.5 0.6 6.1 55

For current ratings refer to IEE Regulations tables 4F3A and B Click to download our Catalogue PDF for 3182Y/H05VV-F and 3183Y Cable.
