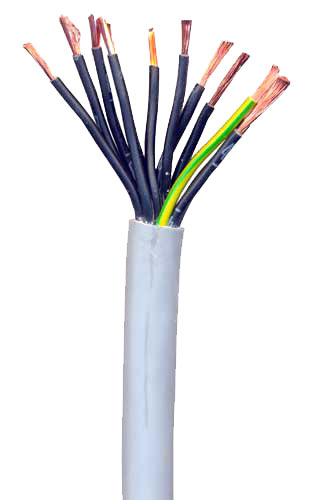

YY-PVC Cable



YY PVC / PVC Number Coded Control Cable

Number Coded Control Cable

Used as connecting cable, as measuring, checking and control cable in machine tool manufacturing, plant engineering and on assembly lines and production lines to meet stringent safety requirements. Suitable for fixed installation or flexible applications with unrestricted mobility without forced movement control and without exposure to tensile load. installation in dry and moist rooms; outdoor installation not permitted.

  • Fine strands of bare copper conductor
  • Stranding acc. to VDE 0295, class 5
  • PVC core insulation black with continuous white figure imprint
  • Earth conductor green / yellow in the outer layer
  • PVC outer sheath grey, RAL 7110
  • Bending radius 15 x ø

Temperature range flexing : -5oC to +80oC static : -40oC to + 80oC

No of cores & mm2 per conductor Approx outer diameter in mm Approx weight kg / km
2 x 0.5 4.8 35
3 G x 0.5 5.1 42
3 x 0.5 5.1 42
4 G 0.5 5.7 54
4 x 0.5 5.7 54
5 G 0.5 6.2 63
5 x 0.5 6.2 63
7 G 0.5 6.7 81
7 x 0.5 6.7 81
10 G 0.5 8.6 116
12 G 0.5 8.9 131
14 G 0.5 9.5 153
18 G 0.5 10.5 188
21 G 0.5 11.7 221
25 G 0.5 12.4 261
30 G 0.5 13.3 304
35 G 0.5 14.5 256
40 G 0.5 15.4 400
52 G 0.5 17.3 517
61 G 0.5 18.5 603
65 G 0.5 312 644
80 G 0.5 21.1 780
100 G 0.5 23.6 975



2 x 0.75 5.4 45
3 G 0.75 5.7 55
3 x 0.75 5.7 55
4 G 0.75 6.2 66
4 x 0.75 6.2 66
5 G 0.75 6.7 79
5 x 0.75 6.7 79
7 G 0.75 7.3 101
7 x 0.75 7.3 101
9 G 0.75 9.4 137
10 G 0.75 9.6 150
12 G 0.75 9.9 171
12 x 0.75 9.9 171
15 G 0.75 10.9 209
16 G 0.75 11.1 220
18 G 0.75 11.7 244
21 G 0.75 13.0 286
25 G 0.75 13.8 337
26 G 0.75 14.2 350
34 G 0.75 15.9 448
41 G 0.75 17.4 538
50 G 0.75 19.2 648
51 G 0.75 19.2 646
61 G 0.75 20.5 779
65 G 0.75 21.8 832
80 G 0.75 23.6 1019
100 G 0.75 26.4 1271



2 x 1.0 5.7 53
3 G 1.0 6.0 65
3 x 1.0 6.0 65
4 G 1.0 6.5 79
4 x 1.0 6.5 79
5 G 1.0 7.1 94
5 x 1.0 7.1 94
6 G 1.0 8.0 113
7 G 1.0 8.0 126
7 x 1.0 8.0 126
8 G 1.0 9.5 149
9 G 1.0 10.0 164
10 G 1.0 10.2 180
12 G 1.0 10.5 205
12 x 1.0 10.5 205
14 G 1.0 11.2 238
16 G 1.0 11.8 266
18 G 1.0 12.7 300
18 x 1.0 12.7 300
20 G 1.0 13.4 330
20 x 1.0 13.4 330
25 G 1.0 14.7 408
26 G 1.0 15.1 424
34 G 1.0 17.1 551
36 G 1.0 17.4 578
40 G 1.0 18.4 638
41 G 1.0 18.8 661
50 G 1.0 20.6 797
56 G 1.0 21.4 888
61 G 1.0 22.1 958
65 G 1.0 23.6 1033
80 G 1.0 25.3 1251
100 G 1.0 28.3 1560



2 x 1.5 6.3 68
3 G 1.5 6.7 84
3 x 1.5 6.7 84
4 G 1.5 7.2 104
4 x 1.5 7.2 104
5 G 1.5 8.1 128
5 x 1.5 8.1 128
7 G 1.5 8.9 166
7 x 1.5 8.9 166
8 G 1.5 10.6 197
9 G 1.5 11.4 221
10 G 1.5 11.6 243
11 G 1.5 11.6 258
12 G 1.5 12.0 279
12 x 1.5 12.0 279
14 G 1.5 12.7 323
16 G 1.5 13.4 361
18 G 1.5 14.4 407
21 G 1.5 15.7 469
25 G 1.5 16.9 560
26 G 1.5 17.3 582
32 G 1.5 18.7 704
34 G 1.5 19.4 746
41 G 1.5 21.3 895
50 G 1.5 23.5 1089
51 G 1.5 23.5 1061
61 G 1.5 25.2 1309
65 G 1.5 26.7 1398
80 G 1.5 28.8 1708



2 x 2.5 7.5 101
3 G 2.5 8.1 132
4 G 2.5 8.9 163
5 G 2.5 10.0 200
7 G 2.5 11.1 267
12 G 2.5 14.8 445
14 G 2.5 15.8 515
18 G 2.5 17.8 648
25 G 2.5 20.8 890
34 G 2.5 24.4 1208
50 G 2.5 29.4 1754



2 G 4.0

3 G 4.0 9.9 201
4 G 4.0 10.8 249
5 G 4.0 12.1 305
7 G 4.0 13.4 407
11 G 4.0 17.6 634
12 G 4.0 18.1 660



3 G 6.0 11.7 289
4 G 6.0 13.0 365
5 G 6.0 14.5 447
7 G 6.0 16.0 600



3 G 10.0 14.6 466
4 G 10.0 16.2 590
5 G 10.0 18.1 722
7 G 10.0 20.0 968



4 G 16.0 18.8 1087
5 G 16.0 21.2 1370
7 G 16.0 23.4 1779



4 G 25.0 23.5 1582
5 G 25.0 26.4 1998



4 G 35.0 26.4 2106
5 G 35.0 29.6 2635
