SY Steel Wire Braid Cable

SY Steel Wire Braid Cable

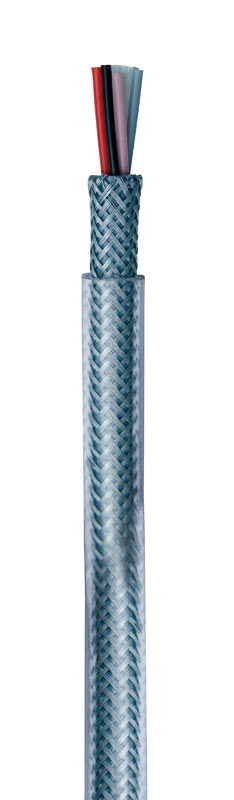

SY Cable with Steel Wire Braid



Cable Applications

Power control cable with galvanised steel wire braiding. Suitable for fixed installation or flexible applications. Used as measuring, checking and control cable in machine tool manufacturing, plant engineering, air conditioning systems, office equipment, data processing systems and on assembly lines and product lines. Can also be used as energy or connecting cable in dry and moist rooms to meet safety requirements. Due to the galvanised steel wire braiding, these cables can even be used under adverse operating conditions or when exposed to high mechanical strain.

Technical Information

Conductor: Plain annealed copper conductor to IEC 60228 class 5
Earth Conductor: Green/yellow in the outer layer
Insulation: Black with continuous white figure imprint
Bedding: PVC
Overall Screen: Made of tinned steel wire braid
Outer Sheath: Transparent PVC
Voltage: 300/500V
Temperature Range: Flexible: -5°C to + 70°C

Static: -40°C to + 70°C
Bending Radius: Flexing: 20 x Ø

Static: 6 x Ø

Order Now

Cores x Size mm2 Nominal overall diameter mm Weight kg/mm
2 x 0.5 8.3 91
3 x 0.5 8.6 99
4 x 0.5 9.1 113
5 x 0.5 9.7 129
7 x 0.5 10.3 150
12 x 0.5 12.4 214
18 x 0.5 14.3 298
25 x 0.5 16.8 400
30 x 0.5 17.7 454
35 x 0.5 19.9 585
41 x 0.5 21.5 671
50 x 0.5 21.9 694
60 x 0.5 24.2 895
2 x 0.75 9.0 85
3 x 0.75 9.3 116
4 x 0.75 9.8 133
5 x 0.75 10.5 155
7 x 0.75 11.2 182
12 x 0.75 13.7 266
18 x 0.75 16.2 388
25 x 0.75 19.1 521
30 x 0.75 19.6 572
35 x 0.75 21.4 684
50 x 0.75 26.4 1,050
60 x 0.75 24.8 909
2 x 1.0 9.3 101
3 x 1.0 9.5 126
4 x 1.0 10.1 146
5 x 1.0 10.8 171
7 x 1.0 11.5 203
12 x 1.0 14.3 314
18 x 1.0 16.7 441
25 x 1.0 19.7 594
30 x 1.0 20.3 658
35 x 1.0 22.1 786
50 x 1.0 25.9 1,070
60 x 1.0 27.7 1,240
2 x 1.5 9.8 114
3 x 1.5 10.1 145
4 x 1.5 10.8 171
5 x 1.5 11.6 202
7 x 1.5 12.4 242
12 x 1.5 15.9 394
18 x 1.5 18.6 553
25 x 1.5 21.9 746
30 x 1.5 23.0 850
35 x 1.5 24.6 990
50 x 1.5 29.2 1,380
60 x 1.5 30.8 1,570
2 x 2.5 11.0 143
3 x 2.5 11.4 193
4 x 2.5 12.3 232
5 x 2.5 13.2 277
7 x 2.5 14.4 353
12 x 2.5 18.8 575
18 x 2.5 22.0 818
25 x 2.5 26.2 1,130
30 x 2.5 27.5 1,290
35 x 2.5 29.8 1,540
50 x 2.5 34.7 2,060
60 x 2.5 36.6 2,350
2 x 4.0 13.8 240
3 x 4.0 14.8 312
4 x 4.0 15.8 384
5 x 4.0 17.5 478
7 x 4.0 18.8 587
2 x 6.0 15.4 316
3 x 6.0 16.2 407
4 x 6.0 17.9 508
5 x 6.0 19.4 617
7 x 6.0 21.4 789
2 x 10 18.9 467
3 x 10 20.1 621
4 x 10 21.9 779
5 x 10 24.3 978
7 x 10 26.5 1,250
3 x 16 23.8 857
4 x 16 25.5 1,040
5 x 16 28.6 1,300
3 x 25 25.5 1,110
4 x 25 27.2 1,350
5 x 25 31.3 1,740
5 x 35 36 3,185
4 x 50 3409 2,689
4 x 70 44.8 3,583
4 x 95 47.8 4,935
