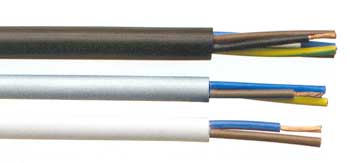

318B Cable




318B LSZH Control Cable

318B Cable Applications

The 318B is used for panel, conduit and general wiring applications where there is a requirement for flexibility and in the event of fire there is a need to minimise the risk from smoke and toxic fumes but circuit integrity is not required.

318B Features

The 318B cable emits less than 0.5% Hydrogen Chloride (HCI) in accordance with BS 6425 Part 1 and IEC 60754 Part 1

Cables Types

  • 3182B : 2 core round profile
  • 3183B : 3 core round profile
  • 3184B : 4 core round profile
  • 3185B : 5 core round profile

318B Cable Make Up

  • Conductors : Flexible Class 5 plain annealed stranded copper to BS6360
  • Insulation : Low Smoke halogen Free (LSHF)
  • Sheath : Low smoke Halogen Free (LSHF) Compound Type LTS1 to BS 7655
  • Sheath Colours : Available in white, grey or black

318B Core Identification

  • 2-Core : Brown and Blue
  • 3 Core : Brown, Blue and Green / Yellow
  • 4 Core : Brown, blue, black and green / yellow
  • 5 Core : Brown, Blue, Black, Green / Yellow and Black

318B Technical Data

Working voltage : 300 / 500V
Operating Temperature Range : + 5°C + 90°C flexing

-20°C to 90°C fixed
Minimum Bending Radius : 15 x overall diameter for flexing applications

7.5 x overall diameter for fixed applications

Nominal Cross Sectional Area of Conductor (mm2) Nominal No. & Diameter of Strands (mm) Nominal Overall Diameter (mm) Conductor Resistance @ 20°c (ohms / km) Approx Weight

3182B 2 Core





0.75 24 / 0.20 6.50 26.00 53
1.00 32 / 0.20 6.80 19.50 61
1.50 30 / 0.25 7.80 13.30 73

3183B 3 Core





0.75 24 / 0.20 6.70 26.00 63
1.00 32 / 0.20 7.05 19.50 72
1.50 30 / 0.25 8.25 13.30 101
2.50 50 / 0.25 10.20 7.98 153
4.00 56 / 0.30 11.25 4.653 220

3184B - 4 Core





0.75 24 / 0.20 7.60 26.00 80
1.00 32 / 0.20 8.15 19.50 84
1.50 30 / 0.25 9.60 13.30 131
2.50 50 / 0.25 11.30 7.98 183

3185B - 5 Core





0.75 24 / 0.20 8.60 26.00 104
1.00 32 / 0.20 9.40 19.50 109
1.50 30 / 0.25 10.60 13.30 181
2.50 50 / 0.25 12.50 7.725 250
