LiYCY Paired Cable

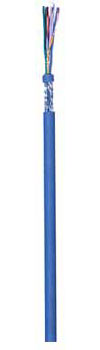

LiYCY Paired - Flexible Data Transmission Cable

LiYCY Paired - Flexible Data Transmission Cable

These cables are employed for pulse operated or AC circuits in control, measuring and signalling technology as well as in data processing and office technology. Twisting in pairs provides optimum crosstalk attainability.

  • Fine strands of bare copper conductor
  • Stranding acc. to VDE 0295, class 5
  • PVC core insulation
  • Core marking acc. to DIN 47100
  • 2 cores twisted in pairs
  • Pairs twisted in layers
  • Film wrapping
  • overall screen of tinned copper wires
  • PVC outer sheath grey, RAL 7001 or 7032
Temperature range flexing : - 5oC to + 70oC :

static: -30oC to +70oC
Working Voltage: 0.14 - 0.25mm2 - 250V

0.34 - 0.75mm2 - 300V

from 1.00mm2 - 500V
Test Voltage Core / Core: 0.14 - 0.34 mm2 - 1000V from 0.5mm2 - 2000V

Core / Shield: 0.14 - 0.34mm2 - 500V from 0.50mm2 - 1000V

Cable Ordering

No. of cores and mm2 per conductor Approx outer diameter in mm Approx. weight kg / km
2 x 2 x 0.14 5.7 39
3 x 2 x 0.14 5.8 48
4 x 2 x 0.14 6.2 54
6 x 2 x 0.14 7.1 85
8 x 2 x 0.14 8.2 97
10 x 2 x 0.14 8.7 110
12 x 2 x 0.14 8.9 142
16 x 2 x 0.14 10.2 154
20 x 2 x 0.14 11.3 184
25 x 2 x 0.14 12.5 238
30 x 2 x 0.14 13.1 270
2 x 2 x 0.25 7.0 54
3 x 2 x 0.25 7.1 66
4 x 2 x 0.25 7.6 81
6 x 2 x 0.25 8.5 115
8 x 2 x 0.25 10.3 130
10 x 2 x 0.25 11.0 158
12 x 2 x 0.25 11.3 190
16 x 2 x 0.25 12.5 238
25 x 2 x 0.25 16.1 344
2 x 2 x 0.5 8.6 93
3 x 2 x 0.5 8.7 129
4 x 2 x 0.5 9.4 146
6 x 2 x 0.5 11.1 198
8 x 2 x 0.5 13.1 259
12 x 2 x 0.5 14.9 354
16 x 2 x 0.5 16.5 459
2 x 2 x 0.75 9.3 106
3 x 2 x 0.75 9.4 140
4 x 2 x 0.75 10.7 179
5 x 2 x 0.75 11.1 215
6 x 2 x 0.75 12.1 246
8 x 2 x 0.75 14.7 305
12 x 2 x 0.75 16.2 456
2 x 2 x 1.0 10.3 142
3 x 2 x 1.0 10.4 173
4 x 2 x 1.0 11.3 212
5 x 2 x 1.0 11.8 266
