Important – As of the end of January 2017, Danfoss will no longer be supplying the VLT2800. The FC280 is the direct replacement and is EU RoHS 2.0 compliant.

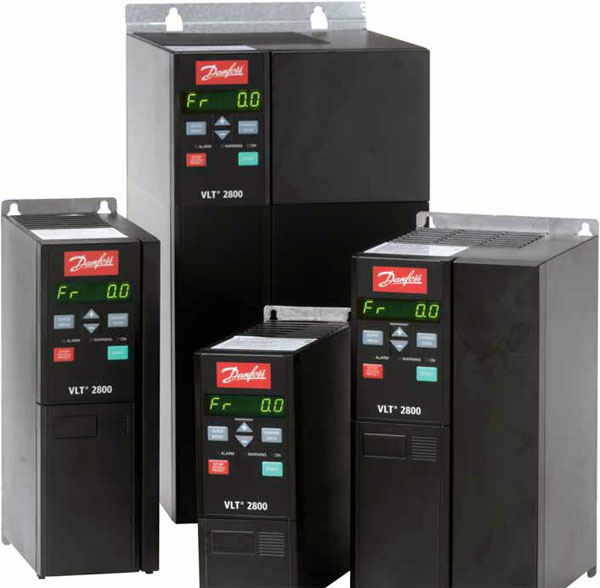

The Danfoss VLT® 2800 series are among the smallest multi-purpose drives in the market, designed for space saving side-by-side mounting. Choose to have it with Motor Coils, RFI filter, LC+1B filters.
The VLT® 2800 is designed as an advanced and versatile drive, yet easy to operate. Quick menu includes all basic parameters needed for commissioning the drive, offering fast installation and service.
Product Range
0.55 – 18.5 kW : (3 phase 380 – 480 V ± 10 %; 50/60 Hz)
0.37 – 1.5 kW : (Combined 1 and 3 phase 200 – 240 V ± 10 %; 50/60 Hz)
2.2 – 3.7 kW : (3 phase 200 – 240 V ± 10 %; 50/60 Hz)
Variable output frequency between 0 and 1000 Hz
Click for the Danfoss VLT 2800 PDF
Product safety
- 100% short-circuit proof
- 100% earth fault protection
- Mains transient protection
- Switching on input
- Switching on output
- Galvanic isolation
- Designed according to EN 50178
Speed compensation precise stop
- Better process control
- Same stopping distance independent of initial motor speed
Precise stop
- Interrupt controlled stop
- Higher process repeatability
- Well defined stopping
Counter stop
- Accurate positioning
- High frequency input (65 kHz)
- 24 V incremental encoder input
- AB encoder input as option
Automatic motor tuning
- Perfect match between motor and drive
- Measures the stator resistance (RS)
- Better shaft performance
- Measurements done without applying torque
- Checks for missing motor phases
Flexible mounting
- Horizontal mounting
- Vertical mounting
- True side-by-side mounting
- No derating
- Also applies to modules
- Temperature controlled fan
Cold plate technology
- Reduced heating in cabinet
- Denser installation
- Higher enclosure class cabinets
- Protection against:
- Dust
- Dirt
- Humidity
- Heat dissipates through the back of the drive
Communication
- DeviceNet
- ModBus RTU
- Profibus DP, optional
- Fieldbus systems
- Profibus DP 3 or 12 Mbit/s
- Up to 127 nodes per installation
- Homepage: www.profibus.com
- DeviceNet Up to 500 kbit/s
- Up to 64 nodes per installation
EMC filter and DC coils
- Compliance with EMC Standards.
- Built-in EN 55011 1A filter, 25 m screened cable.
- No EMC disturbance.
- EN 55011 1B filter available as module.
- IT mains compatible version with RFI filter (up to 4 kW).
- VLT 2880-2882 with RFI-switch.
Braking facilities
- DC-braking – approx. 20% braking torque
- AC-braking – approx. 20% braking torque
- Dynamic braking
- – Brake chopper built-in
- – 160% braking torque
- LCP2 Alpha numeric display, with copy function
- MCT10 software
Danfoss VLT 2800 Series Ordering Options
| VLT Type | Typical Shaft Output (kW) | Cont. Output current (Amps) @ 200 / 240V | Input 50/60Hz IP20 | Output 50/60Hz IP20 |
| VLT 2803 | 0.37 | 2.2 | 240V, 1PH | 240V, 3Ph |
| VLT 2805 | 0.55 | 3.2 | 240V, 1Ph | 240V, 3Ph |
| VLT 2807 | 0.75 | 4.2 | 240V, 1Ph | 240V, 3Ph |
| VLT 2811 | 1.10 | 6.0 | 240V, 1Ph | 240V, 3Ph |
| VLT 2815 | 1.50 | 6.8 | 240V, 1Ph | 240V, 3Ph |
| VLT Type | Typical Shaft Output (kW) | Cont. Output current (Amps) @ 380 / 415V | Input 50/60Hz IP20 | Output 50/60Hz IP20 |
| VLT 2805 | 0.55 | 1.7 | 400V, 3Ph | 400V, 3Ph |
| VLT 2807 | 0.75 | 2.1 | 400V, 3Ph | 400V, 3Ph |
| VLT 2811 | 1.10 | 3.0 | 400V, 3Ph | 400V, 3Ph |
| VLT 2815 | 1.50 | 3.7 | 400V, 3Ph | 400V, 3Ph |
| VLT 2822 | 2.20 | 5.2 | 400V, 3Ph | 400V, 3Ph |
| VLT 2830 | 3.00 | 7.0 | 400V, 3Ph | 400V, 3Ph |
| VLT 2840 | 4.00 | 9.1 | 400V, 3Ph | 400V, 3Ph |
| VLT 2855 | 5.50 | 12.0 | 400V, 3Ph | 400V, 3Ph |
| VLT 2875 | 7.50 | 16.0 | 400V, 3Ph | 400V, 3Ph |
| VLT 2880 | 11.00 | 24.0 | 400V, 3Ph | 400V, 3Ph |
| VLT 2881 | 15.00 | 32.0 | 400V, 3Ph | 400V, 3Ph |
| VLT 2882 | 18.50 | 37.5 | 400V, 3Ph | 400V, 3Ph |
VLT 2800 General Options
| Part Number | Description | Used on VLT |
| 175N0131 | LCP2 Control Unit (IP.65) | All |
| 175Z0850 | Remote mounting kit for LCP (includes 3m cable) | All |
| 175Z0929 | Cable for LCP – 3 m (Also included in remote kit) | All |
| 175N0128 | L O P (Local Operating Pad) – includes cable | All |
| 195N3113 | Cable for ‘DeviceNet’ Connection | All |
| 195N1900 |
NEMA 1 Terminal Cover – Used on: VLT 2803 – VLT 2815 (200 – 240V) |
Call |
| 195N1901 |
NEMA 1 Terminal Cover – Used on: VLT 2822 – (200 – 240V) |
Call |
| 195N1902 |
NEMA 1 Terminal Cover – Used on: VLT 2840 – (200 – 240V) |
Call |
| 195N3110 | Motor coil module | All |
| 195N3103 | 1B RFI Filter Module | All |
| 195N3100 | 1B RFI / LC Filter Module – 4 amps VLT 2803 – VLT 2805 (200 – 240V) VLT 2805 – VLT 2815 (380 – 480V) |
Call |
| 195N3101 | 1B RFI / LC Filter Module – 9.1 amps VLT 2807 – VLT 2815 (200 – 240V) VLT 2822 – VTLT 2840 (380 – 480V) |
Call |
