Medium NTMCGCWÖU Mining Cable

Medium NTMCGCWÖU Mining Cable

Flexible single-core 3.6/6 kV up to 12/24 kV

Single-core cables used for connection of mobile transformer substations in the mining industry.

Cable Features

  • Small cable weight
  • small outer diameter
  • MSHA and WVG approvals on request

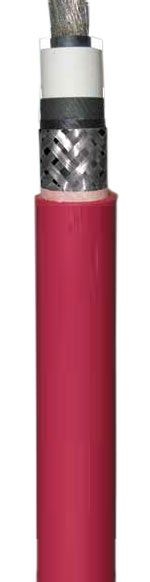

Cable Construction

Conductor: Flexible tinned copper conductor Cl. 5,
acc to IEC 60228, DIN VDE 0295
Conductor Screen: semi-conducting rubber compound
Insulation: rubber EPR type 3G13
Colour cores: natural color with black semi-contuctive compound
Screen: copper wire braiding
Outer sheath: red, EPR compound 5GM5



Technical Details

Temperature range:
  Fixed installation: – 40°C + 80°C
  Flexible installation: – 25°C + 60°C
Temperature at conductor:
  in service: + 90°C
  in short circuit: + 200°C
Nominal voltage: Uo/U 3.6/6 kV to 12/20 kV
Test voltage: 11000 to 29000 V
Torsional stress: ± 25°/m
Tensile load: up to 15 N/mm2
Weather resistance: outdoors use
resistant to ozone, moisture, water
UV resistant in the black version

Ordering Information

No. of cores x cross-section n x mm2 Outer-Øca. mm.
± 10%
Copper weight kg/km Cable weight approx. kg/km Tensile strength N AWG no.*)

3.6/6 (7.2) kV NTMCGWÖU

1×16/16 KON 20.4 601 240 6
1×25/16 KON 22.4 825 375 4
1×35/16 KON 23.6 882 525 2
1×50/16KON 26.1 1104 750 1
1×70/16KON 28 1346 1050 2/0
1×95/16KON 30 1614 1425 3/0
1×120/16KON 32.7 1983 1800 4/0
1×150/25KON 34.4 2300 2250 250 MCM
1×185/25KON 35.8 2642 2775 350 MCM
1×240/25KON 40.1 3371 3600 10

6/10 (12) kV NTMCGCWÖU

1×16/16 KON 21.4 644 240 6
1×25/16 KON 23.2 791 375 4
1×35/16 KON 24.4 1050 525 2
1×50/16 KON 26.9 1153 750 1
1×70/16 KON 29.5 1399 1050 2/0
1×95/16 KON 30.8 1910 1425 3/0
1×120/16 KON 33.5 2044 1800 4/0
1×150/25 KON 35.2 2364 2250 250 MCM
1×185/25 KON 36.6 2709 2775 350 MCM
1×240/25 KON 40.9 3446 3600 10

8.7/15 (18) kV NTMCGWÖU

1×16/16 KON 23.6 760 240 6
1×25/16 KON 26.3 954 375 4
1×35/16 KON 27.9 1101 525 2
1×50/16 KON 29.5 1304 750 1
1×70/16 KON 32 1623 1050 2/0
1×95/16 KON 34 1912 1425 3/0
1×120/16 KON 35.7 2219 1800 4/0
1×150/25 KON 38.4 2637 2250 250 MCM
1×185/25 KON 39.7 2995 2775 350 MCM
1×240/25 KON 42 3658 3600 10

12/20 (24) kV NTMCGCWÖU

1×16/16 KON 27.5 971 240 6
1×25/16 KON 28.7 1090 375 4
1×35/16 KON 29.9 1236 525 2
1×50/16 KON 32.5 1680 750 1
1×70/16 KON 34 1776 1050 2/0
1×95/16 KON 36 2170 1425 3/0
1×120/16 KON 38.7 2481 1800 4/0
1×150/25 KON 40.4 3020 2250 250 MCM
1×185/25 KON 41.8 3182 2775 350 MCM
1×240/25 KON 45.1 3870 3600 10
