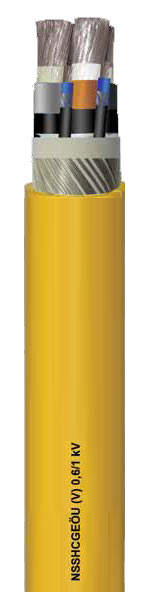

NSSHCGEÖU(V) 0.6/1 kV Mining Cable

NSSHCGEÖU(V) 0.6/1 kV Mining Cable

Cable Features

  • Ozone and moisture resistance
  • very good for monitoring the cables with
  • appropriate monitoring equipement
  • outdoor/indoor use
  • coal-mining use
  • used in cable chains
  • MSHA GOST-R and WUG approvals on request

Cable Construction

Conductor: Flexible tinned copper conductor Cl. 5,
acc to IEC 60228, DIN VDE 0295
Insulation: rubber EPR type 3G13
Earth conductor: concentric spiral of copper and steel wires
between the inner and the outer sheath
Colour cores: acc. to DIN VDE 0293-308, HD 308 S2
3 phase cores: brown-black-grey
Monitoring Cores: spiral tinned copper wires around control cores
covered with semiconductive tape
Stranding: three or main cores placed,
with double-concentric control and monitoring
conductor elements in the outer intserstices
Inner sheath: EPR compound GM1b
Outer sheath: yellow PCP compound 5GM5



Technical Details

Temperature range:
Fixed installation: – 40°C + 80°C
Flexible installation: – 25°C + 80°C
Temperature on conductor:
  In service: + 90°C
  In short circuit: + 200°C
Nominal voltage: Uo/U 0.6/1 kV
Test voltage: 3000 V
Operating voltage: A.C. Uo/U = 0.7/1.2 kV max.
D.C. Uo/U = 0.9/1.8 kV max.
Tensile strength static: 15 N/mm2
(please check min. bending radius applications)
Fire resistance: DIN VDE 0482, EN/IEC 60332-1-2
Oil resistance: DIN VDE 0473, part 811-2-1, par. 10,
EN 60811-2-1, IEC EN 60811-1-2

Ordering Information

No. of cores
x cross section n x mm2
Outer- Ø
ca. mm ± 10%
Copper weight
kg/km
Cable weight approx.
kg/km
Tensile strength
N
AWG
no.*)
3×25/16KON+3x(1.5ST KÖN/1.5 UL KON) 38 2850 1125 4
3×35/16KON+3x(1.5ST KÖN/1.5 UL KON) 43 3070 1575 2
3×50/35KON+3x(1.5ST KÖN/1.5 UL KON) 46 4010 2250 1
3×70/35KON+3x(1.5ST KÖN/1.5 UL KON) 53 4970 3150 2/0
3×95/50KON+3x(1.5ST KÖN/1.5 UL KON) 58 6580 4275 3/0
3×120/70KON+3x(1.5ST KÖN/1.5 UL KON) 61 7600 5400 4/0
3×150/70KON+3x(1.5ST KÖN/1.5 UL KON) 65 9350 6750 250 MCM
