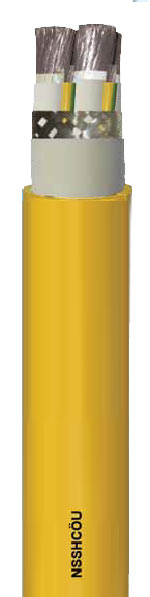

NSSHCÖU Mining Cable

NSSHCÖU Mining Cable

This cable is suitable for frequency converter controlled drives in the mining and tunneling industry.

Cable Construction

Conductor: Flexible tinned copper conductor Cl. 5,
acc to IEC 60228, DIN VDE 0295
Insulation: rubber EPR type 3G13 acc. to DIN VDE 0207
Colour cores: 3 conductors + 3 earth conductors:
divided in 3 inetrstices
Stranding: power cores and protective
earth conductors
Inner sheath: EPR compound Gm1b
acc. to DIN VDE 0207, part 21
Outer sheath: yellow, PCP compound 5GM5



Technical Details

Temperature range:
Fixed installation: – 40°C + 80°C
Flexible installation: – 25°C + 80°C
Temperature on conductor:
  In service: + 90°C
  In short circuit: + 250°C
Nominal voltage: Uo/U 0,6/1 kV
Test voltage: 3000 V
Max. operating voltage: A.C. Uo/U = 0,7/1,2 kVD.C. Uo/U = 0,9/1,8 kV
Tensile strength static: 15 N/mm2
Fire resistance: VDE 0482, part 332-1-2, EN/IEC 60332-1-2
Oil resistance: DIN VDE 0473, part 811-2-1, EN/IEC 60811-2-1
Weather Resistance: outdoor use and indoors,resistant to ozone, moisture and water
Approvals: GOST-R,WUG and other on request

Ordering Information

No. of cores x cross section
n x
Outer-Ø ca. mm Copper weight Cable weight approx. Tensile strength AWG
mm2 ± 10% kg/km kg/km N no.*)
3×16+3G2,5 26,2 1200 720 6
3×25+3G4 30 1700 1125 4
3×35+3G16/3 32,5 2200 1575 2
3×50+3G25/3 38 2800 2250 1
3×70+3G35/3 43 3850 3150 2/0
3×95+3G50/3 47,5 4650 4275 3/0
3×120+3×70/3 51 5800 5400 4/0
3×150+3×70/3 58 7150 6750 250 MCM
3×185+3×95/3 62,5 8500 9200 350 MCM
3×240+3×120/3 68,5 10100 11500 450 MCM
